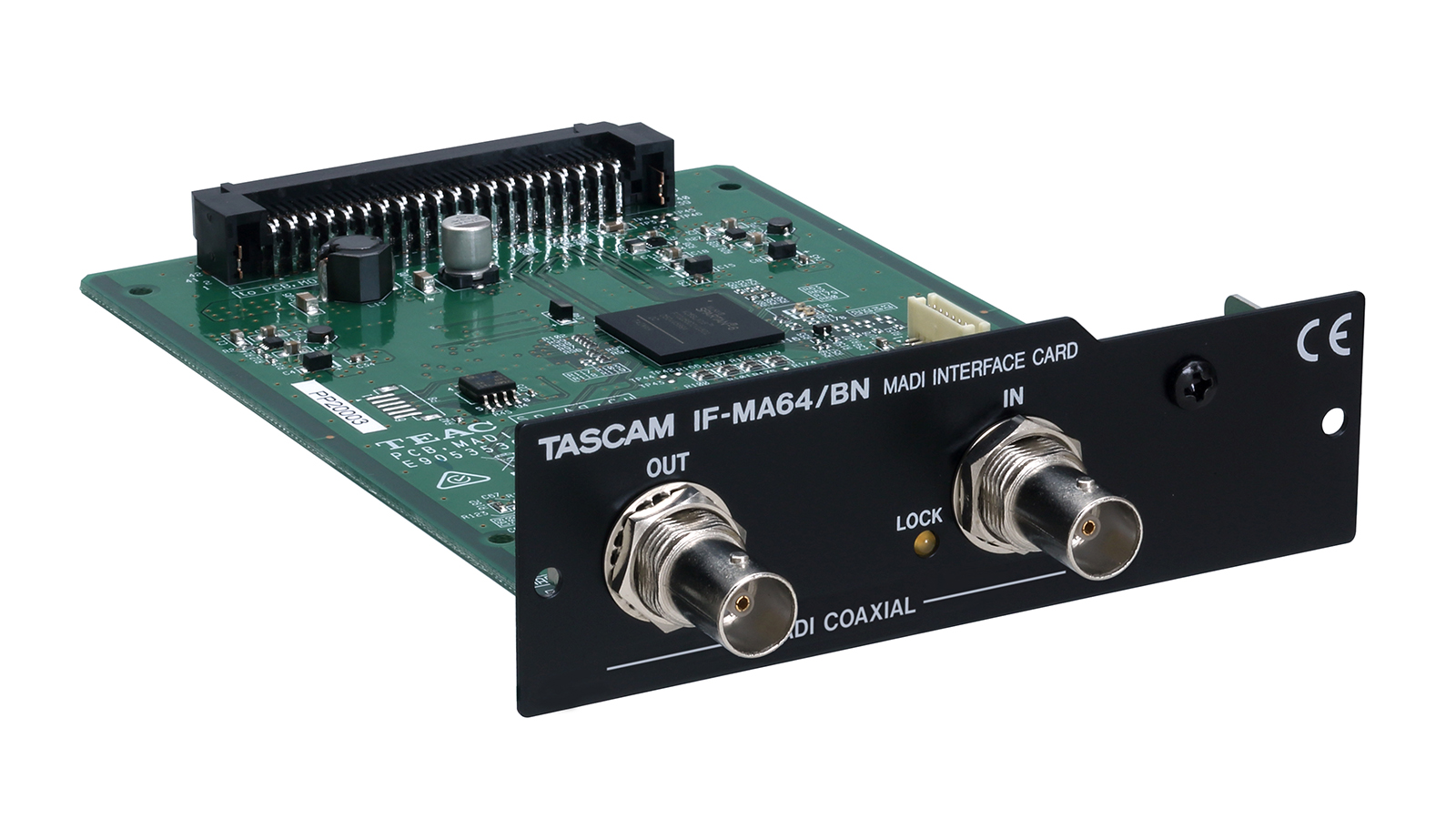

Tascam IF-MA64/BN 64-Channel MADI Coaxial Expansion Card

The IF-MA64/BN carries 64 channels of MADI in and out over 75 ohm coaxial BNC to AES10-2008. At 44.1 or 48 kHz it handles the full 56 or 64 channel frame; at 88.2 or 96 kHz it runs 28 or 32 channels in either 48k-frame or 96k-frame mode, so it interoperates with both conventions found on older and newer MADI gear.

It installs in the expansion slot of the DA-6400, DA-6400dp and Sonicview consoles and weighs 137 grams. Choose this coaxial-only version when the MADI run is short and inside one room; the IF-MA64/EX adds optical for longer or electrically isolated runs.
