SmallHD Cine 7 7-inch Camera Monitor

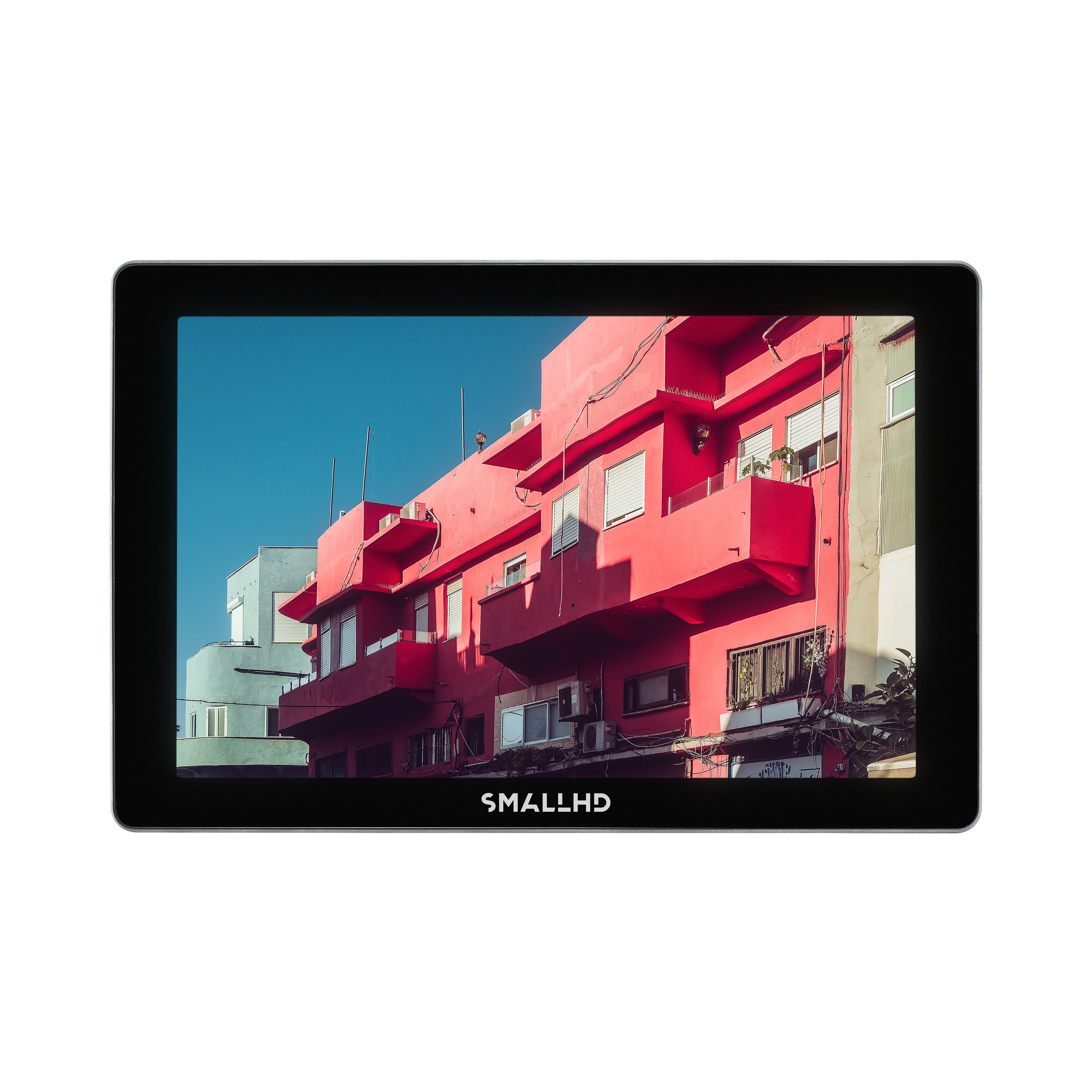

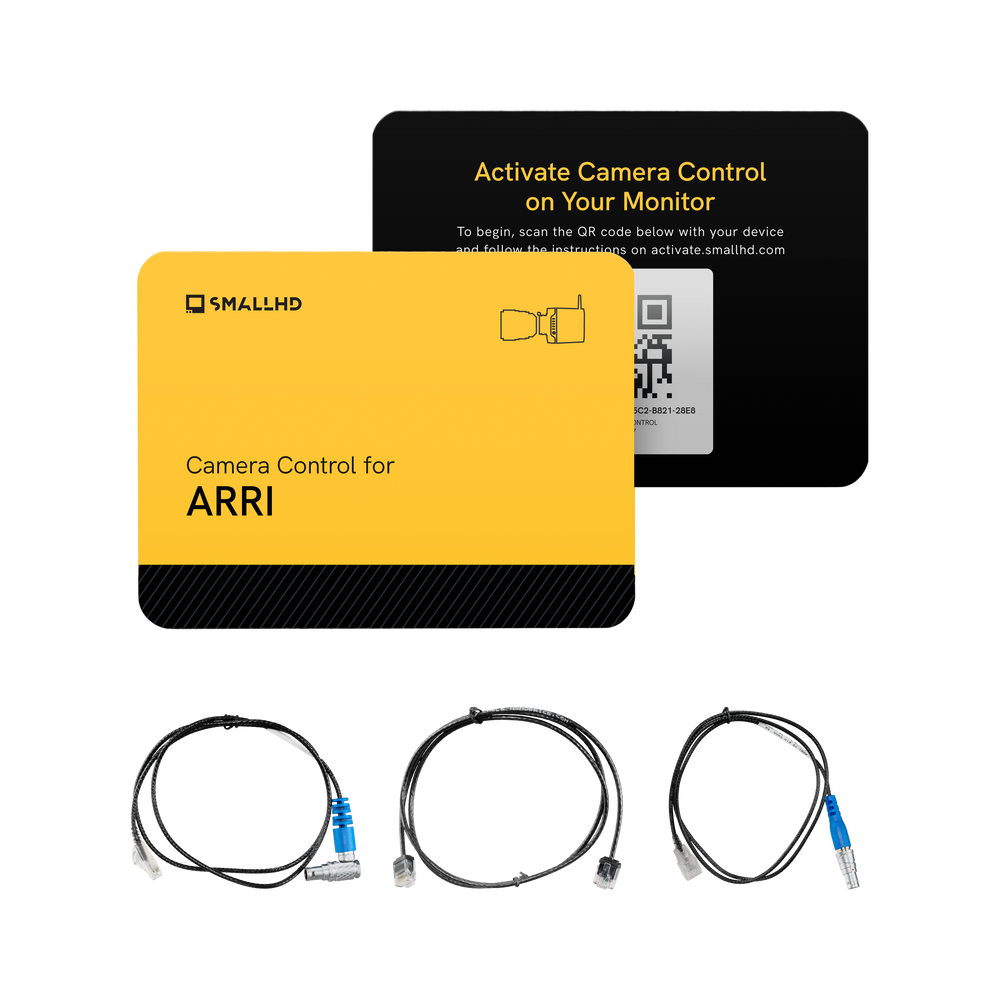

The Cine 7 is a 7-inch 1920x1200 IPS touchscreen that covers 100% of the DCI-P3 gamut with 10-bit processing and runs to 1800 nits, so it doubles as an accurate on-set reference and a daylight-usable directors monitor. Its headline feature is integrated camera control: with the matching kit it drives ARRI, RED, and Sony cinema cameras straight from the touchscreen.

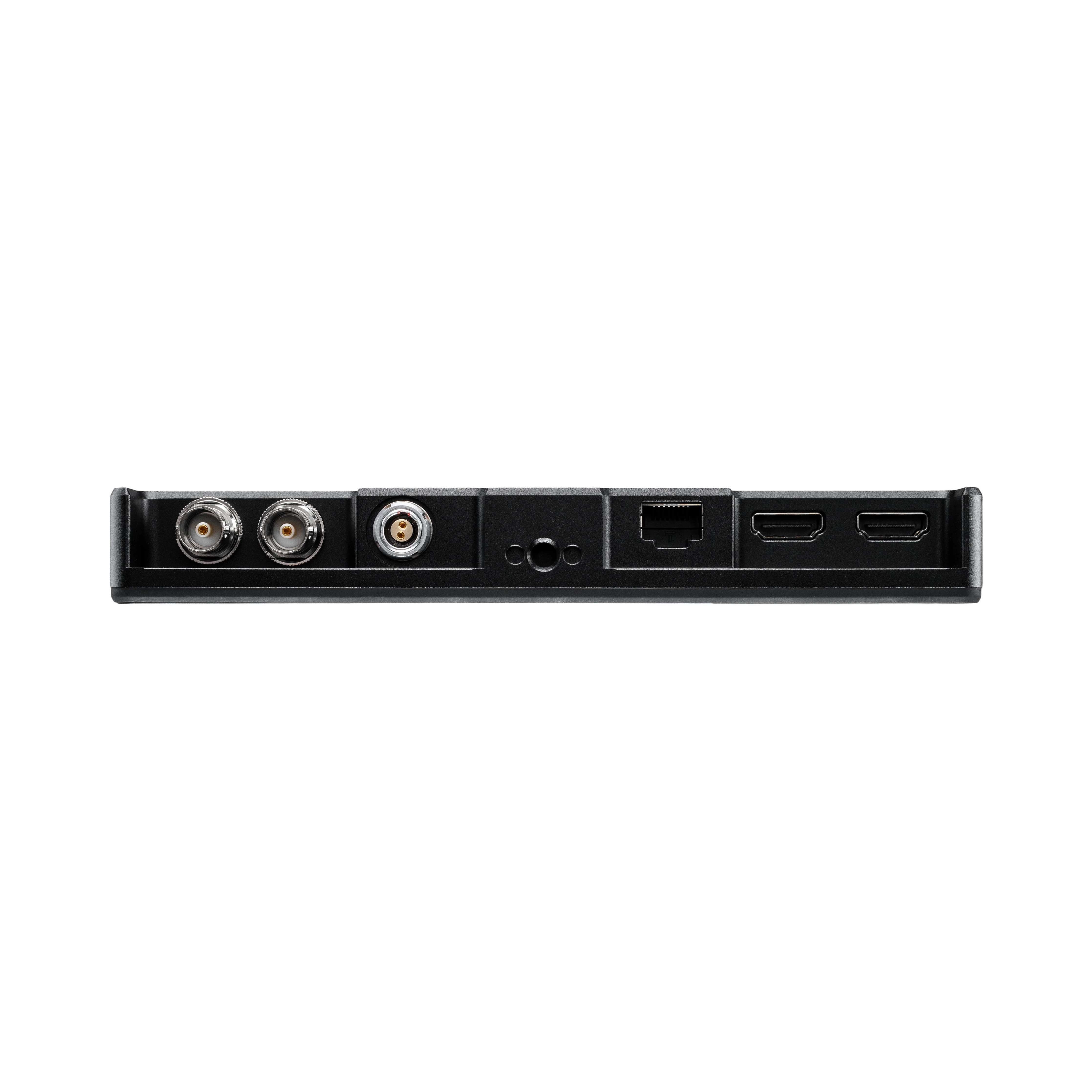

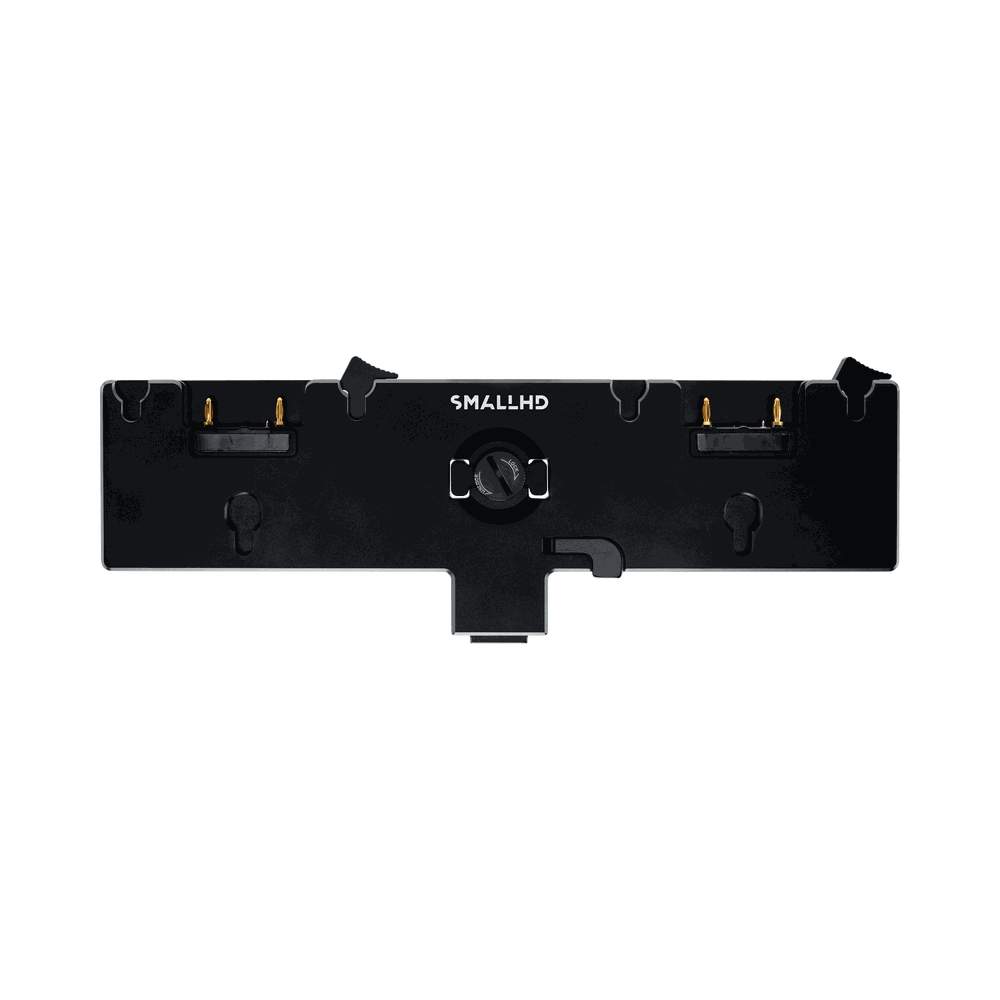

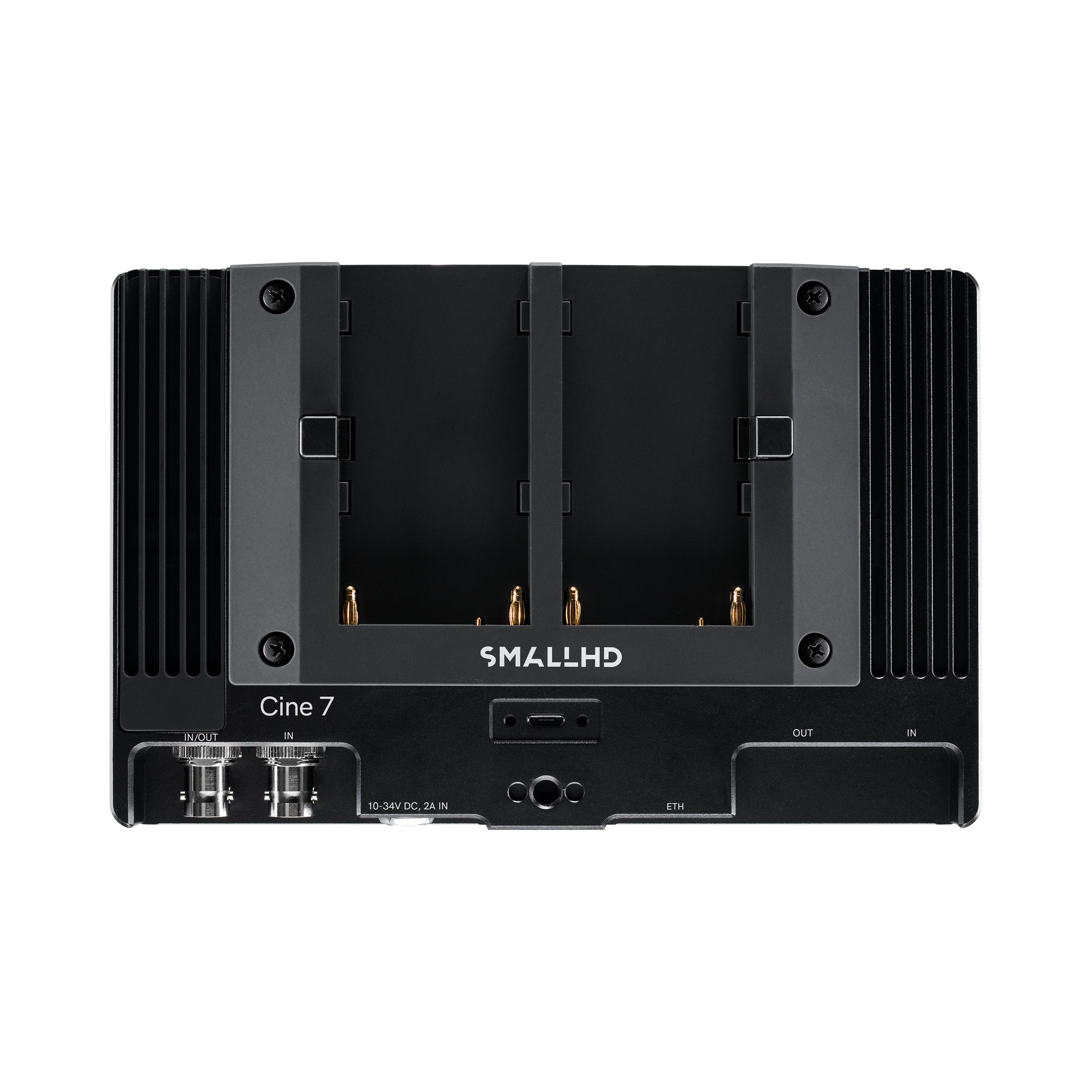

Inputs are one HDMI and two 3G-SDI, with the second SDI switchable to a loop out, plus HDMI and SDI outputs for feeding a village or a recorder. It ships with a Sony L-Series dual battery bracket and takes 10-34V DC over a 2-pin locking input; Gold Mount and V-Mount brackets are available separately. Choose the base monitor or a camera-control kit below.
| Display | 7-inch 1920 x 1200 IPS touchscreen |
|---|---|
| Brightness | 1800 nits |
| Colour | 100% DCI-P3, 10-bit processing |
| Video Inputs | 1x HDMI, 2x 3G-SDI (2nd doubles as loop out) |
| Video Outputs | 1x HDMI, 1x 3G-SDI in/out |
| Audio | 1/8-inch headphone jack |
| Power | 2-pin locking, 10-34V DC, 2A; Sony L-Series dual bracket included |
| Camera Control | ARRI, RED, Sony (with matching kit) |
