The VR-4HD is a complete HD studio in a compact and portable package that replaces several different pieces of complex A/ V equipment. Designed with single-person operation in mind, the VR-4HD enables easy switching and mixing of sound and video using advanced video and audio Digital Signal Processing (DSP) along with dedicated hardware controls faders, buttons and touch screen interface.
It beautifully integrates a digital audio mixer, video switcher, multi-viewer touch screen and USB video/audio streaming interface into a stand-alone device. This portable live HD production solution is ideal for schools, churches, council meetings, corporate events, sports, training sessions, or any other live event.
All-in-one portable production solution

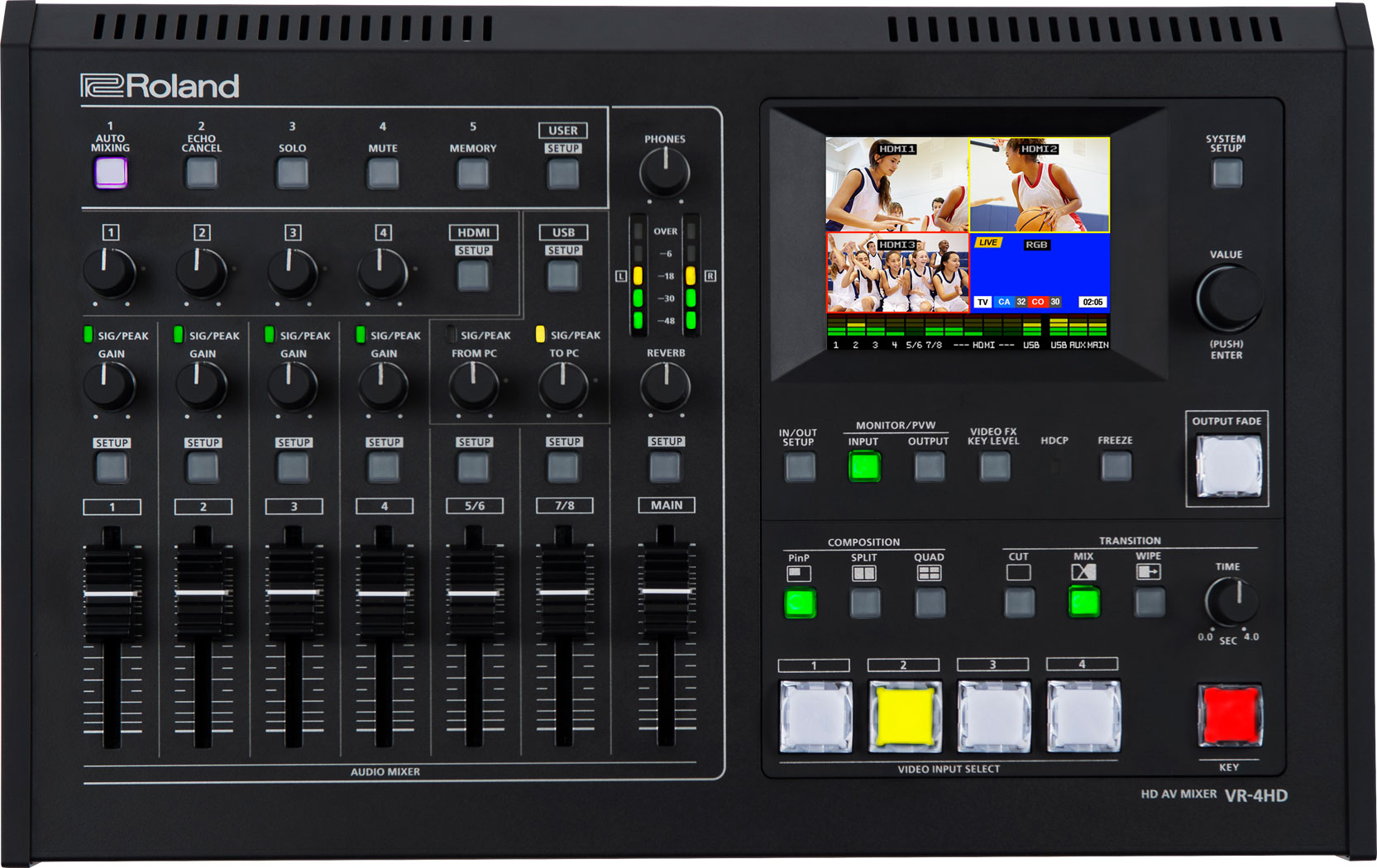

Easy to use with dedicated hardware controls and audio faders and integrated touch screen preview monitor
6 input, 4-Channel Video Switcher
Supports HDMI*, RGB/Component, and Composite Video Inputs Up to 1080p
Built-in Scaler via CH4
18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from HDMI inputs
Embedding and de-embedding of audio with delay settings
Auto mixing and Echo Canceling function
Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
Built-in touch quad-input multi-viewer with audio metering
External Multi-View Output through HDMI
USB3.0 Video/Audio Output up to 1080/30p (uncompressed) and Audio Loopback Feature
Software control using VR-4HD RCS application for Mac and PC and remote control via USB connection
