RDL D-RC2ST

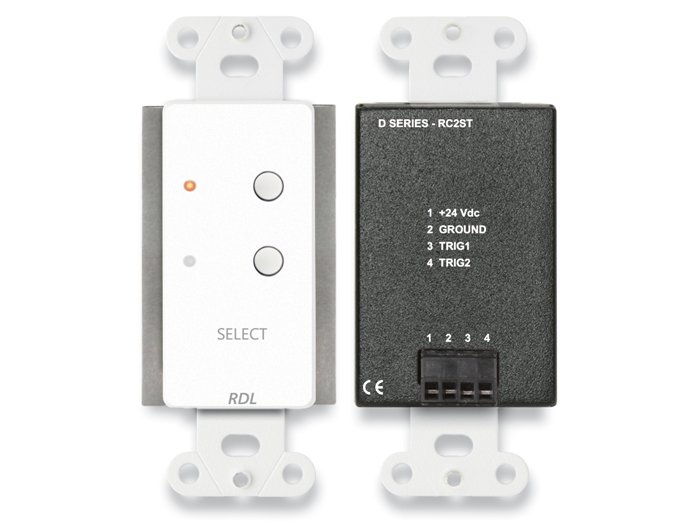

The RDL D-RC2ST is a two-channel remote control for RDL STICK-ON series modules, letting a user pick between two sources or route audio to two destinations from a wall location. The front panel carries two pushbuttons with two associated LEDs that show which channel is selected. At power-up source 1 is active; pressing the other button de-selects source 1 and immediately selects source 2, giving a clean, unambiguous either-or choice with no overlap.

It is a simple, reliable way to hand basic source selection to an end user in a conference room, classroom, or paging setup without exposing the STICK-ON wiring behind it. In a typical install only one output terminal is needed for triggering, so a single shielded pair or three-conductor cable makes the remote connection. The D-RC2ST mounts in a standard US electrical box or RDL WB- or SMB-series box, with a cover plate available separately. It ships in white, with black and stainless-steel versions available.
