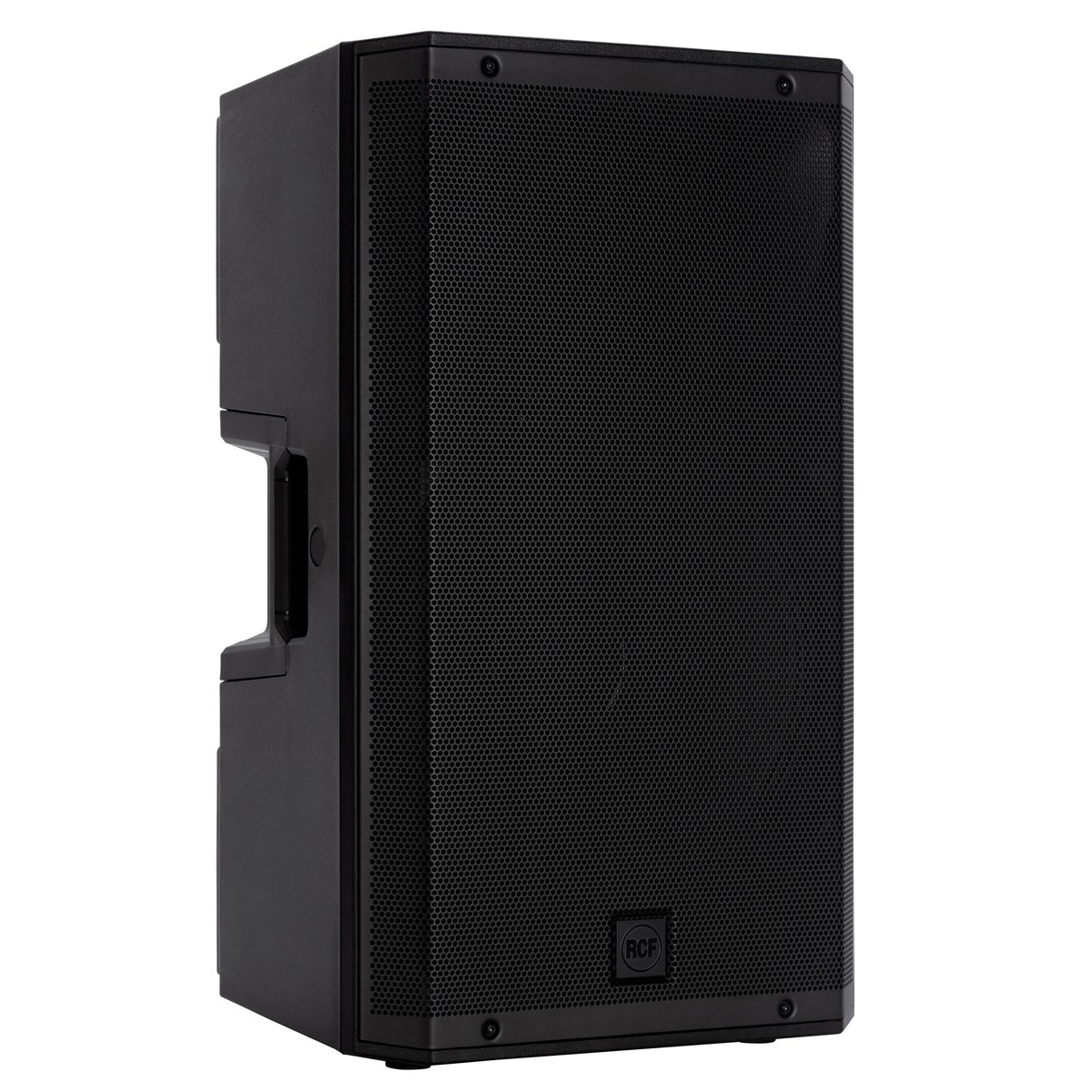

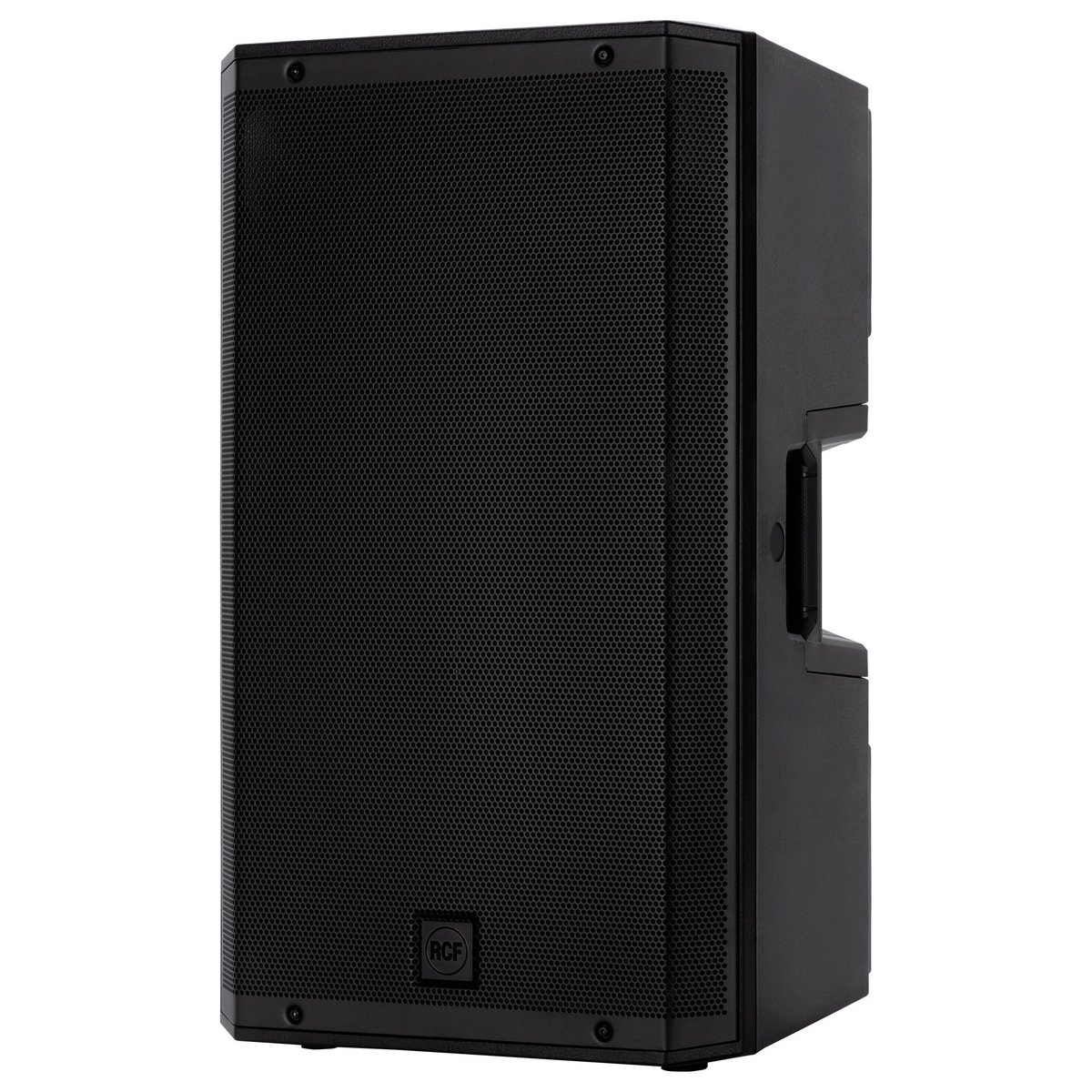

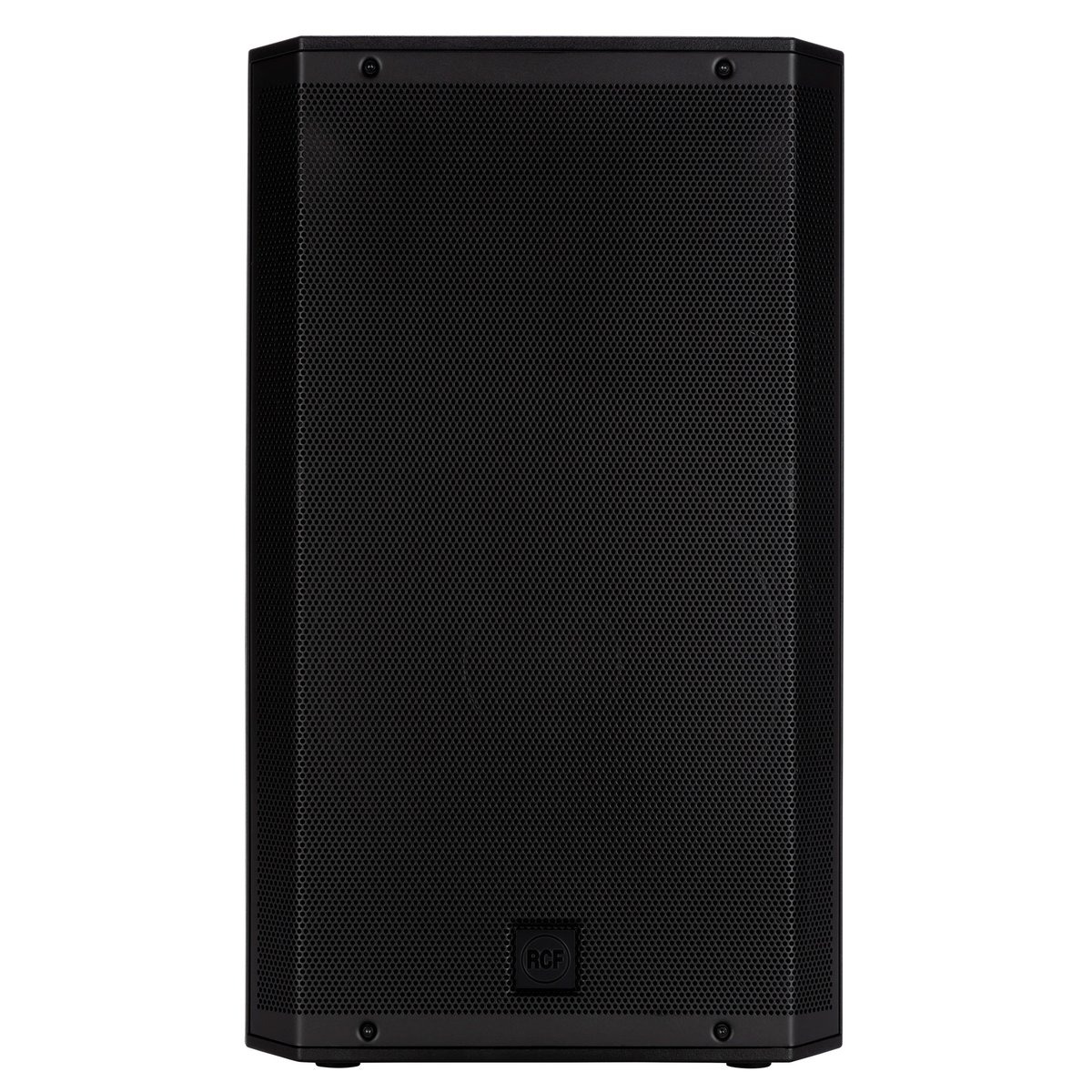

RCF ART 815-A Active Two-Way Speaker
The ART 15-inch two-way active is RCF's portable workhorse: a 1.75-inch compression driver over a 15-inch woofer, driven by a 1400 W Peak Class D bi-amplifier, reaching 130 dB at one metre. The True Resistive Waveguide holds a constant 100° by 60° pattern across the room rather than letting the high end narrow with frequency, which is what keeps the far seats sounding like the front row.
The cabinet is a polypropylene composite with internal M-brace reinforcement, 22.4 kg / 49.38 lbs, with handles on the top and both sides and a 35 mm pole socket underneath. Three M10 points let it fly or mount on a wall or truss. FiRPHASE filtering and Bass Motion Control run on the DSP, and the XBOOST switch on the rear panel adds low-end weight when the system runs without a subwoofer.
| Max SPL @ 1m | 130 dB |
|---|---|
| Horizontal Coverage | 100° |
| Vertical Coverage | 60° |
| Compression Driver | 1 x 1.0'', 1.75'' v.c |
| Woofer | 1 x 15'', 2.5'' v.c |
| Total Power | 1400 W Peak |
| Input Connectors | XLR, Jack |
| Crossover Frequency | 1600 |
| Cabinet Material | PP Composite |
| Weight | 22.4 kg / 49.38 lbs |
