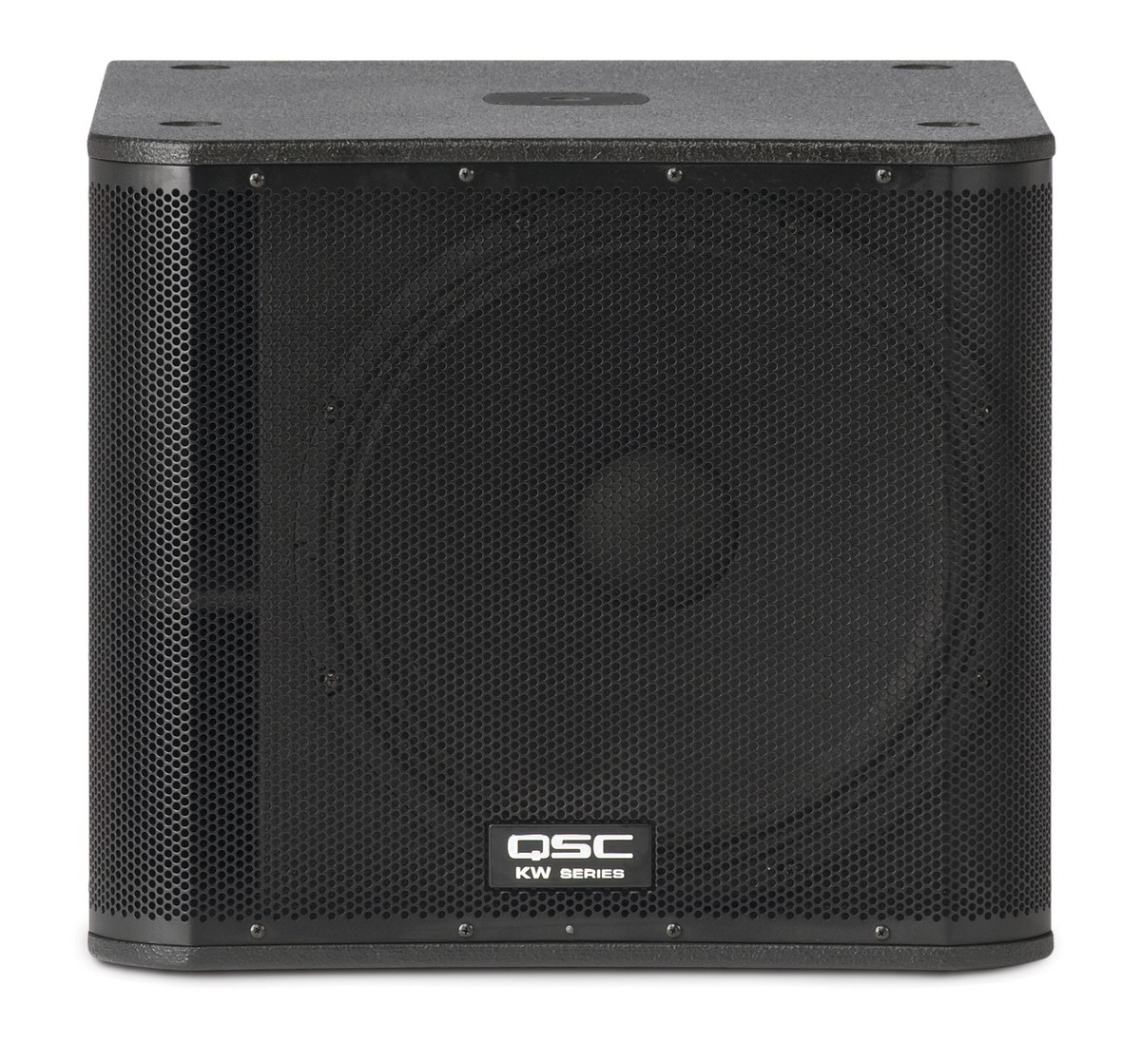

QSC KW181 18 Inch Powered Subwoofer
The KW181 is the subwoofer in QSC's KW Series, an 18 inch cone transducer in a 15 mm painted birch cabinet driven by the same 1000 W Class D module the rest of the line uses. It reaches 40 Hz at -6 dB and 135 dB peak, and a DEEP LF mode plus a polarity switch let it be tuned to the room and to any other subs stacked with it.

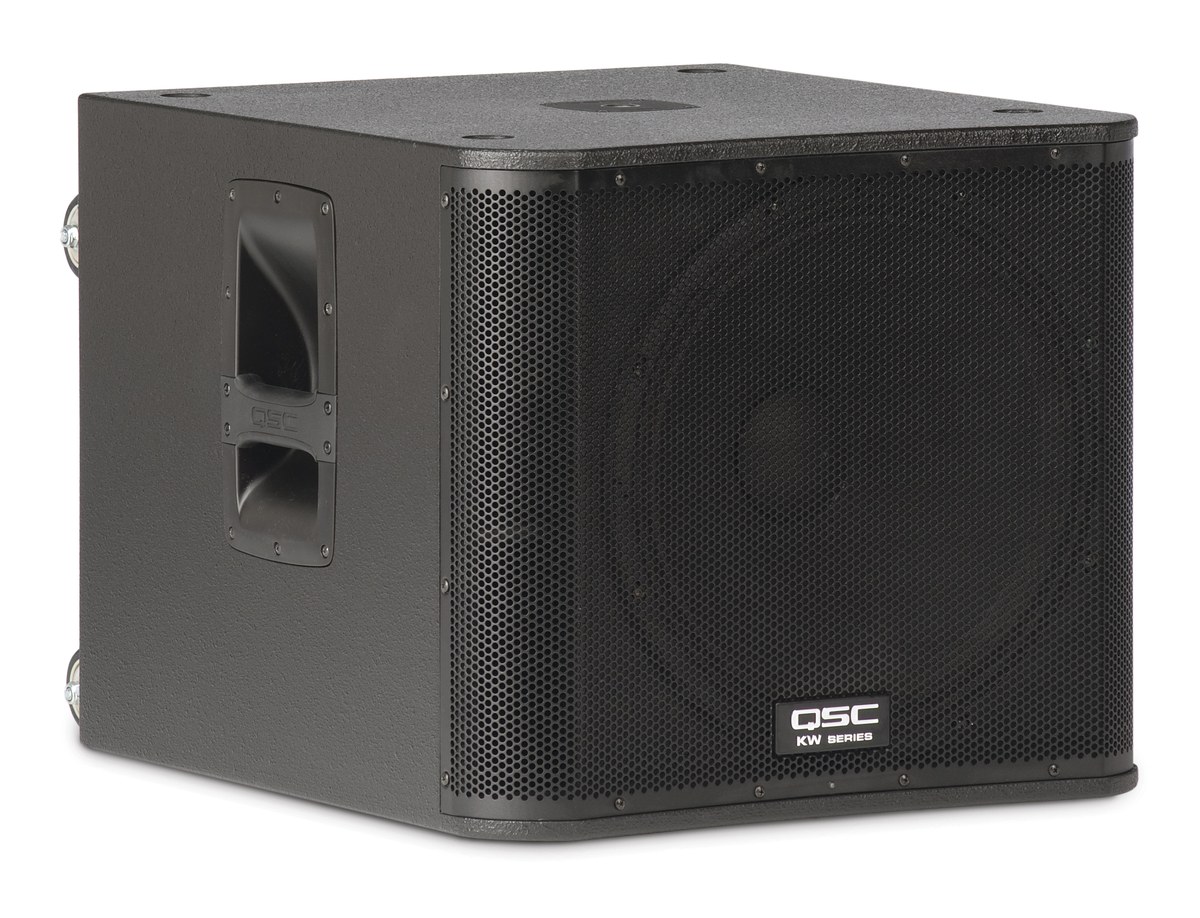

A threaded pole receptacle on top takes the included KW Series speaker pole, so a KW122, KW152 or KW153 stacks directly above the sub in a two-piece rig with nothing else to carry. Low-noise casters and cast aluminum handles cover load-in, and dual XLR/quarter-inch inputs with full-range XLR outputs pass signal on to the tops. GuardRail amplifier protection, thermal and excursion limiting, and a 5 minute auto-standby run in the background.
| Configuration | 18 in subwoofer |
|---|---|
| Low Frequency | 18 in cone transducer |
| Frequency Response (-6 dB) | 40 Hz - 112 Hz |
| Frequency Range (-10 dB) | 37 Hz - 129 Hz |
| Maximum SPL | 135 dB peak |
| Power Output | 1000 W Class D continuous |
| Controls | Power, Gain, LF Mode (Normal / DEEP), Polarity (Normal / Reverse), Front LED |

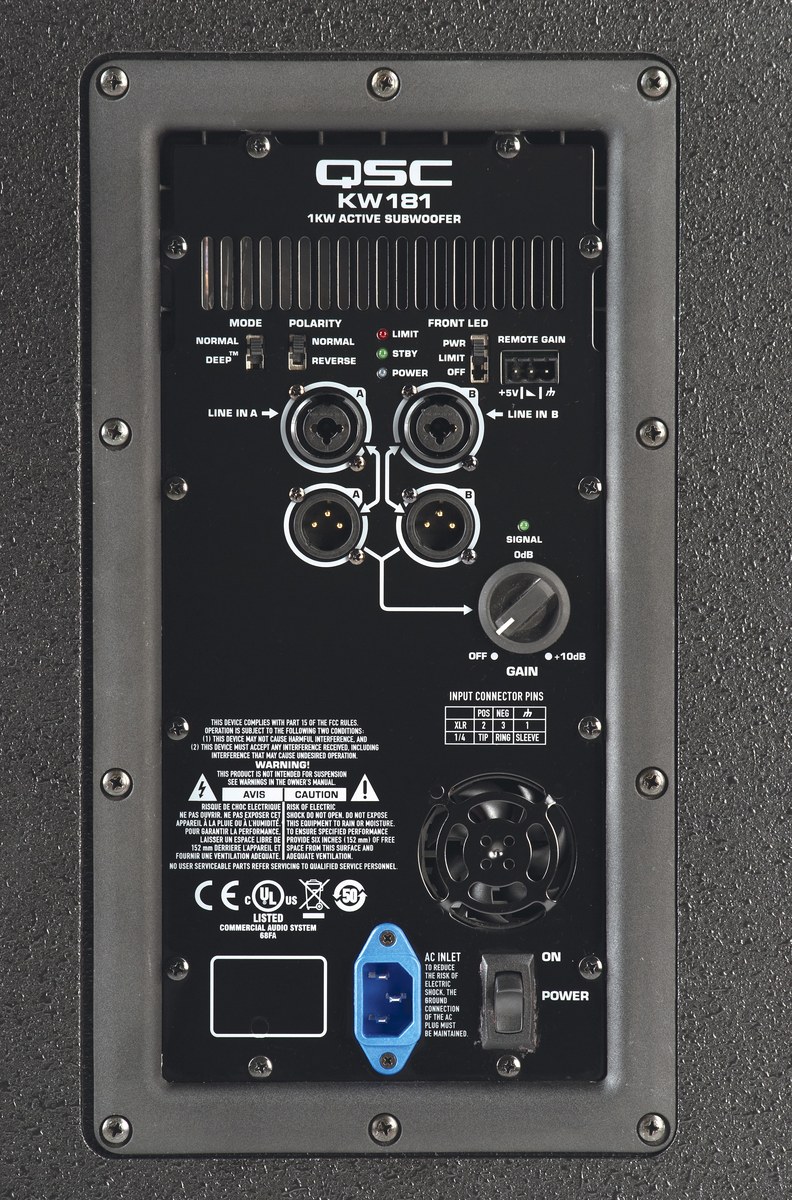

| Connectors | Dual balanced female XLR / 1/4 in line level in, dual balanced male XLR full-range out, remote gain control, locking IEC |
| Enclosure | 15 mm painted birch plywood, black textured paint, 16 gauge steel grille |
| Dimensions (H x W x D) | 20.3 x 23.4 x 29.9 in with casters (516 x 595 x 761 mm) |
| Net Weight | 93.6 lb (42.5 kg) with casters |
| Included | KW Series threaded speaker pole |
