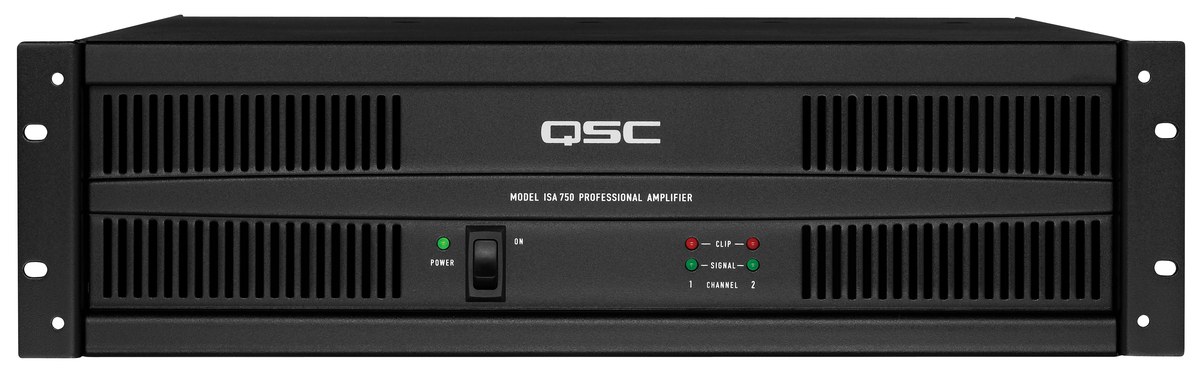

QSC ISA750 Installed System Power Amplifier

The ISA750 is a THX-approved member of QSC's ISA Series, built for low-impedance install systems that need real headroom rather than a 70V line. Class H 2-tier output circuitry cuts AC draw and heat, and the amp is rated down to 2 ohms per channel for driving multiple parallel loudspeakers off one channel.

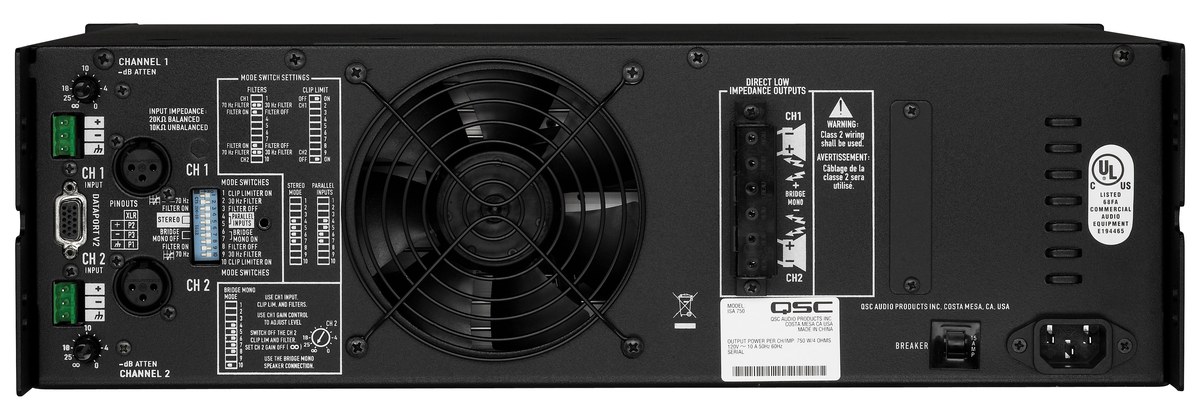

Rear-panel gain controls with 2 dB detents keep levels tamper resistant, and a DataPort V2 connector accepts QSC's DPV2 signal-processing accessories. Defeatable clip limiters, a selectable 30/70 Hz high-pass filter, and full short circuit, thermal, and RF protection round out a rack amp meant to run unattended.

Output Power (8 ohm stereo)	450 W per channel, 20 - 20,000 Hz, 0.1% THD
Output Power (4 ohm stereo)	650 W per channel
Output Power (2 ohm stereo)	1,200 W per channel
Output Circuitry	Class H, 2-tier
Signal to Noise	100 dB (20 Hz - 20,000 Hz)
Certification	THX approved for professional cinema applications
Dimensions	5.25 in (3 rack spaces) x 19 in x 15.9 in
Net Weight	47 lb (21.3 kg)
