ProX XT-BPC328 Circle 360 Deg Aluminum Truss Ring Circle Wheel Round Base or Top 1 Meter / 3.28 ft Fits F34

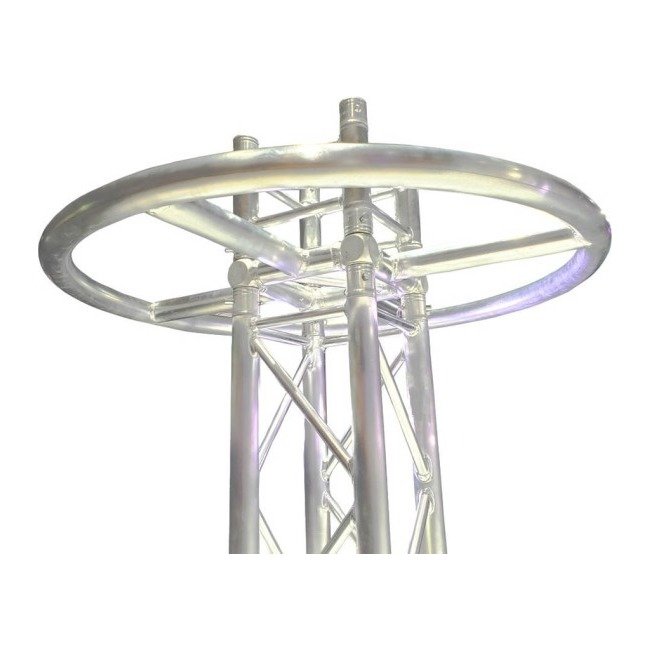

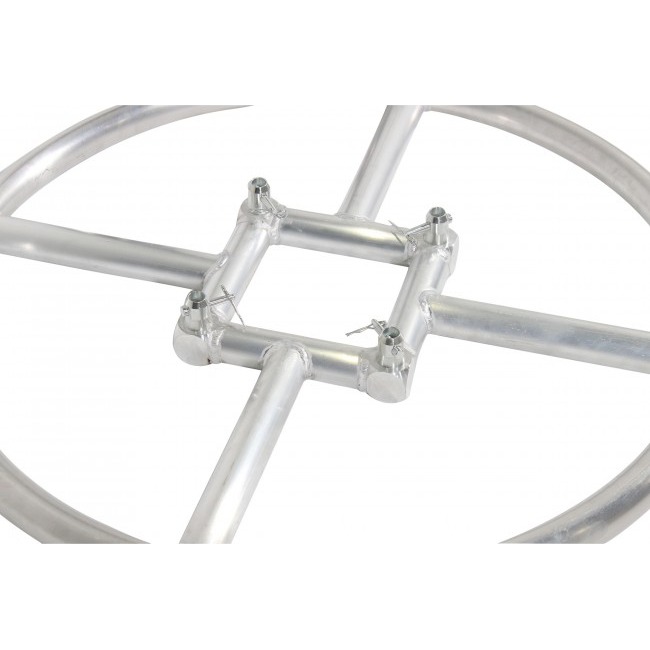

The ProX XT-BPC328 is a 1 meter (3.28 ft) aluminum truss circle for F34 systems. It works either as a round base under a vertical truss or flown as a top ring, and a center junction box lets a vertical truss attach in the middle, so fixtures hung around it cover a full 360 degrees.

The main tubes are 2" (50 mm) with a 2 mm wall, welded from EN-AW 6082 T6 aluminum to TUV standards, and the ring is 290 mm (11.42") high. It uses standard conical connectors that fit other F34 truss.

CertificationTUV certified
Shipping Dimensions40.00"H x 40.00"W x 3.00"L
Shipping Weight16 lbs
UPC019372407867
Diameter1 m (3.28 ft)
MaterialEN-AW 6082 T6 aluminum
Main Tube2" (50 mm), 2 mm wall
Height290 mm (11.42")
ConnectorsStandard conical, F34
