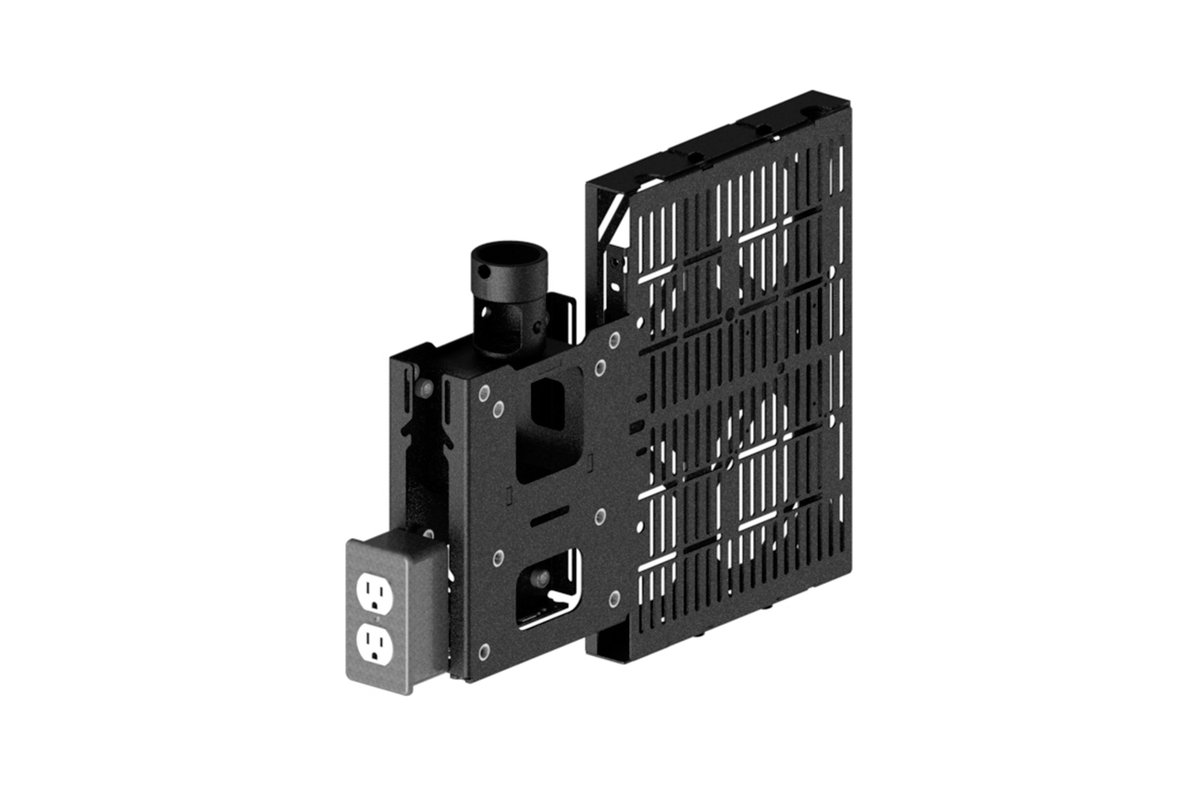

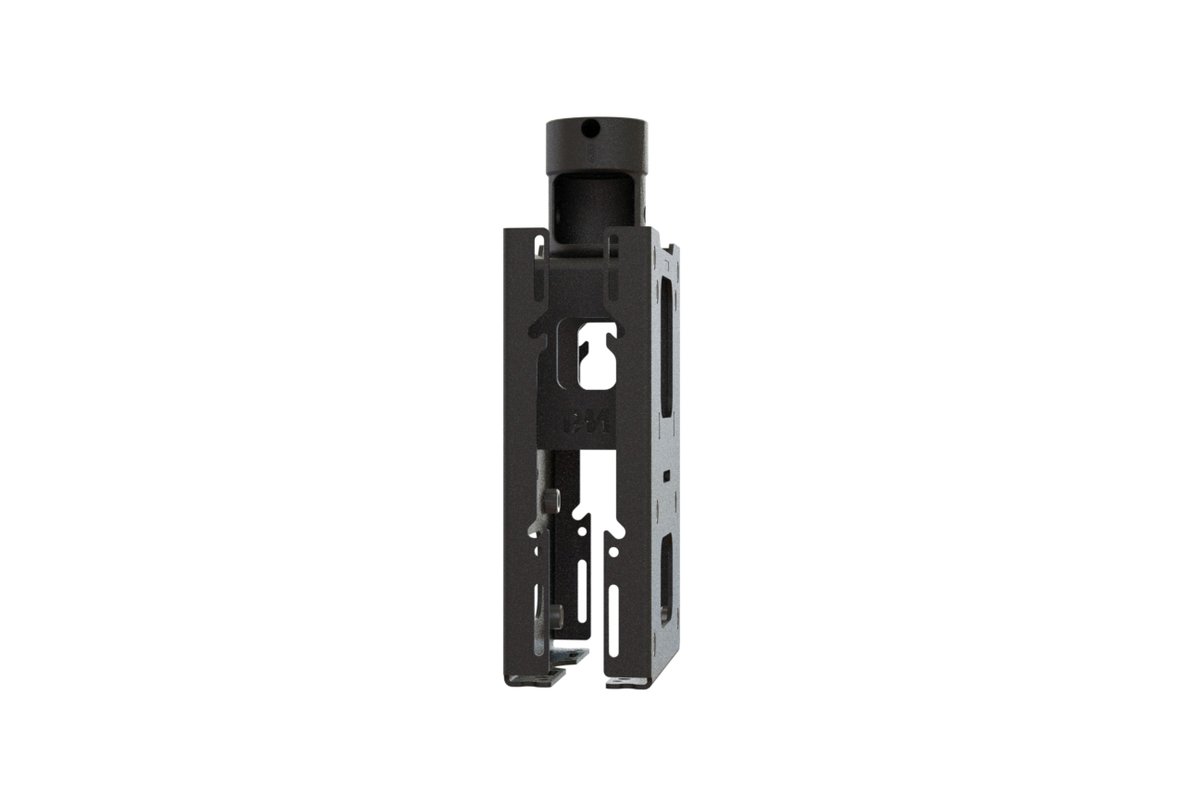

Premier Mounts PSD-D Ceiling Adapter for Back-to-Back Ceiling Mounting
The Premier Mounts PSD-D is a ceiling adapter for hanging two displays back to back from one drop pipe, the usual setup for double-sided signage over aisles, concourses and service counters. It connects through a 1.5 in. NPT coupler and supports displays up to 500 lb each.
The PSD-D pairs with Premier's CTM-MS1, CTM-MS2 and CTM-MS3 tilting mounts and with the Pro Series flat and tilt mounts, including the P2642F, P2642T, P4263F, P4263FP, P4263T, P4263TP, P5080F and P5080T, as well as the PFDM2 and PTDM2. The ceiling support and suspension adapter are not included and are ordered separately to suit the ceiling. It measures 7.25 x 11.76 x 3 in. and carries a limited lifetime warranty.
- Dimensions (W x H x D)7.25 x 11.76 x 3 in. / 18.42 x 29.87 x 7.62 cm
- Weight CapacityDisplays up to 500 lb. each
- Pipe Connection1.5 in. NPT coupler
- CompatibilityCTM-MS1/MS2/MS3, P2642F, P2642T, P4263F, P4263FP, P4263T
- CategoryCeiling Mount Accessories
| Part Number | PSD-D |
|---|---|
| Category | Ceiling Mount Accessories |
| Configuration | Back-to-back, two displays |
| Weight Capacity | Displays up to 500 lb. each |
| Pipe Connection | 1.5 in. NPT coupler |
| Compatibility | CTM-MS1/MS2/MS3, P2642F, P2642T, P4263F, P4263FP, P4263T, P4263TP, P5080F, P5080T, PFDM2, PTDM2 |
| Not Included | Ceiling support and suspension adapter |
| Dimensions (W x H x D) | 7.25 x 11.76 x 3 in. / 18.42 x 29.87 x 7.62 cm |
| Warranty | Limited lifetime |
