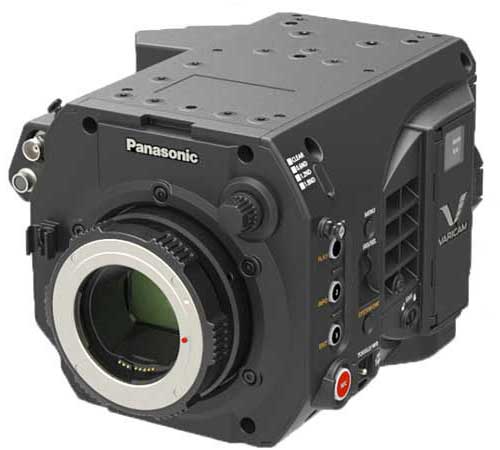

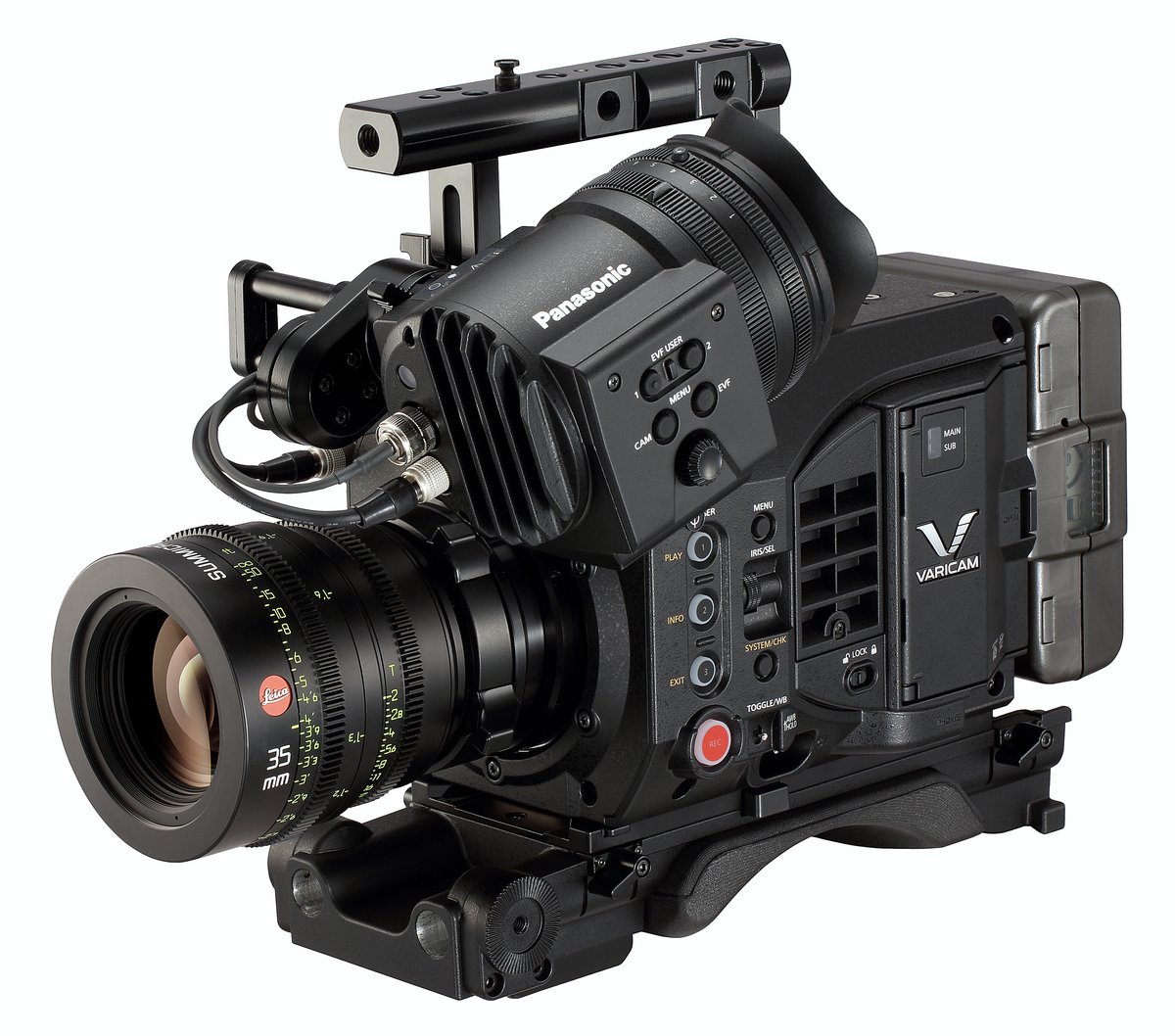

Panasonic AU-V35LT1 Varicam LT 4K Digital Cinema Camera

Power
DC 12 V (11.0 V – 17.0 V)

Power Consumption
69 W (Body , 99 W (With all optional accessories connected and maximum power supplied from each output terminal)

Operating Temperature
0°C to 40°C

Operating Humidity
10% to 85% (Relative humidity)

Storage Temperature
−20°C to 60°C

Weight
Body only: Approx. 11 pounds (5.0 kg)

Dimensions (W x H x D)
7-1/16 inches x 9-1/16 inches x 13 -21/32 inches ( 179 mm × 230.5 mm × 347 mm) (Body only, excluding protrusion)

Pickup Device
super35 mm MOS 8.9 million pixels

Picture Elements
Total picture elements : Approx.10.3 million pixels

Effective Picture Elements
Approx. 8.9 million pixels

Lens Mount
35 mm PL mount

Optical Filter
ND filter: 1: CLEAR, 2: 0.6 ND 3: 1.2 ND, 4: 1.8 ND

Gain Settings
[ISO] mode: ISO 800 to 12800, [dB] mode: 0 to 24 dB (3 dB step)

Shutter speed
[deg] mode: 1.0 to 358 deg (0.5 deg step) , [sec] mode: 1/24 to 1/250 (When 24p mode)

Recording Media
expressP2 card, P2 card, microP2 card

Recording Resolution
4096 x 2160, 3840 x 2160, 1920 x 1080

Recording Framerate
Maximum 4K 50p/60p, HD 50p/60p

System Frequency
59.94p, 50p, 29.97p, 25p, 24p, 23.98p

Recording Format
Main Recorder: AVC-Intra4K 4:2:2, AVC-Intra100; Sub Recorder: AVC-Intra100, AVC-LongG50, AVC-LongG25

Recording Video Signal
4096 x 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p; 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p; 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p

Recording/Playback Time: (When expressP2 card 256GB is used)*2(Main Codec)
Approx. 90 min. (AVC-Intra4K 4:2:2, VFR OFF, 24p); Approx. 36 min. (AVC-Intra4K 4:2:2, VFR ON, 50p/59.94p); Approx. 128 min. (AVC-Intra 100, VFR ON,50fps/60fps), 50fps/60fps)

Recording/Playback Time: (When microP2 card 64GB is used)*2 (Sub Codec)
Approx. 64 min. (AVC-Intra100, 25p/29.97p); Approx. 128 min. (AVC-LongG50, 25p/29.97p); Approx. 256 min. (AVC-LongG25, 25p/29.97p

Quantizing
10 bit

Video Compression Format
AVC-Intra4K 4:2:2/AVC-Intra100: MPEG-4 AVC/H.264 Intra Profile, AVC-LongG50/AVC-LongG25: MPEG-4 AVC/H.264

Recording Audio Signal
48 kHz/24 bit, 4 ch, Head room 18 dB/20 dB menu switchable

File Format
MOV

Video Compression Format
H.264/AVC High Profile

Audio Compression Format
LPCM

Recording Time (1 GB)*2
Approx. 25 min.

SDI OUT
HD (1.5 G)/3 G SDI, 0.8 V[p-p], 75 Ω (1 set, 4 pieces)

MON OUT1
HD (1.5 G)/3 G SDI, 0.8 V[p-p], 75 Ω

VF SDI
HD (1.5 G)/3 G SDI, 0.8 V[p-p], 75 Ω

AUDIO IN
(CH1/CH2): XLR x 2, 3 pin, LINE/MIC/MIC+48 V/AES switchable

MIC IN
XLR x 1, 5 pin

Phones
Stereo mini jack

Speaker
20 mm diameter, round x 1

GENLOCK IN
HD (1.5 G) /3 G SDI, 0.8 V[p-p], 75 Ω

TC IN/OUT
BNC×1, IN/OUT switch selection

IN
0.5 V[p-p] to 8 V[p-p], 10 kΩ

OUT
2.0 ± 0.5 V[p-p], Low impedance

DC IN
XLR 4 pin, DC 12 V (DC 11.0 V to 17.0 V)

DC OUT/RS
4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.0 A

DC OUT
2 pin, DC12 V (DC 11.0 V to 17.0 V),maximum output current 1.0 A

LENS
12 pin x 1, 4 pin x 2

VF
14 pin

LAN
100BASE-TX/10BASE-T

USB2.0: (device)
Type B connector, 4 pin

USB2.0: (host)
Type A connector, 4 pin *3

EXT
50 pin (for external recording only) *3

Control Panel (LCD)
3.5-type QHD color monitor, (Approx. 1.56 million dots)

Display Panel10/7/2014
OLED, 0.7-type, 2.76 million dots

Signal Input10/7/2014
1080/59.94p, 1080/50p, 1080/60p
