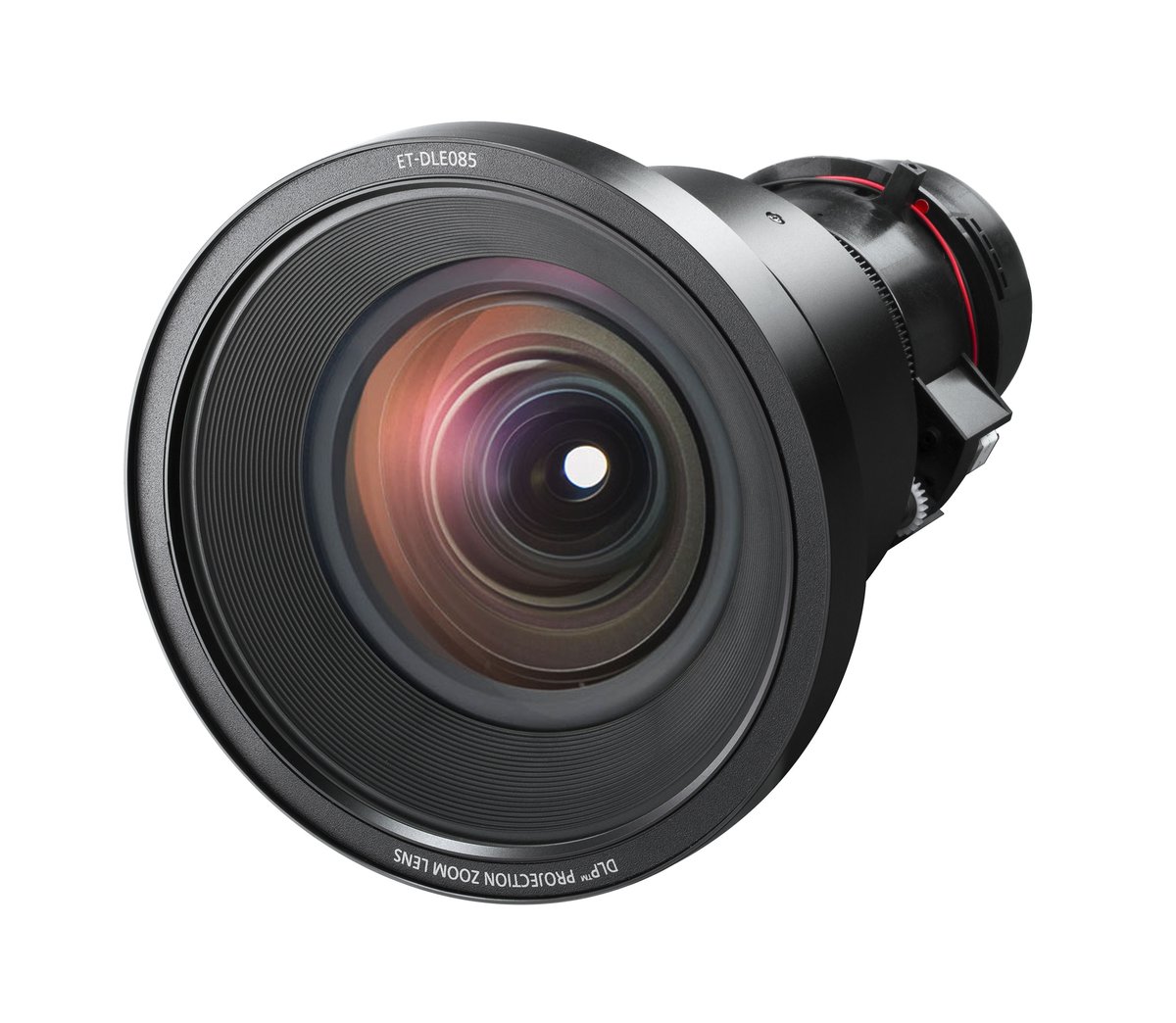

Panasonic ET-DLE085 Powered Short-throw Zoom Lens

The ET-DLE085 is a powered short-throw zoom lens for Panasonic's 1-Chip DLP projectors, covering a 0.8 to 1.0:1 throw ratio at WUXGA. It sits between the fixed short-throw lenses and the standard zoom, and is a common choice where the projector has to hang close to the screen but still needs a little framing latitude.

The 1.25x power zoom and power focus are driven from the projector controls, so the image can be set once the unit is rigged out of reach. The lens uses the 140 mm barrel and weighs about 1.3 kg. It mounts across Panasonic's 1-Chip DLP range, including the PT-RZ, RW and RX series.
