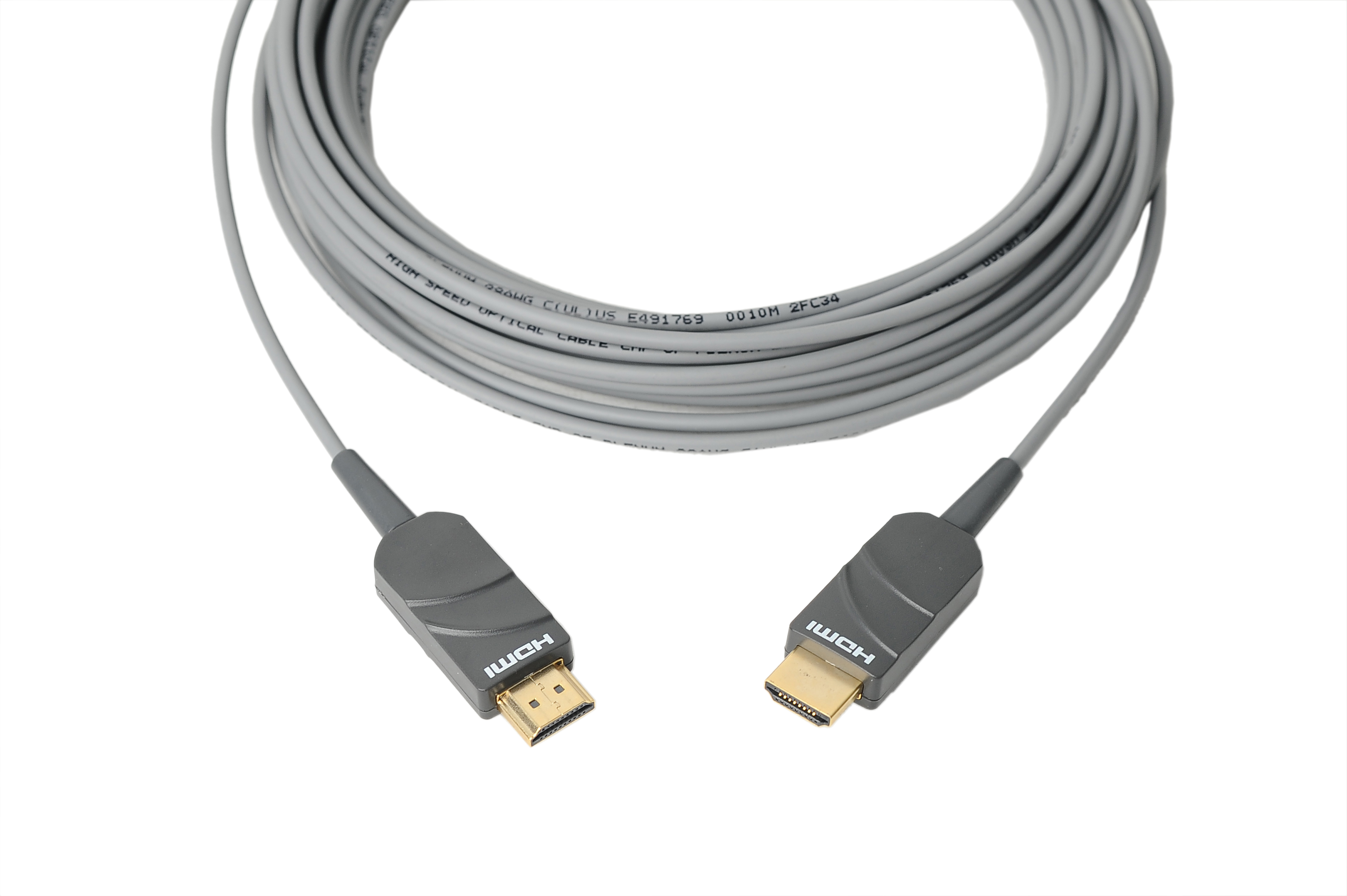

Opticis LHM2-N HDMI 2.0 Active Optical Cable
The LHM2-N is Opticis's HDMI 2.0 Active Optical Cable. It carries the signal up to 100 m (328 feet) over hybrid cable, with no scaling and no compression in the path. Resolution support runs to 4K DCI (4096x2160) at 60Hz.
Opticis builds this one in LSZH, Plenum, TPU jackets, so the run can be specified for the plenum, riser or trailing-cable job it is going into. Lengths run from 10 m to 100 m; pick the length on this page and the cart follows the SKU. Easy Plug & Play Feature. Offers 500N pulling and crush load strength with bending radius of 6mm. Supports 3D contents transmission. Supports HDMI2.0 standards feature.
- ResolutionExtends 4K DCI (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)
- Transmission DistanceTransmits HDMI data up to 100m (328 feet) over hybrid cable
- 3D SupportSupports 3D contents transmission
- StandardsSupports HDMI2.0 standards feature
- HDCPComplies with CEC, EDID, and HDCP 2.2
| Resolution | Extends 4K DCI (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4) |
|---|---|
| Transmission Distance | Transmits data up to 100m (328 feet) over hybrid cable |
| Power | Easy Plug & Play Feature |
| Cable Construction | Offers 500N pulling and crush load strength with bending radius of 6mm |
| 3D Support | Supports 3D contents transmission |
| Standards | Supports HDMI2.0 standards feature |
| HDCP | Complies with CEC, EDID, and HDCP 2.2 |
| Bandwidth | Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps |
| Part Number | LHM2-NL10 |
