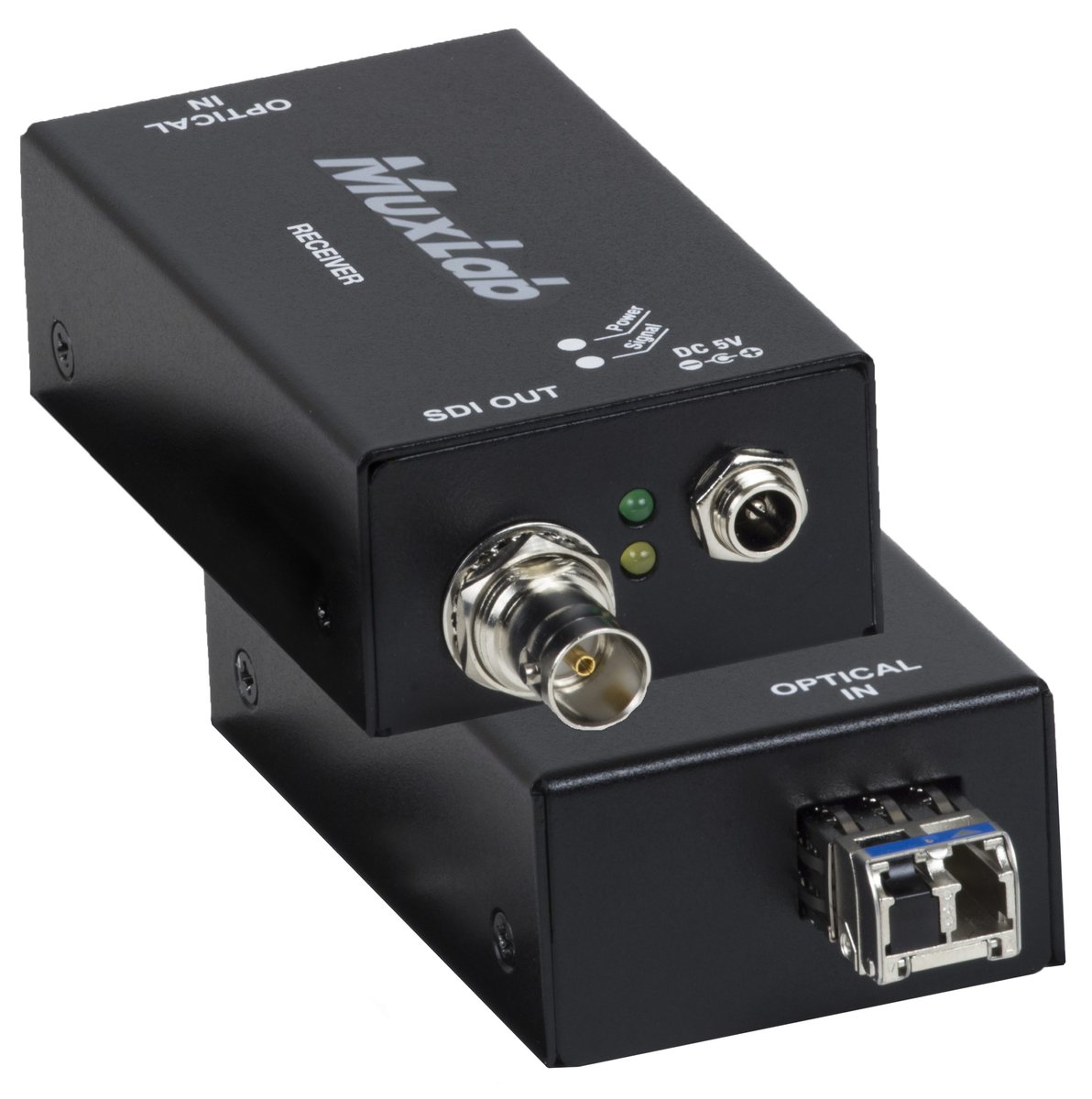

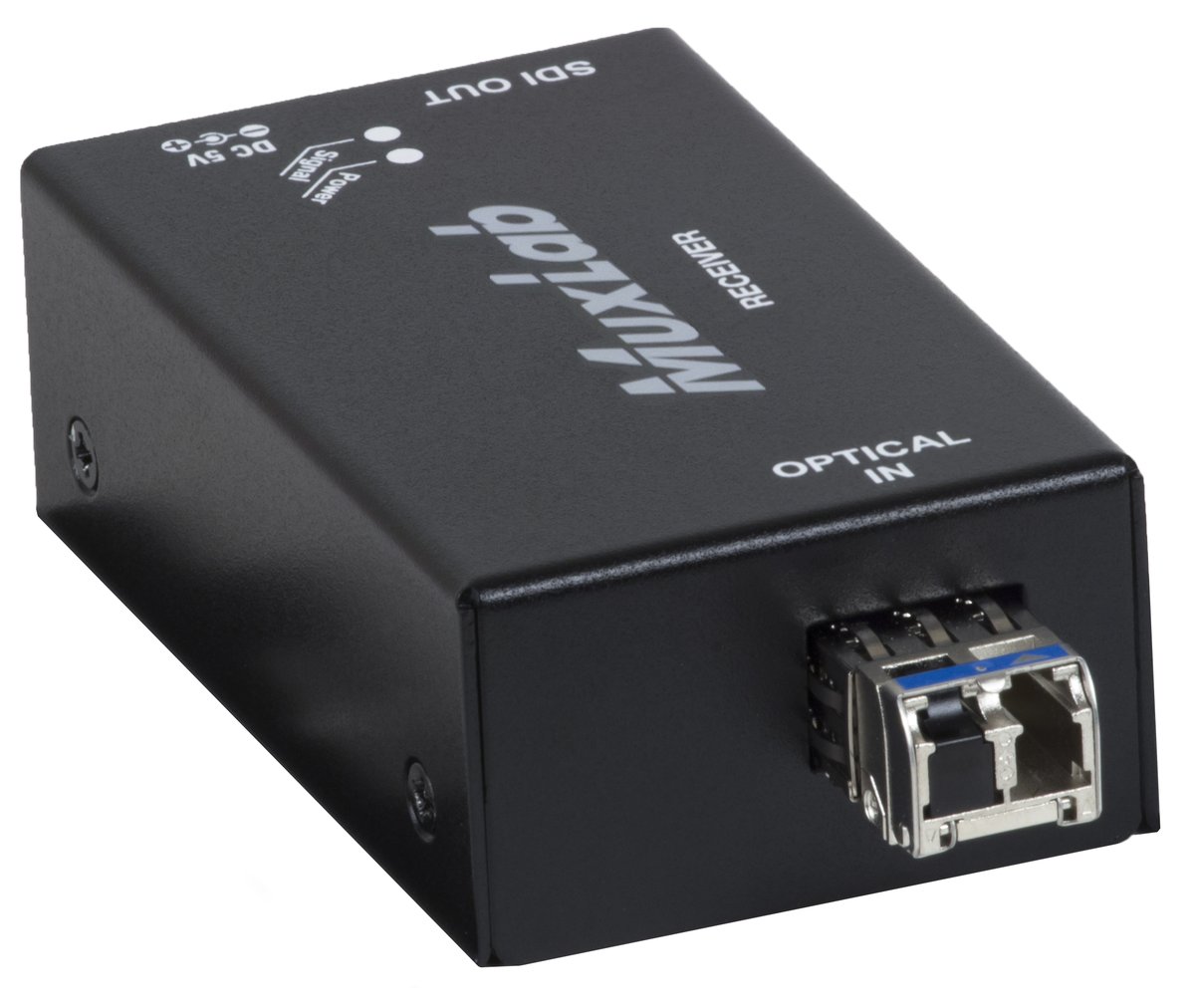

MuxLab 500713 12G-SDI Fiber Extender Kit

The 500713 kit transmits 12G-SDI up to 33,000ft (10km) over a single single-mode fibre strand at all specified bit rates, carrying up to 12 Gbps of digital video. That is enough for 4K at 60Hz on a single link rather than a quad-link arrangement.

It also handles 6G, 3G, and HD-SDI signals, so mixed-format facilities can standardise on one extender. LED diagnostics show link status at both ends, which shortens fault-finding on a long fibre run.

Standard	SDI single coaxial link: 12G, 6G, 3G, HD & SD
Power Supply	Included Two 100-240V/5 VDC 2A power supplies with interchangeable blades for NA, Europe and UK
Power Consumption	3 Watts (max) per unit
Dimensions	Enclosure: 3.2" x 1.9" x 1.1" (8.2cm x 4.8cm x 2.8cm), excluding connectors
Weight	Shipping box: 1.6lbs (0.7kg)
Enclosure	Type Black, metal
Temperature	Operating: 0 deg to 40 deg C Storage: -20 deg to 60 deg C
Humidity	20% to 90% non-condensing
