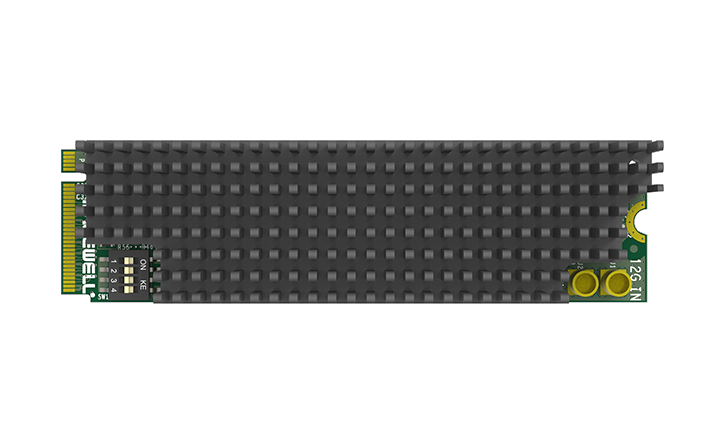

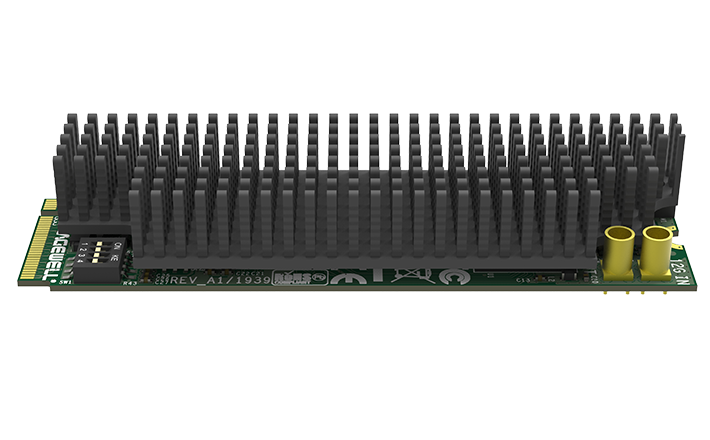

Magewell Eco Capture SDI 4K Plus M.2 Capture Card (11560)

Eco Capture SDI 4K Plus M.2 is a single channel 4K capture card. Connections: MMCX SD/HD/3G/6G/12G SDI. Signal handling: Support for capture image resolutions up to 4096x2160 pixels; Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. ). It seats on M.2 2280 Type M (PCIe Gen2 x4).

It measures M.2 2280 standard size. Power: Max current at 3.3V: ~ 2.17 A; Max power consumption: ~ 7.16 W. In the box: MMCX to BNC cable (32cm).

Part Number	11560
Input Interfaces	MMCX SD/HD/3G/6G/12G SDI
Host Interface	M.2 2280 Type M (PCIe Gen2 x4)
Video Capture Formats	Support for capture image resolutions up to 4096x2160 pixels; Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. )
Form Factor	M.2 2280 standard size
Power	Max current at 3.3V: ~ 2.17 A; Max power consumption: ~ 7.16 W
Operating Range	Operating temperature: 0 to 60 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% non-condensing
In the Box	MMCX to BNC cable (32cm)
