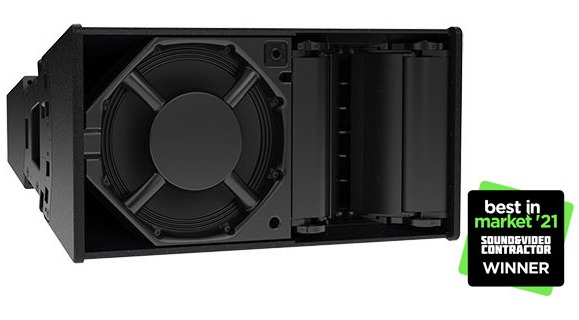

Martin Audio Torus T12 12" Constant Curvature Array

The Torus T12 is Martin Audio's passive 12" constant-curvature array module, built to hang in curved arrays that cover long, deep audiences evenly. A single 12" neodymium LF driver pairs with three 1" compression drivers across a Dynamic Horn Flare that adjusts horizontal coverage between 60, 75 and 90 degrees, so one cabinet type adapts to rooms of different widths.

The vertical splay is fixed per model: the T1215 sets a 15-degree angle for flatter, longer-throw arrays, while the T1230 sets 30 degrees for steeper coverage of closer or more raked audiences. Both handle 400W AES (1600W peak) at 8 ohms and reach 134dB peak, running passive so a single amplifier channel drives each box. Response runs 65Hz-18kHz.
