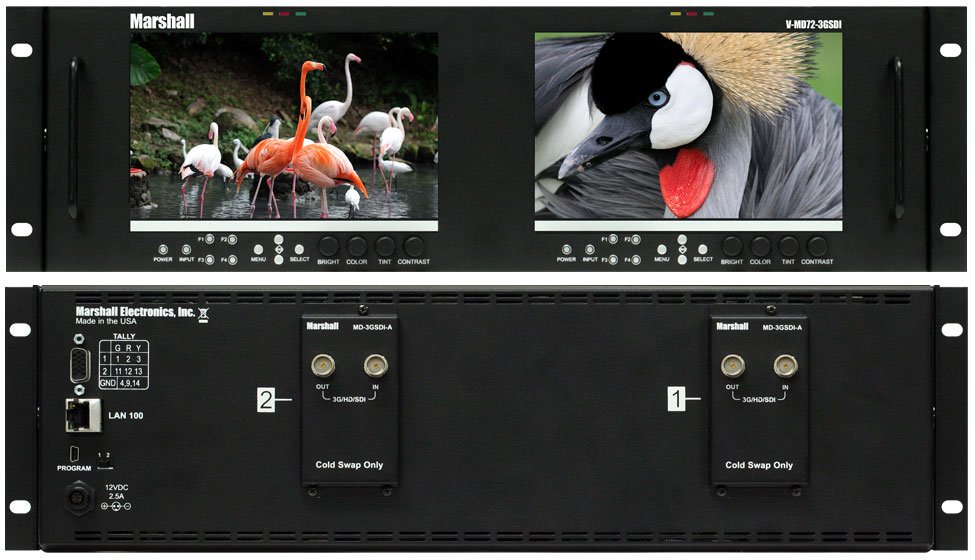

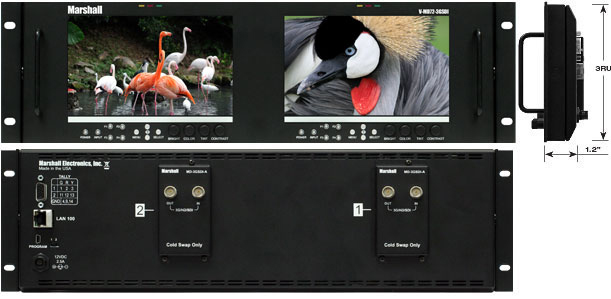

Marshall V-MD72-3GSDI Dual 7-inch Rack-Mount Monitor (2x 3G-SDI Modules)
The V-MD72-3GSDI is a dual 7-inch, 3RU rack-mount monitor that puts two independent LED-backlit LCDs in a single chassis. Each screen runs 800x480 at 450 cd/m2 with a 16:10 aspect and wide viewing angles, so operators can read both feeds clearly from across a machine room or from a high rack position.
The unit ships preloaded with two MD-3GSDI modules, each carrying 3G-SDI input with loop-through, and the modular bay design lets integrators reconfigure inputs as a system changes. A LAN port with a built-in web server lets an operator monitor and control any or all V-MD units on the network, and each screen carries the full toolset: status display, false color, IMD, markers, freeze, color temperature presets, RGB gain and bias, pixel-to-pixel, blue gun, and hard tally.
| Displays | Dual 7 inch, 800x480 LED-backlit LCD |
|---|---|
| Form Factor | 3RU rack mount |
| Brightness | 450 cd/m2 |
| Aspect Ratio | 16:10 |
| Input Modules | 2x MD-3GSDI (3G- with loop-through) |
| Network | LAN port with built-in web server for control |
| Tools | False color, IMD, markers, freeze, color temp presets, RGB gain/bias, pixel-to-pixel, blue gun, hard tally |
| Resolution | 800 x 480 |
| Contrast ratio | 600:1 |
| Viewing angle | 140° x 100° |
| Power | Voltage |
| Inputs | 2-Pin Twist-Lock |
| Weight | 6.50 lbs |
| Screen size | 7" Diagonal |
