Marshall CV620 20x HD60 3G/HDI PTZ Camera

Marshall PTZ Camera



Marshall CV620-WH4
20X PTZ Camera

WHITE COLOR
20x optical zoom
HD-SDI and HDMI simultaneous outputs
HD: 1920x1080i, 1920x1080p, 1280x720p
Please call 201-791-1400 or
Email us for pricing

Marshall CV620-BK4
20X PTZ Camera

BLACK COLOR
20x optical zoom
HD-SDI and HDMI simultaneous outputs
HD: 1920x1080i, 1920x1080p, 1280x720p
Please call 201-791-1400 or
Email us for pricing

Marshall CV620-WH4
20X PTZ Camera

WHITE COLOR
20x optical zoom
HD-SDI and HDMI simultaneous outputs
HD: 1920x1080i, 1920x1080p, 1280x720p
Please call 201-791-1400 or
Email us for pricing

Marshall CV620-BK4
20X PTZ Camera

BLACK COLOR
20x optical zoom
HD-SDI and HDMI simultaneous outputs
HD: 1920x1080i, 1920x1080p, 1280x720p
Please call 201-791-1400 or
Email us for pricing

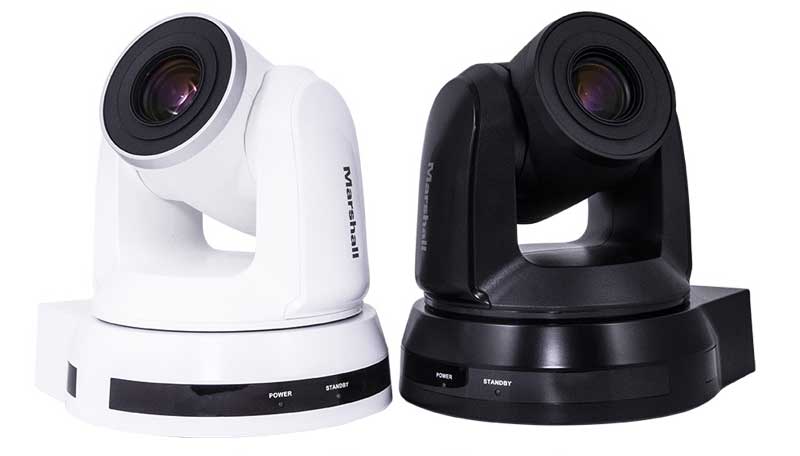

The 4th generation Marshall CV620 HD PTZ Camera captures crisp HD video with the added versatility of a smooth pan-tilt-zoom chassis and 20X optical zoom block. Designed for high performance applications including broadcast television, live events, corporate installations, and more. Additionally, the CV620 includes precise picture adjustment settings and professional 3G/HDSDI and HDMI outputs for convenient integration and installation.

The CV620 is built around a professional-grade, 2-Megapixel 1/2.8-inch sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p, 1920x1080i and 1280x720p at 60fps.

The CV620 is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.

Simultaneous 3G/HDSDI and HDMI outputs with control options over RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows.

Specs
  • 2-megapixel 1/2.8-inch HD sensor
  • HD output: 1920x1080i, 1920x1080p, 1280x720p
  • High speed: 60, 59.94, 50, 30, 29.97, and 25 fps
  • 20X optical zoom (5.3~110mm/ F1.6~3.8) with 12X digital zoom
  • 340° horizontal pan/ 120° vertical tilt
  • Smooth synchronous pan, tilt, zoom, and focus for professional transitions
  • 3G/HDSDI (BNC) and HDMI simultaneous video outputs
  • Variable Transition Speeds: 5~300° per second with optional motionless transition
  • Supports RS232/RS422 remote control interface
  • Compatible with most integrated video management systems
  • Mountable via table, wall or ceiling (ceiling mount included in box).
  • Optional wall mounts CV-PTZ-WM (Black) or CV-PTZ-WMW (White) sold separately.

CV620 Spec Sheet
CV620 User Manual




PTZ Controllers:

Model Image Description Pricing
VS-PTC-200 Marshall VS-PTC-200 PTZ Controller
Specifically designed for Marshall's CV620 & CV612 PTZ Cameras
  • 4D Joystick allows simultaneous control over Pan, Tilt, Zoom and Focus
  • 128 Preset locations with smooth adjustable transition speeds
  • One touch controls over Brightness, Back Light, Mirror/Flip, Freeze Capture
  • Full Duplex RS-232 & RS-422 Communication Interface
  • VISCA and PELCO Protocols
  • Please call or
    Email us for pricing
    VS-PTC-IP Marshall VS-PTC-IP PTZ Controller
    Works with all Marshall PTZ Cameras
  • Cross protocol mix-control with RS232/RS422 and IP
  • Protocol support: VISCA, PELCO D/P, ONVIF, and VISCA over IP
  • High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
  • Tactile feel with professional rocker/seesaw switch for zoom control
  • Automatically search available IP cameras in a network and assign IP addresses easily
  • Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
  • Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
  • Multi-color key/button illumination indicator directs operation to specific functions
  • Control firmware upgrade available via USB
  • Please call or
    Email us for pricing
    Model Description Pricing
    Marshall VS-PTC-200 PTZ Controller
    Specifically designed for Marshall's CV620 & CV612 PTZ Cameras
  • 4D Joystick allows simultaneous control over Pan, Tilt, Zoom and Focus
  • 128 Preset locations with smooth adjustable transition speeds
  • One touch controls over Brightness, Back Light, Mirror/Flip, Freeze Capture
  • Full Duplex RS-232 & RS-422 Communication Interface
  • VISCA and PELCO Protocols
  • Please call or
    Email us for pricing
    Marshall VS-PTC-IP PTZ Controller
    Works with all Marshall PTZ Cameras
  • Cross protocol mix-control with RS232/RS422 and IP
  • Protocol support: VISCA, PELCO D/P, ONVIF, and VISCA over IP
  • High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
  • Tactile feel with professional rocker/seesaw switch for zoom control
  • Automatically search available IP cameras in a network and assign IP addresses easily
  • Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
  • Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
  • Multi-color key/button illumination indicator directs operation to specific functions
  • Control firmware upgrade available via USB
  • Please call or
    Email us for pricing
