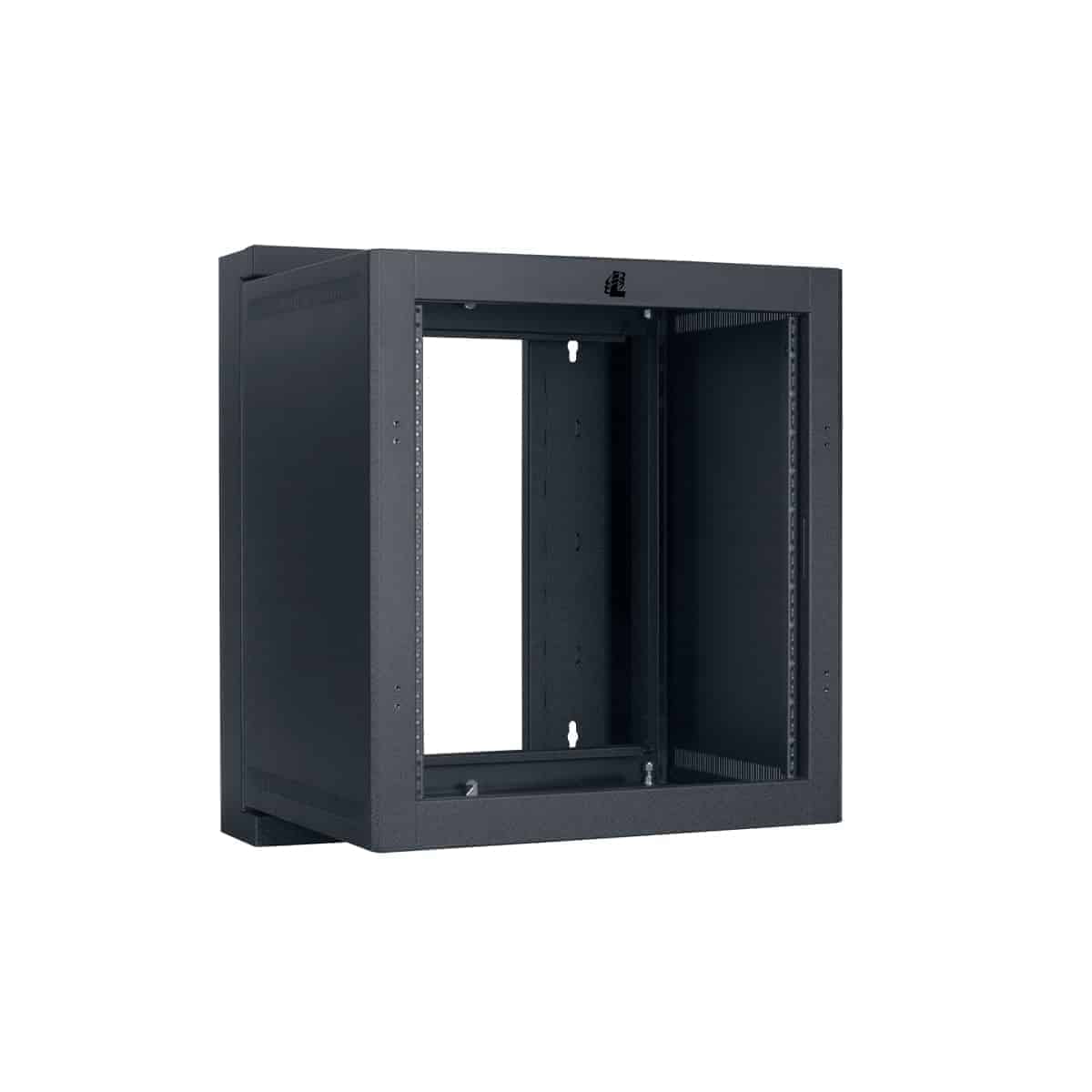

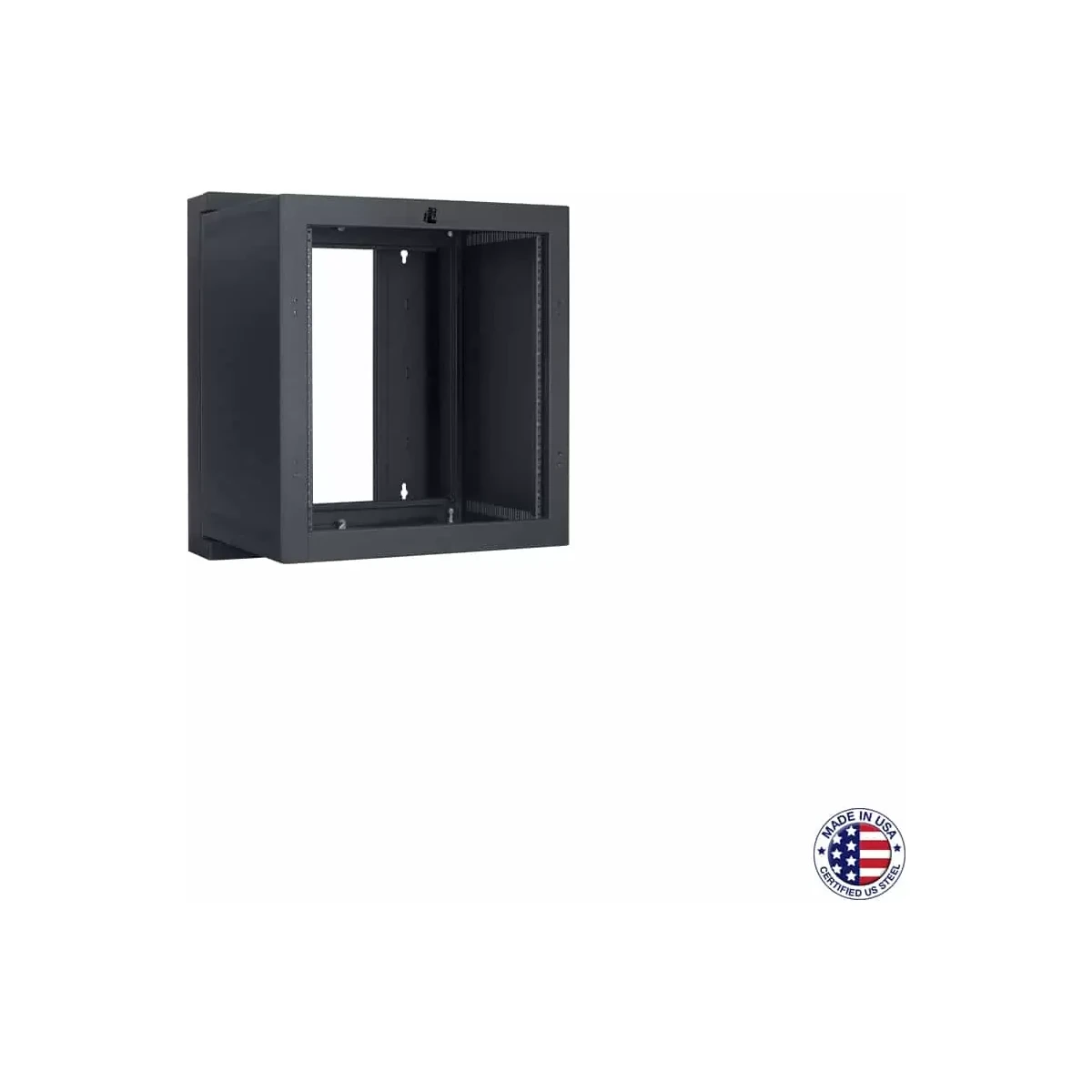

Lowell LWSR-1222 Wall Swing Rack 12Ux22D

The Lowell LWSR-1222 is a wall-mount rack. Lowell specifies one-pair fixed position mounting rails tapped 10-32, pilot point screws with captive washers, beveled corners and black-textured powder-coat finish.

Ordered as Lowell part number LWSR-1222. Specifications as published by Lowell Manufacturing.

Rack Space	12U
Knockouts	Backbox has two center locks, 16 in. mounting centers, 10 in. wide center wiring path, and integral laser-cut section with knockout panels on top/bottom.
Height	28.825 in.
Width	23.06 in.
Depth	21.92 in.
Construction	16-gauge steel
Finish	Black-textured powder-coat finish
Mounting Rails	One-pair fixed position mounting rails tapped 10-32
