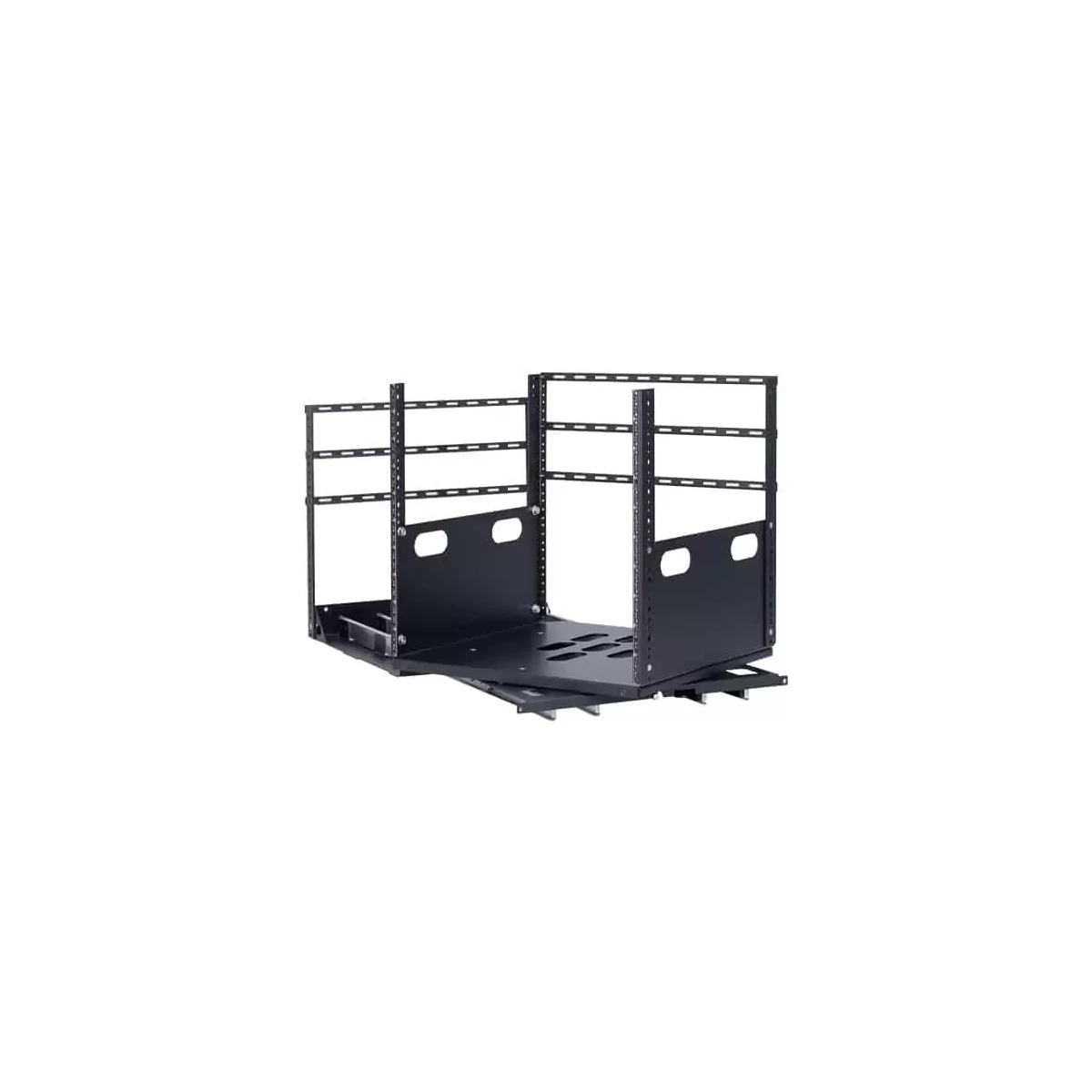

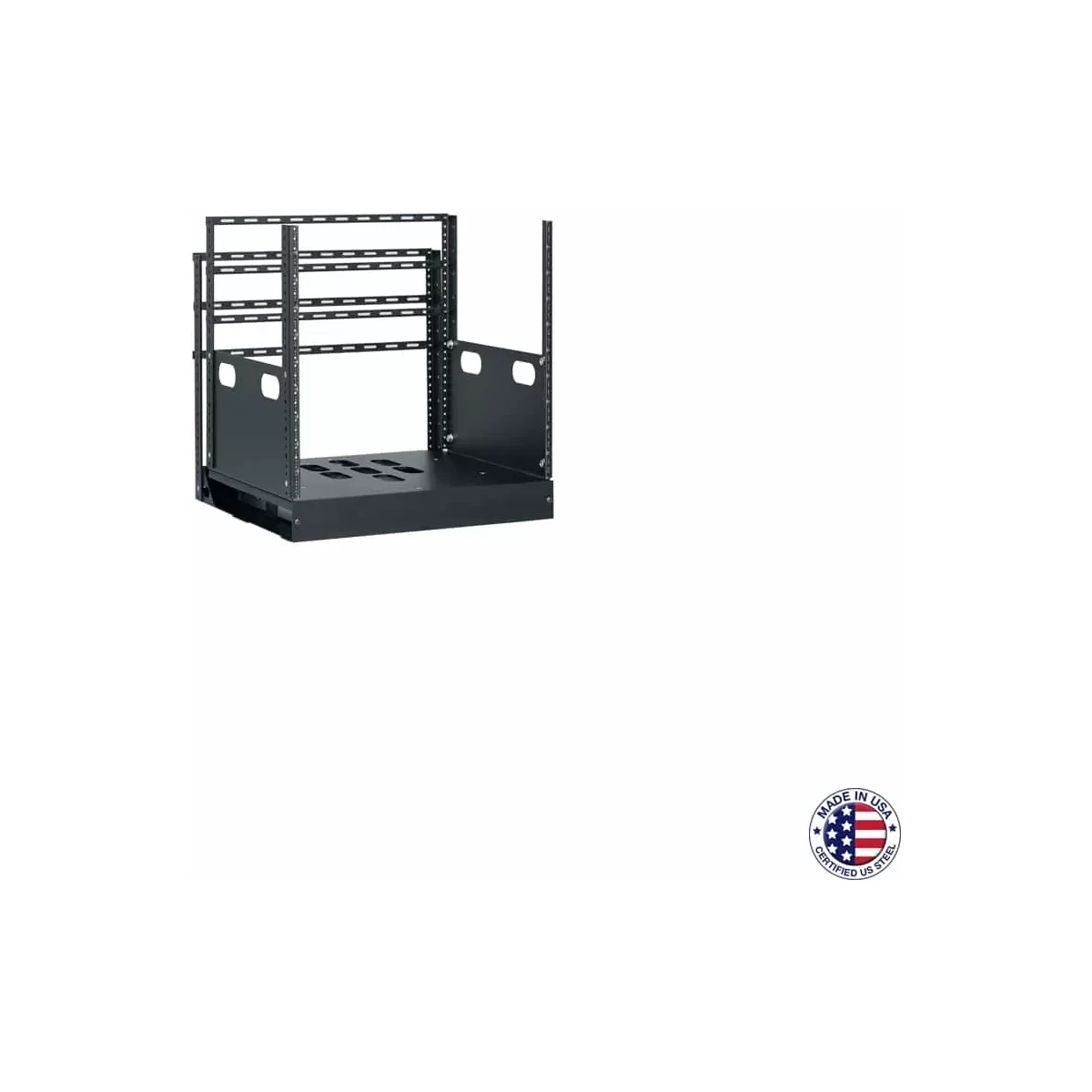

Lowell LPTR4-1019 Pull & Turn Rack 10Ux19D

The Lowell LPTR4-1019 is a 10U pull-and-turn rack for equipment built into credenzas and cabinetry. Its upper section slides forward on four base rails, then turns left or right and locks at 60 or 90 degrees, putting rear connections in front of the installer.

The removable base mounts flush or recessed up to 1.75 in. and includes a turntable with push-button release, rated for 250 lbs. Four 11-gauge corner-post rails are tapped 10-32, and six lacing bars organize cables. The rack measures 20.15 in. H x 19.13 in. W x 19.68 in. D (19 in. usable) and ships unassembled in two cartons. Smooth black powder coat, made in the USA, TAA, BAA and EIA/TIA compliant.

  • Load Capacity250 lbs.
  • Construction11-gauge steel corner post mounting rails tapped 10-32
  • FinishSmooth-black powder-coat finish
  • Rack Space10U
  • Height20.15 in.
Rack Space10U
Height20.15 in.
Width19.13 in.
Depth19.68 in. (19 usable)
Load Capacity250 lbs.
Construction11-gauge steel corner post mounting rails tapped 10-32
FinishSmooth-black powder-coat finish
Cable ManagementSix cable lacing bars
