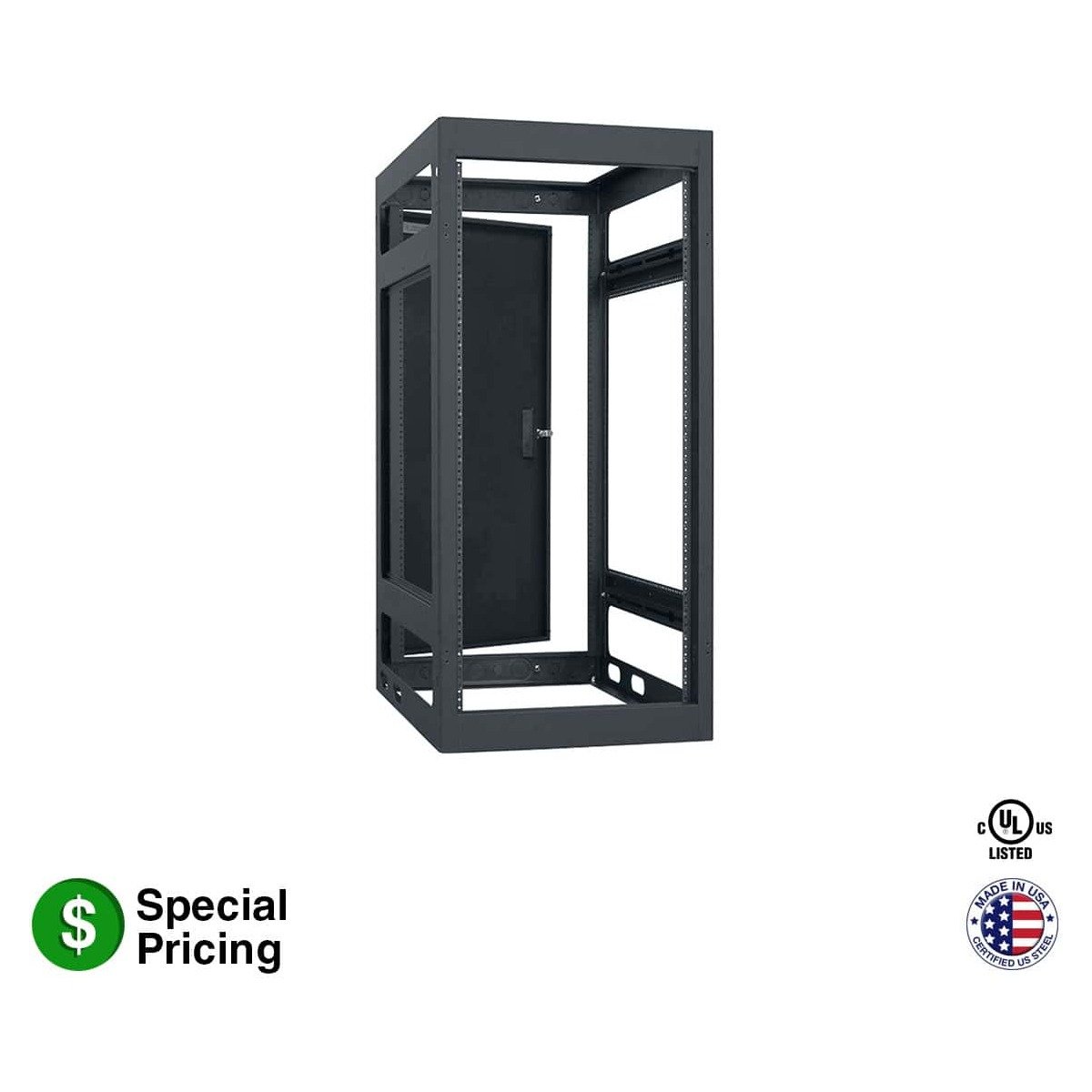

Lowell LGNR-2427 Gangable Narrow Rack 24U x 27D

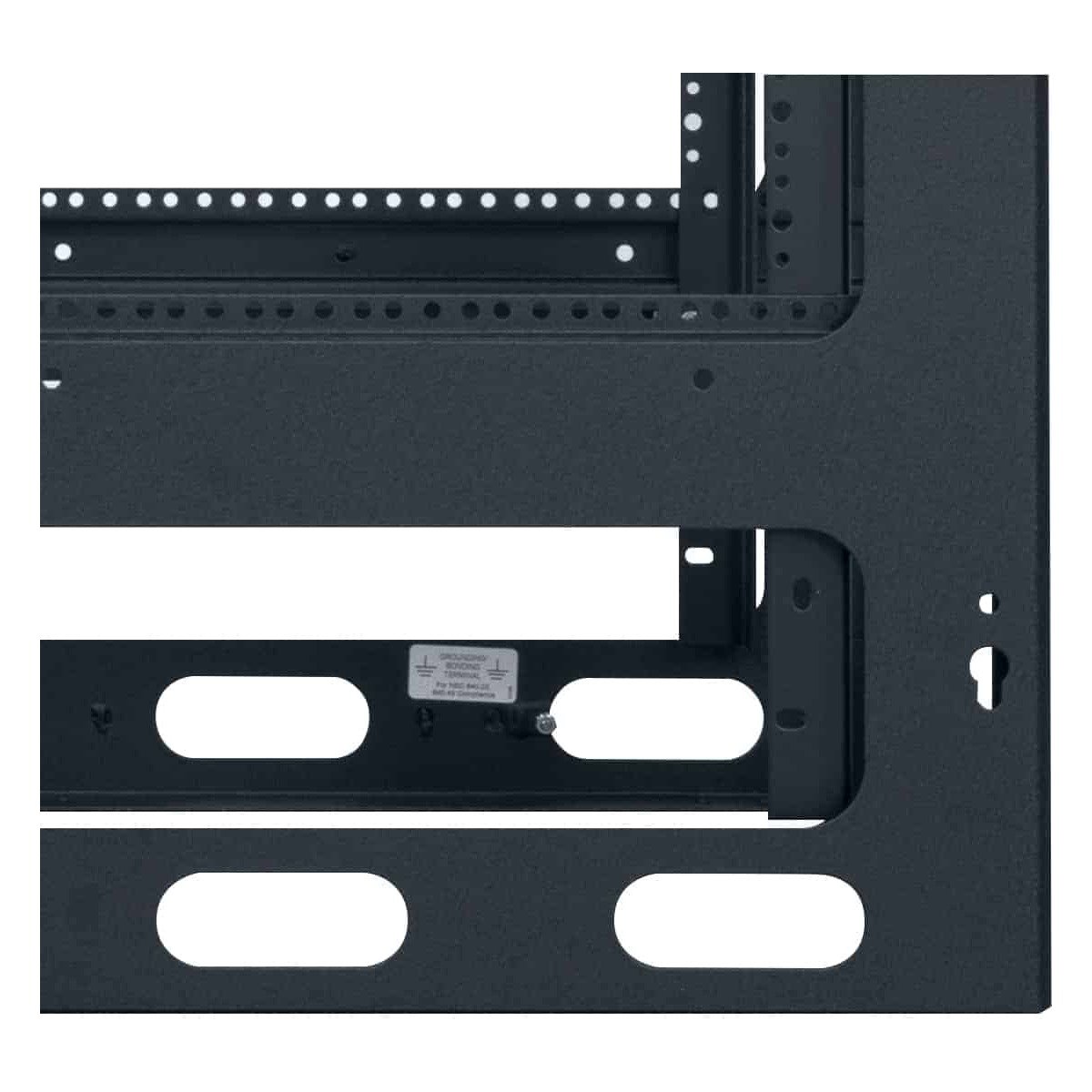

The Lowell LGNR-2427 is an EIA/TIA compliant, UL Listed gangable equipment rack. Lowell specifies configurable top has 10U opening for 19 in. panels, open sides and front (optional door), two-pair fully adjustable rails tapped 10-32 with printed RU scale and pilot Point screws with captive washers.

Ordered as Lowell part number LGNR-2427. Specifications as published by Lowell Manufacturing.

Rack Space	24U
Height	48.13 in.
Width	22.00 in.
Depth	27.00 in. (24.34 usable)
Load Capacity	3150 lbs.
Construction	16-gauge steel
Finish	Black wrinkle textured powder epoxy finish
Cable Management	Multiple lacing points, holes, knockout panels
