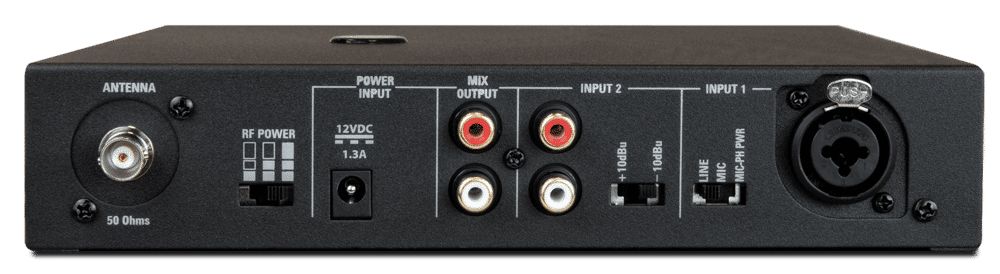

Listen Technologies LT-800 Stationary RF Transmitter

The LT-800 is Listen\'s stationary RF transmitter, broadcasting to belt pack or stationary RF receivers over a 72 or 216 MHz band.

It is available with a Dante input for digitally routed audio, or as Package 1, which bundles the transmitter with an antenna and ADA signage kit for a straightforward first install.

Type	Stationary RF transmitter
Frequency Band	72 MHz or 216 MHz
Format	Analog or Dante
Package Option	Includes antenna and signage kit (-P1)
Channels	57 selectable channels per band
Audio Inputs	2 mixing inputs with a mixed signal output
Frequency Response	50 Hz - 15 kHz, plus or minus 3 dB (72 MHz); 50 Hz - 10 kHz, plus or minus 3 dB (216 MHz)
Signal to Noise Ratio	80 dB or greater
Transmission Range	Up to 3,000 ft (914 m)
Antenna Connector	BNC, 50 ohms
Part Number	LT-800-072-01
