Litepanels GEMINI2X1 Gemini 2x1 w/Yoke
The Gemini 2x1 is the wide one: a two-by-one soft panel that throws a broad, even wash of color-accurate light, which is what you reach for when you need to fill a set or wrap a subject rather than punch a small pool. It reads 97 TLCI at daylight and 99 at tungsten, so faces hold up under it, and four modes cover the work: CCT for bi-color daylight-to-tungsten with plus and minus green offset, HSI for full hue and saturation, Gel mode for menu-selected gels, and an Effects mode for fire, TV, and emergency looks. Dimming runs from 100 percent to zero with no color shift, and it stays flicker-free at any frame rate or shutter angle. Six factory CCT presets step from 2,700K to 6,000K, with six more you can program yourself.

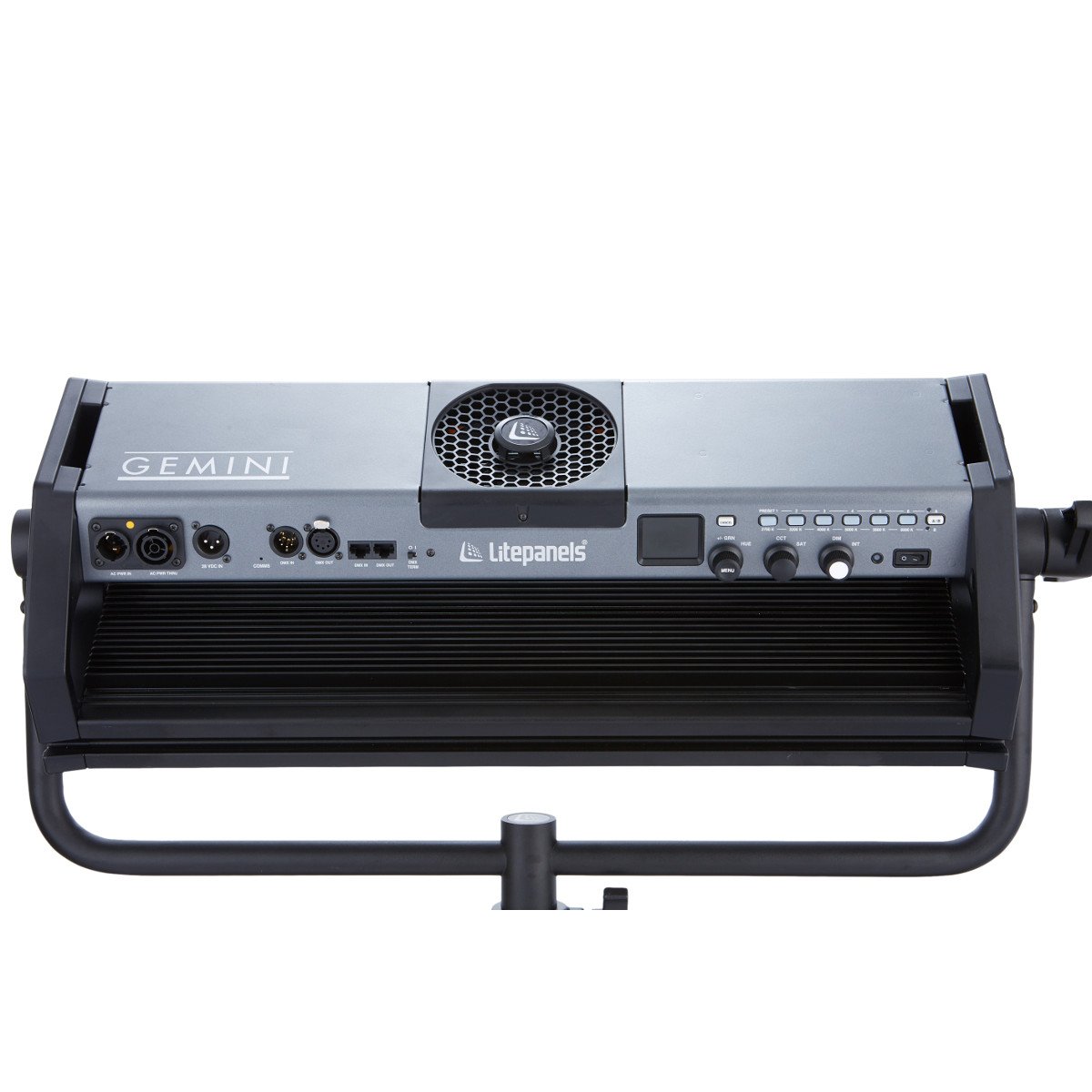

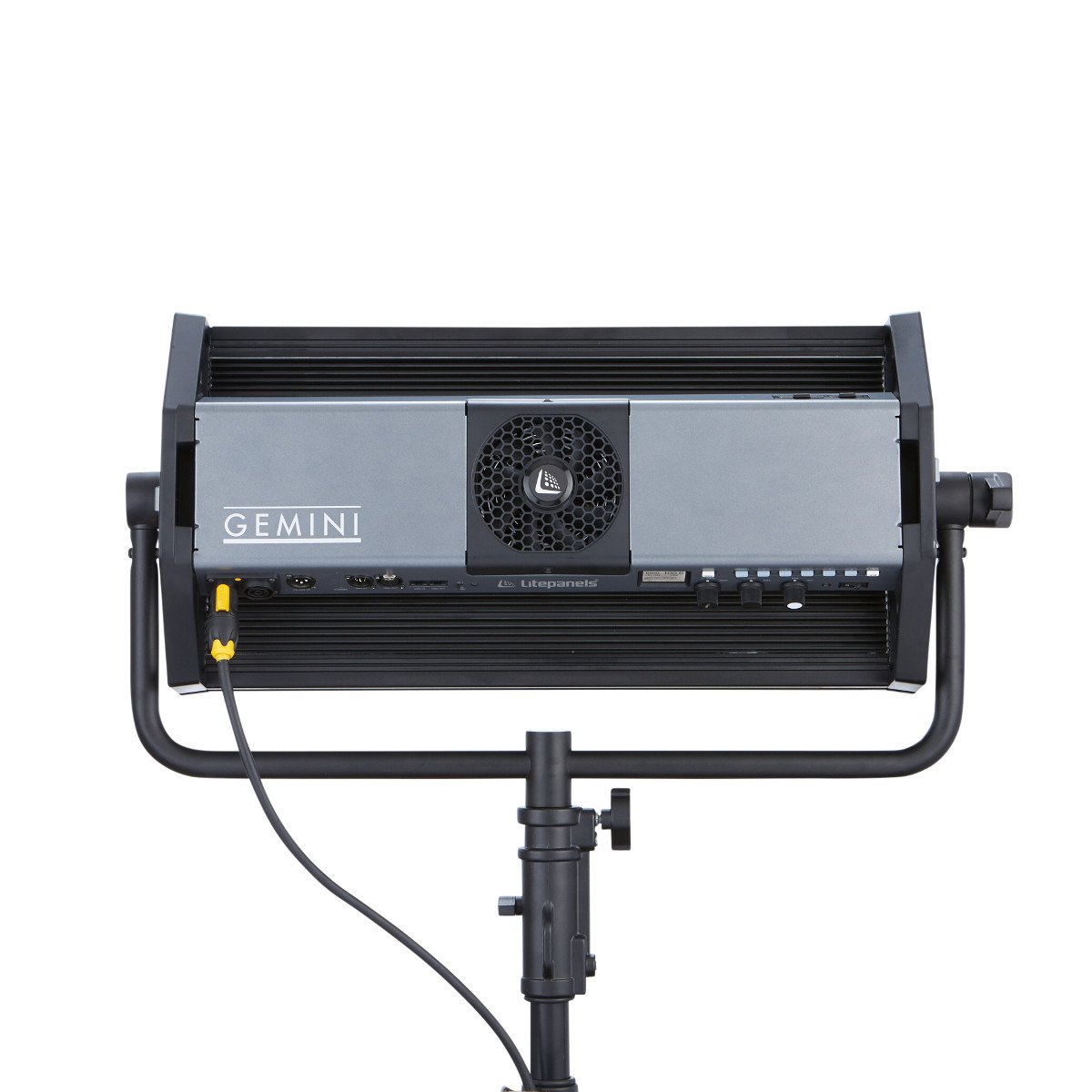

The power supply is built in, so there is no ballast to hang and no restrike to wait through: it takes 100-240VAC through a locking PowerCon connector that will daisy-chain, or 28V DC over 3-pin XLR for mobile power with no drop in intensity, drawing 325W nominal. The aluminum-core housing carries barndoor and honeycomb accessory rails, an LCD shows status at a glance, and the standard yoke mounts on a junior pin. Integrated DMX over 5-pin XLR or RJ45 handles remote dimming and color, with optional wireless DMX or Bluetooth modules, plus a master-replica mode that slaves a group of fixtures to one. This is part 940-1301 and ships with the fixture, yoke, internal power supply, and PowerCon cord.
| CRI / TLCI | 97 Daylight, 99 Tungsten |
|---|---|
| CCT Presets | 2,700K to 6,000K (six factory, six user) |
| Output | 1,079 lux daylight / 906 lux tungsten at 10 ft (3 m) |
| Beam / Field Angle | 93 deg / 157 deg |
| Power Requirements | 28V DC / 100-240VAC |
| Maximum Power Draw | 325W nominal, 350W max |
| Power Supply | 28V DC internal, PowerCon connector (daisy-chainable) |
| Control | DMX (5-pin XLR or RJ45), optional wireless DMX or Bluetooth |
| Mount | Standard yoke with junior pin |
| Size | 25 x 6.5 x 12.5 in. (63.5 x 16.5 x 31.8 cm) |
| Weight | 22.2 lb (10.1 kg) |
| Included | Fixture, yoke, internal power supply, PowerCon power cord (part 940-1301) |
