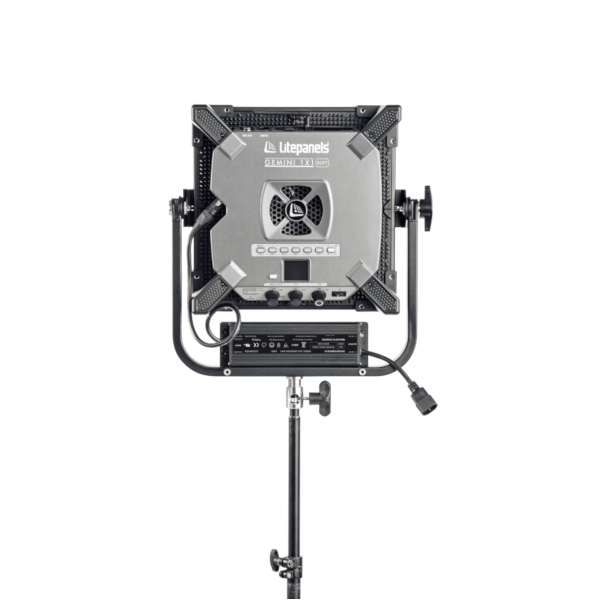

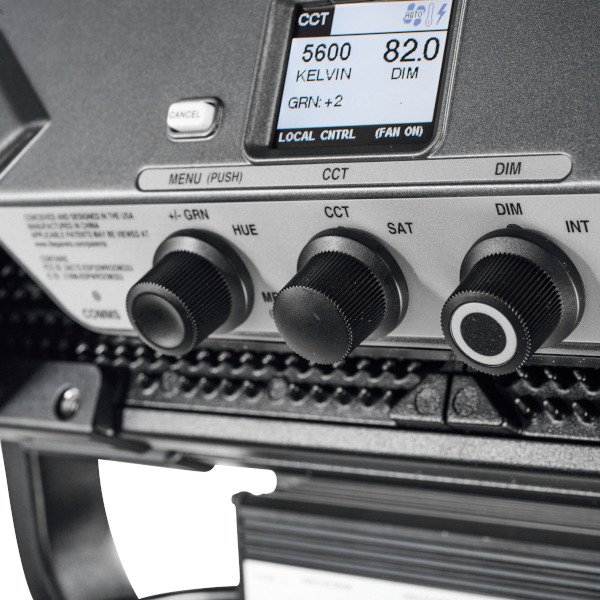

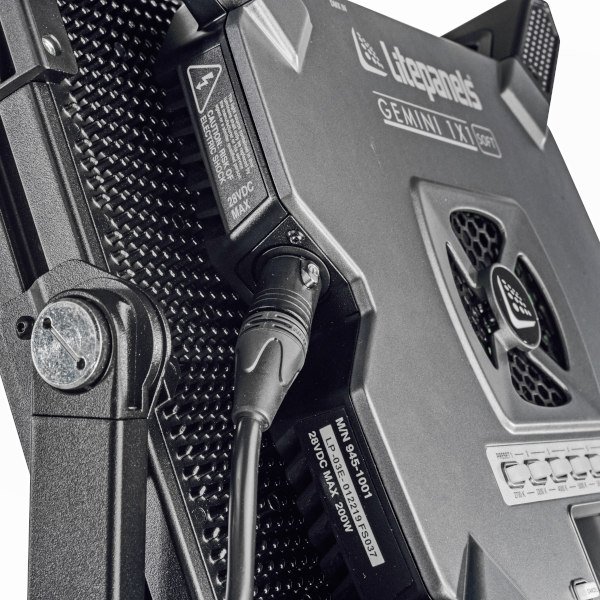

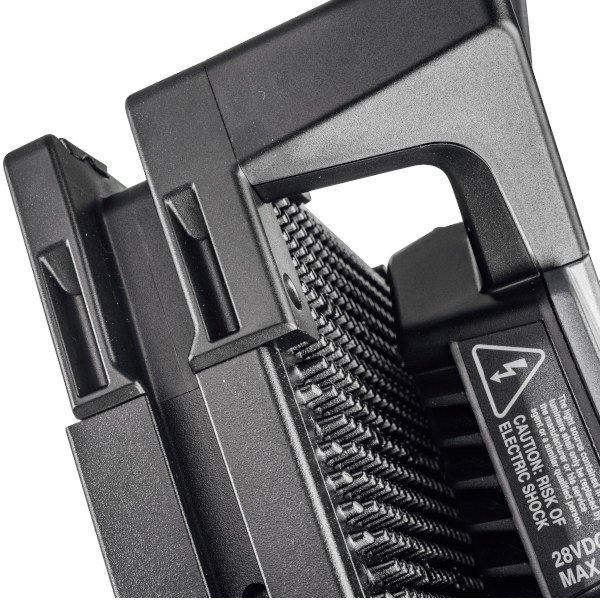

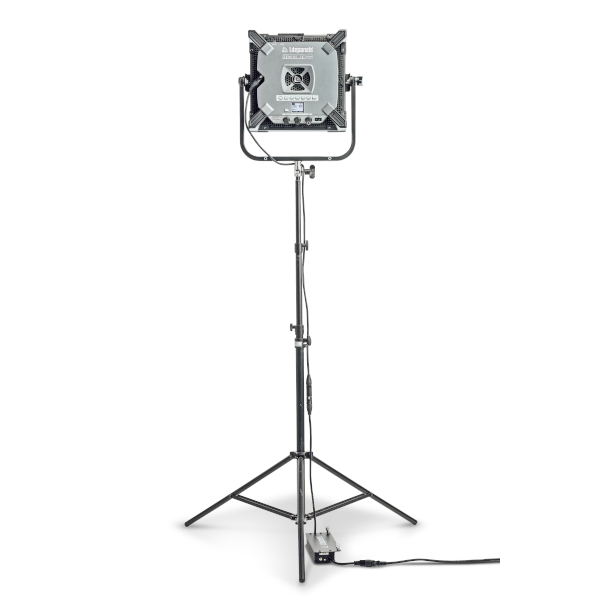

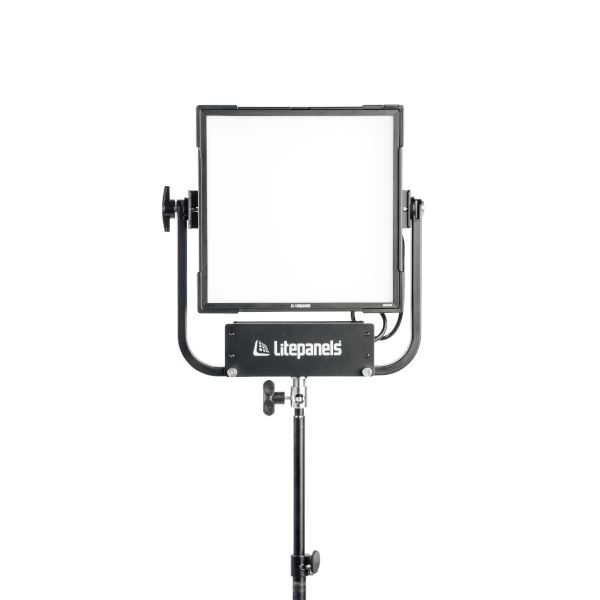

Litepanels Gemini 1x1 Soft RGBWW LED Panel (Pole-Operated Yoke)

This is the same Gemini 1x1 Soft RGBWW panel Litepanels builds for the 945-1301, fitted instead with the pole-operated yoke. That yoke is the whole point: once the fixture is up in a grid or on a high stand, you tilt and lock it from the floor with a lighting pole instead of climbing to it. Everything behind the diffusion is unchanged, so you still get accurate daylight and tungsten white across 2,700-10,000K, full hue and saturation control, gel presets, and an effects engine, with CRI/TLCI of 97 at daylight and 94 at tungsten and flicker-free dimming down to 0.1 percent.

It draws 200W and runs on 100-240VAC or 13-28V DC, so it works on mains in a studio or off V-Mount and Gold Mount batteries on an optional plate out on location. Control is over DMX by 5-pin XLR or RJ45, or wirelessly through the built-in WiFi, Bluetooth, and the SmartLite Director app, which is what you want when the fixture is rigged out of arm's reach. This is part 945-1311 and ships with the pole-operated yoke and a US power cable.

LED TechnologyRGBWW
Color Temperature2,700-10,000K
CRI / TLCIDaylight 97, Tungsten 94
Output614 lux daylight / 557 lux tungsten at 10 ft (3 m)
Beam / Field Angle95 deg / 157 deg
Power Consumption200W nominal
Voltage Range100-240VAC, 13-28V DC
Dimming100% to 0.1%

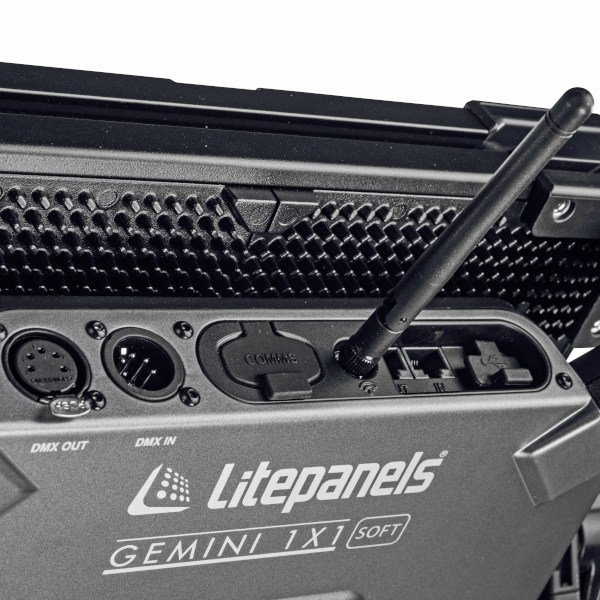

ControlBuilt-in WiFi, DMX (5-pin and RJ45), Bluetooth, optional wireless DMX

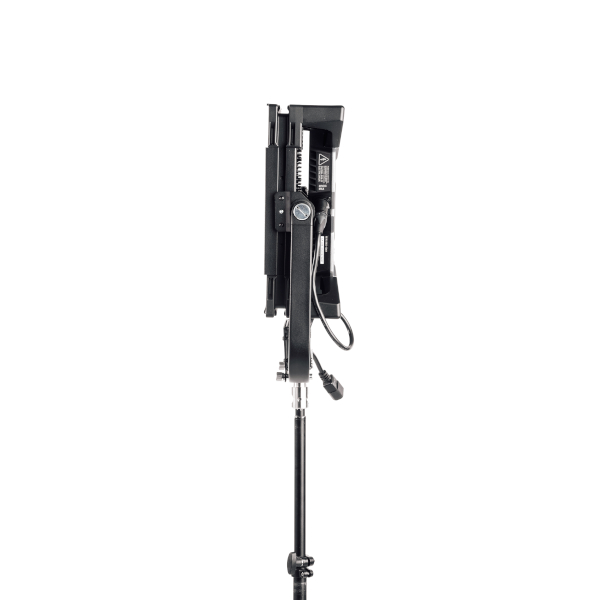

MountPole-operated yoke
IncludedFixture, pole-operated yoke, US power cable (part 945-1311)
Introducing the Litepanels Gemini 1x1 Soft RGBWW LED Panel (shown with standard yoke)
