Lexicon Lambda Studio 4x2x2 USB Recording Interface

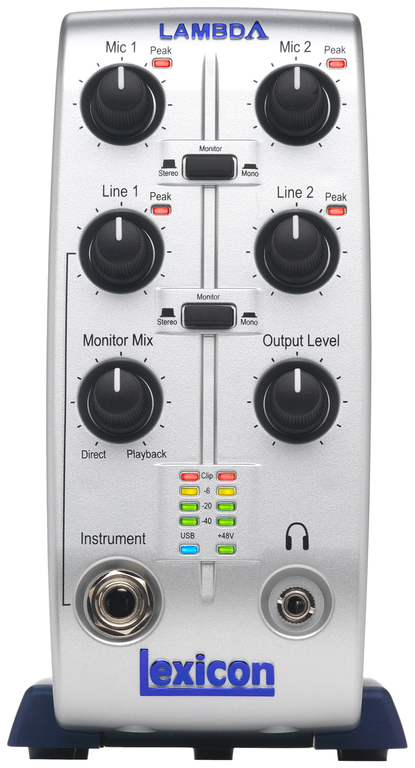

The Lambda Studio is a USB-powered 4x2x2 desktop recording interface, built to give a PC or Mac the mic preamps and converters for tracking two sources at once at 24-bit resolution. Two low-noise mic preamps with phantom power cover studio condensers, a stereo line input handles keyboards or a CD/MP3 source, and a high-impedance front-panel input takes a guitar or bass direct, with TRS inserts available for outboard compressors or EQ.

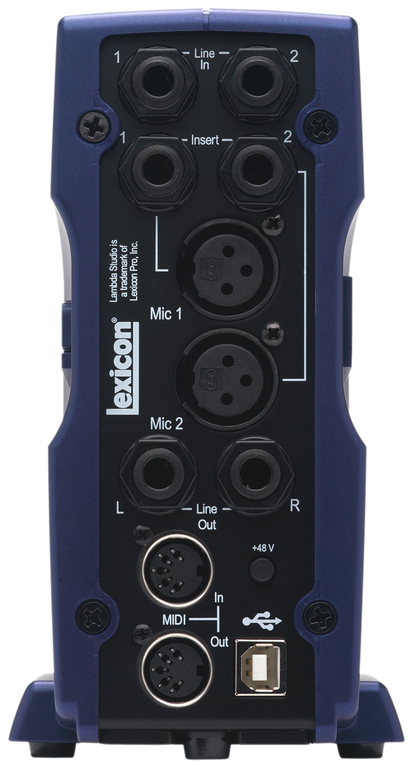

Monitoring runs through balanced TRS line outputs to powered speakers and a front-panel headphone jack with its own amplifier, and a 2-channel 4-segment bargraph meters converter levels. MIDI in and out are fully opto-isolated, and the whole interface draws its power over USB with nothing else to plug in.
| Configuration | 4 inputs x 2 outputs x 2 (4x2x2) |
|---|---|
| Mic Preamps | 2, with phantom power |
| Line Inputs | Stereo, RF-filtered TRS active-balanced |
| Instrument Input | High-impedance, front panel |
| Outputs | Balanced TRS line outputs; front-panel headphone jack with amplifier |
| MIDI | Opto-isolated in/out, synced to USB frame rate |
| Bit Depth | 24-bit recording |
| Power | USB bus powered |
