Kramer VM-214DT 2x1:4 4K60 4:2:0 HDMI & Extended-Reach HDBaseT with Ethernet, RS-232, IR & Stereo Audio Switchable DA

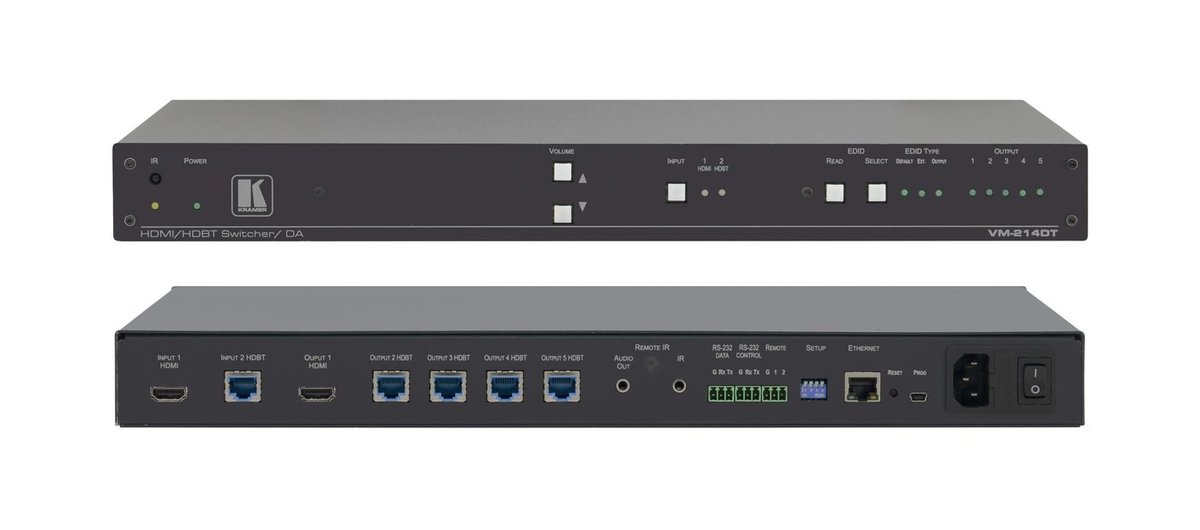

The Kramer VM-214DT is a 2x1:4 4K@60Hz (4:2:0) HDMI and extended-reach HDBaseT distribution amplifier. It reclocks and equalizes the signal and distributes it to four identical HDBaseT outputs and a looping HDMI output, and offers a choice of control options plus audio de-embedding.

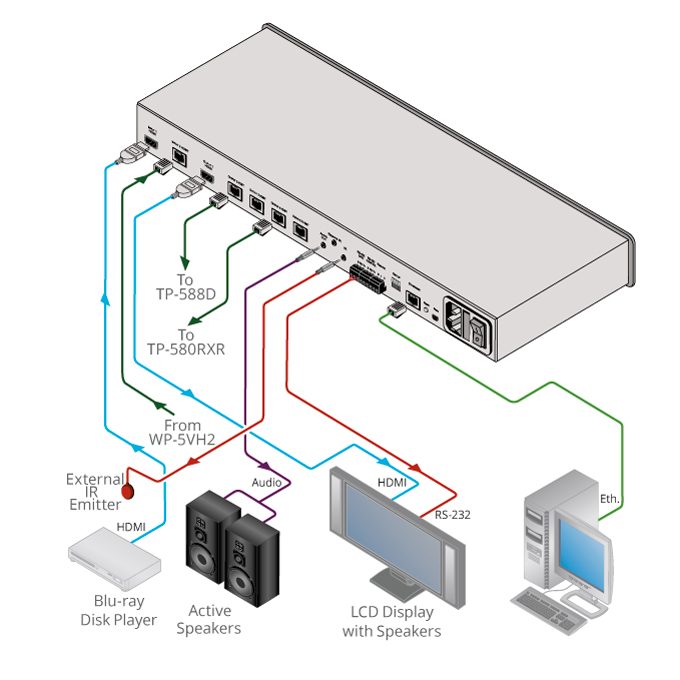

Typical placements: Distributing one selected HDMI or HDBaseT source to four remote HDBaseT-connected displays with de-embedded audio at the source end; Conference rooms and classrooms needing extended-reach distribution with RS-232 and IR pass-through. Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables. Intelligent EDID handling and processing algorithm ensures Plug and Play operation for HDMI systems.

INPUTS	1 HDMI connector, 1 HDBT twisted pair on an RJ-45 connector
OUTPUTS	1 HDMI connector, 4 HDBT twisted pair on RJ-45 connectors
MAX. DATA RATE	10.2Gbps (3.4Gbps per graphic channel, HDMI)
COMPLIANCE	Supports HDMI and HDCP
CONTROLS	Input select button, EDID select button, panel lock button, RS-232, local and remote IR controls
POWER CONSUMPTION	100-240V AC 50/60Hz 16VA
PRODUCT DIMENSIONS	19" x 7.20" x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
PRODUCT WEIGHT	1.6kg (3.4lbs) approx.
INCLUDED ACCESSORIES	Power cord, rack ears
