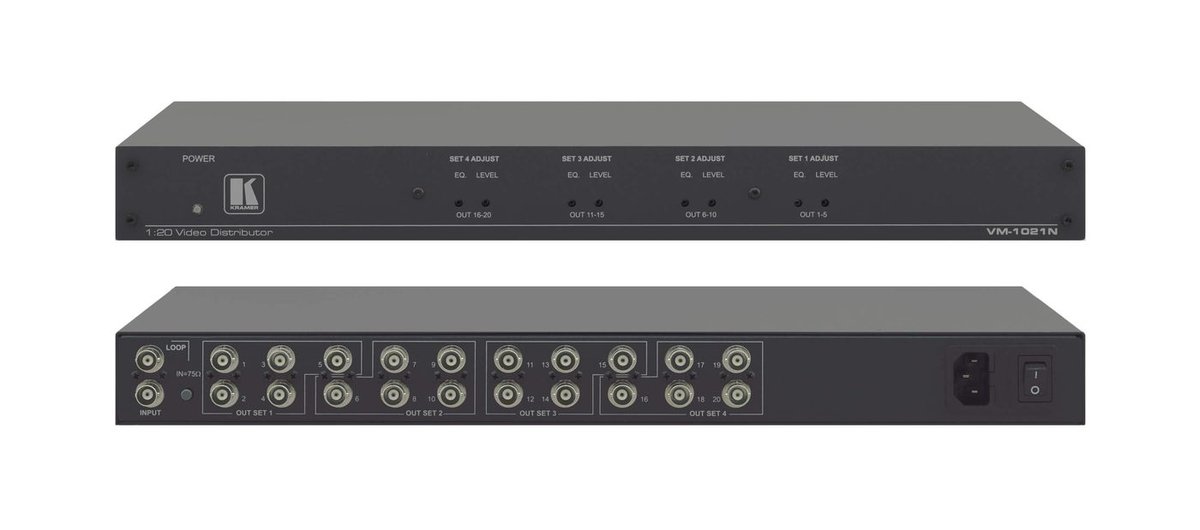

Kramer VM-1021N 1:20 Composite/SDI Video Distribution Amplifier

The Kramer VM-1021N is a high-performance distribution amplifier for composite or SD-SDI video signals. It provides controls to compensate for signal losses inherent in long cable runs.

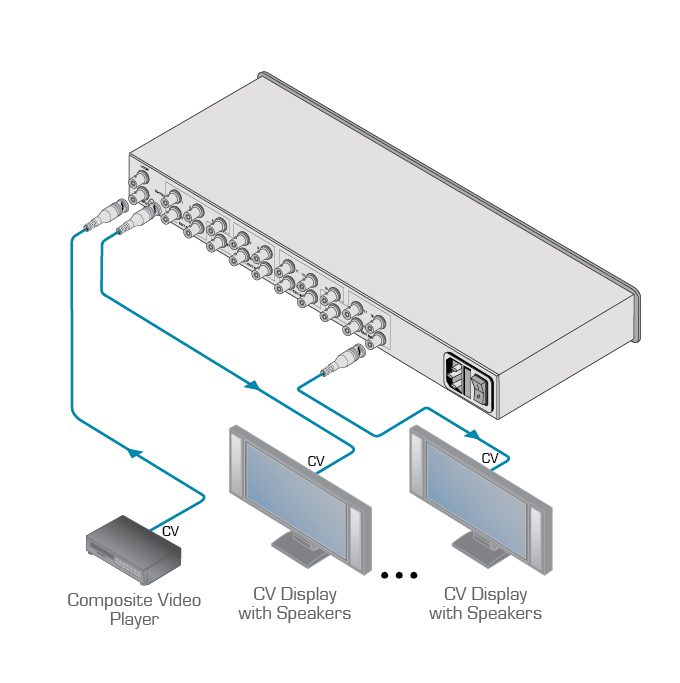

Typical placements: Broadcast, production and studio facilities splitting one composite or SD-SDI feed to twenty displays or monitors; Video walls and monitor farms needing signal re-amplification across long cable runs.

INPUT	1 composite video/single component with loop, 1Vpp/75 ohm on a BNC connector with termination switch
OUTPUTS	20 composite/component video, 1Vpp/75 ohm on BNC connectors
VIDEO BANDWIDTH (-3dB)	350MHz
VIDEO S/N RATIO	74dB
CONTROL	Level: -1.1dB to +2.7dB; EQ.: 0 to 2.9dB @4.4MHz
COUPLING	DC
POWER CONSUMPTION	230V AC, 50/60Hz (115V USA), 6.7VA
DIMENSIONS	19" x 7" x 1U W, D, H, rack mountable
WEIGHT	2.6kg (5.7lbs) approx.
