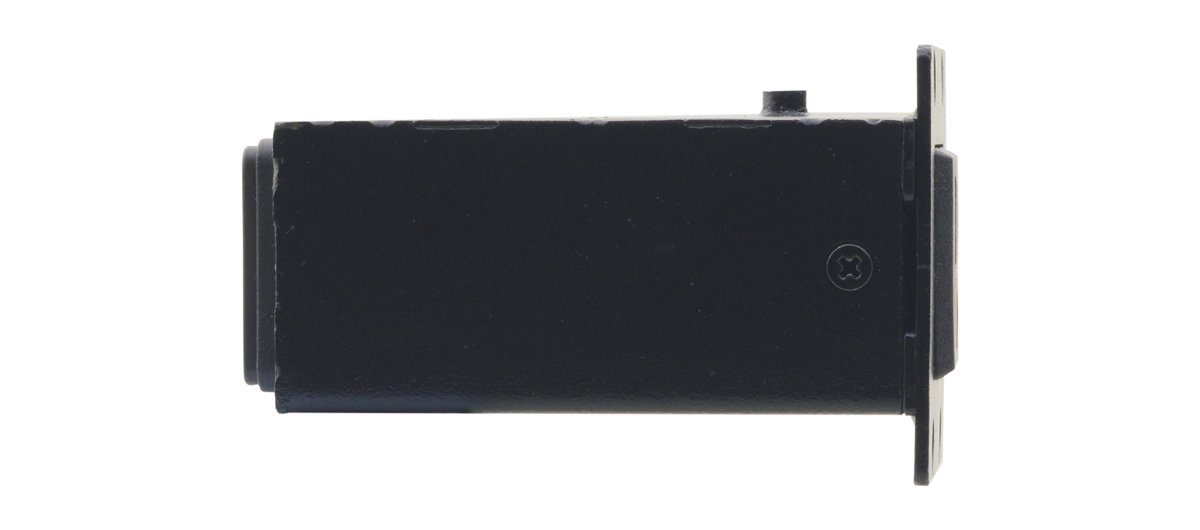

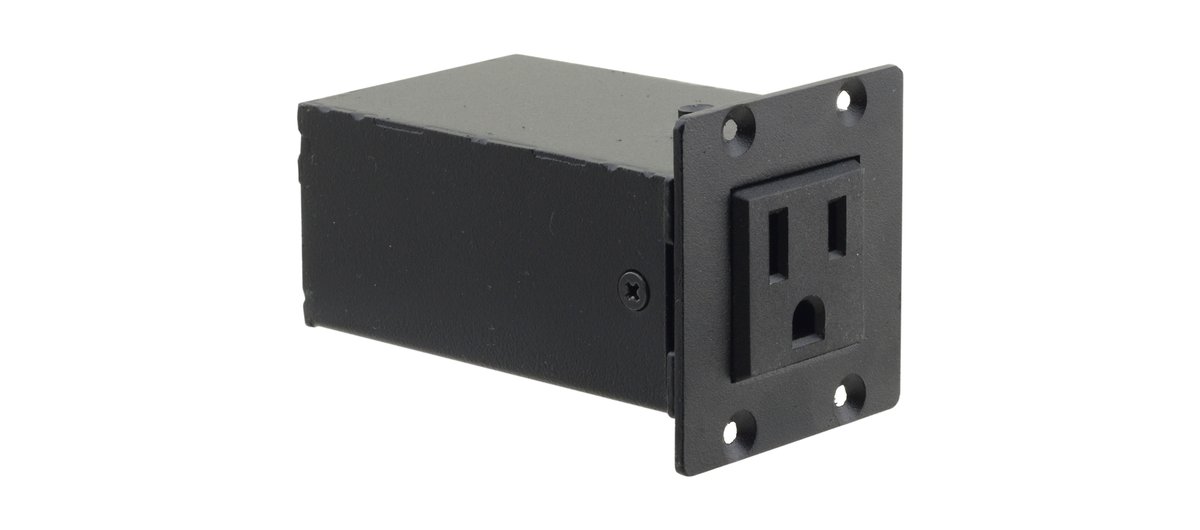

Kramer TS-1WUS Dual Insert US Power Socket Module
The Kramer TS-1WUS is a US power socket module that takes up two insert slots rather than a full socket opening, for Kramer TBUS inner frames and the under-table UTBUS. It puts one US outlet in a table box that has insert space to spare, so a laptop charger can plug in beside the HDMI and USB inserts.
It screws into the inner frame or UTBUS with the four M3x5 screws supplied, handles 100-120V AC at 50/60Hz up to 5A, and is UL certified. The matching power cord is the 6 ft C-AC/US (P/N 91-000099), sold separately. The module is black and measures 4.60 x 3.40 x 7.20 cm (1.81 x 1.34 x 2.83 inches).
| Easy Installation | Modular, screws into inner frame and UTBUS |
|---|---|
| Power Handling | 100-120V AC, 50/60Hz, maximum 5A |
| Description | Dual Insert US Power Socket Module - Black |
| Inputs | 1 AC Power |
| Outputs | 1 AC Power |
| Socket | 1 US power connector |
| Size | Dual insert |
| Fits | TBUS inner frames, UTBUS |
| Included | 4 M3x5 screws |
| Power Cord Option | C-AC/US 6ft 110V (P/N 91-000099) |
| Dimensions | 4.60 x 3.40 x 7.20 cm (1.81 x 1.34 x 2.83 in) |
| Certification | UL |
