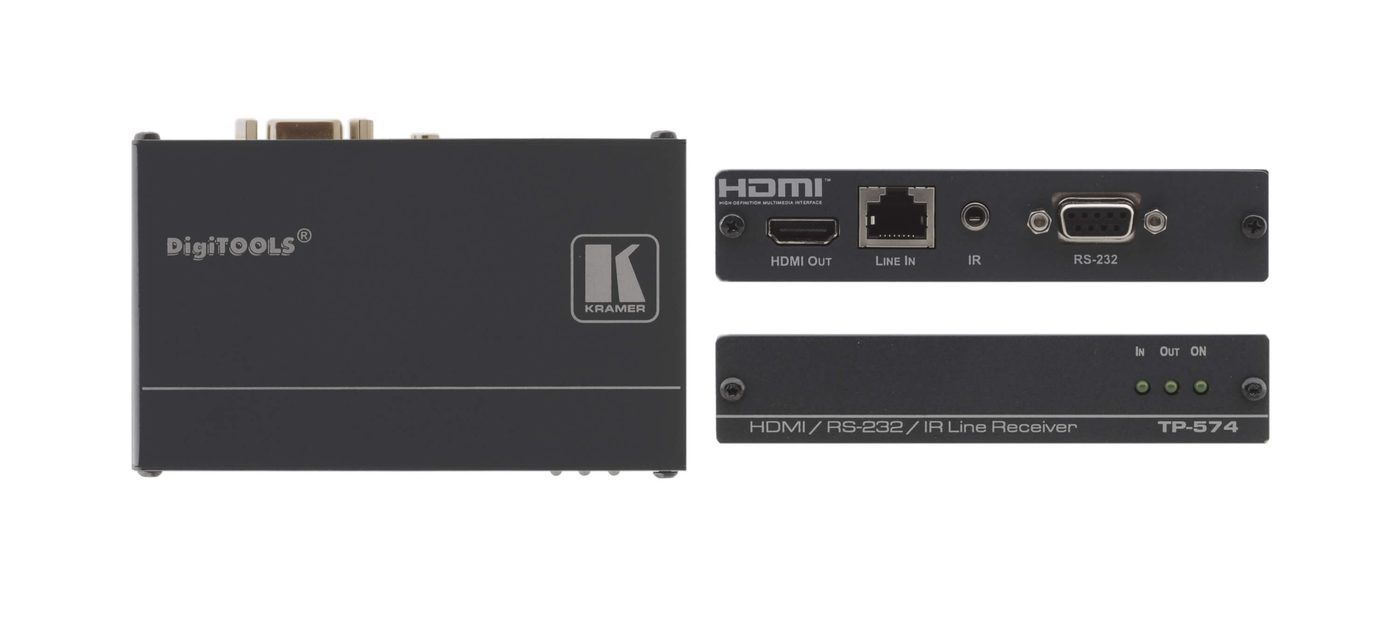

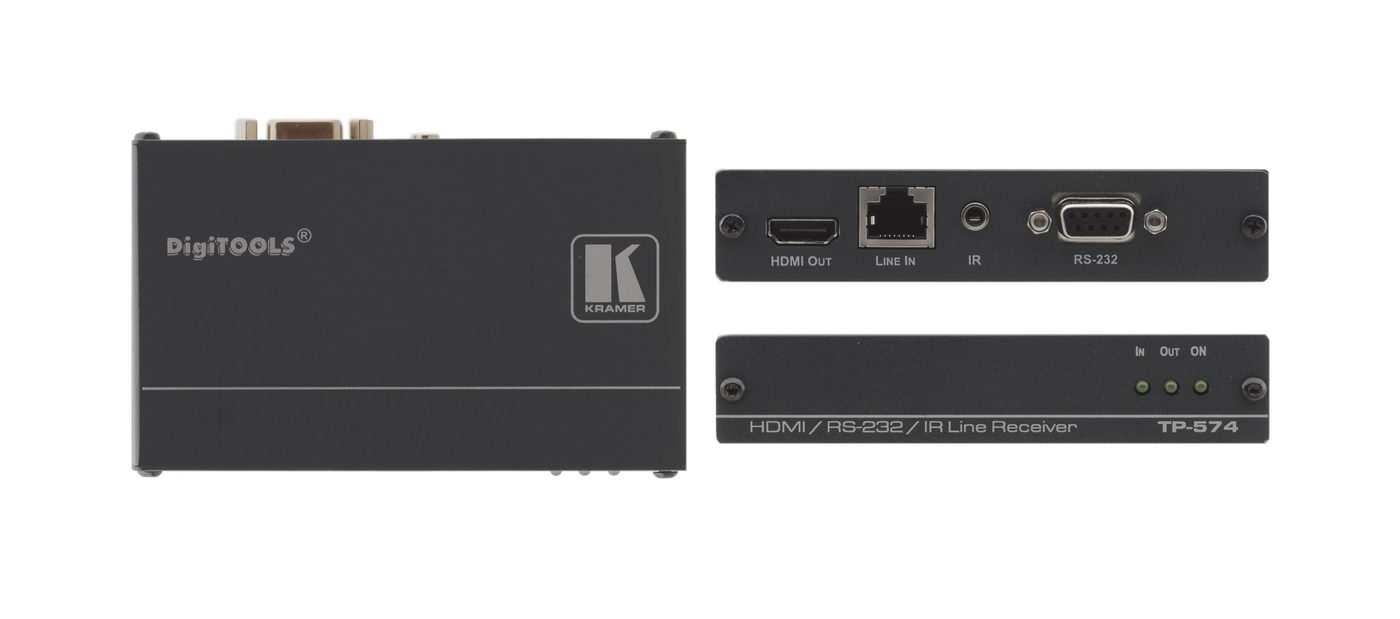

Kramer TP-574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver

The Kramer TP-574 is a DGKat twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals. The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals.

Typical placements: The receive end of a TP-573/TP-574 HDMI twisted-pair extension pair; Display-side termination in conference rooms and classrooms. Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable; up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.

INPUTS	1 CAT 5 IN on an RJ-45 connector
OUTPUTS	1 HDMI connector, 1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-sub connector
BANDWIDTH	4.95Gbps (1.65Gbps per graphic channel)
COMPLIANCE	Supports HDMI and HDCP
POWER CONSUMPTION	12V DC from TP-573
DIMENSIONS	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H
WEIGHT	0.3kg (0.67lbs) approx.
