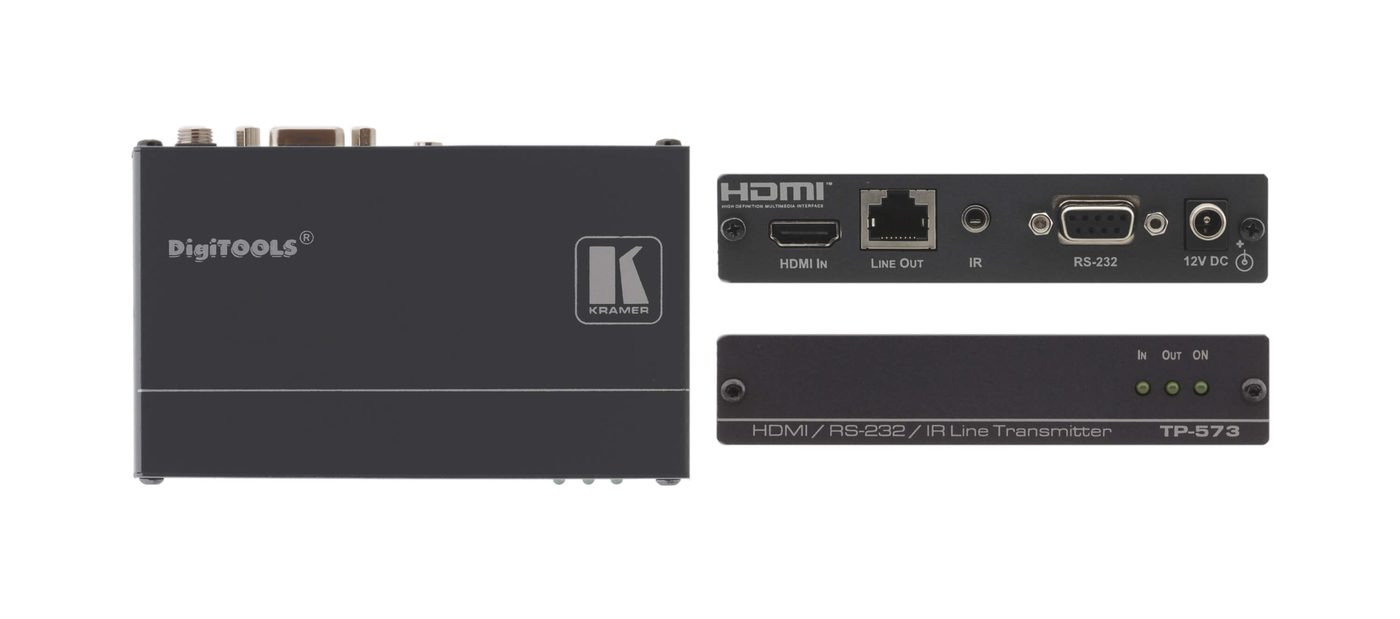

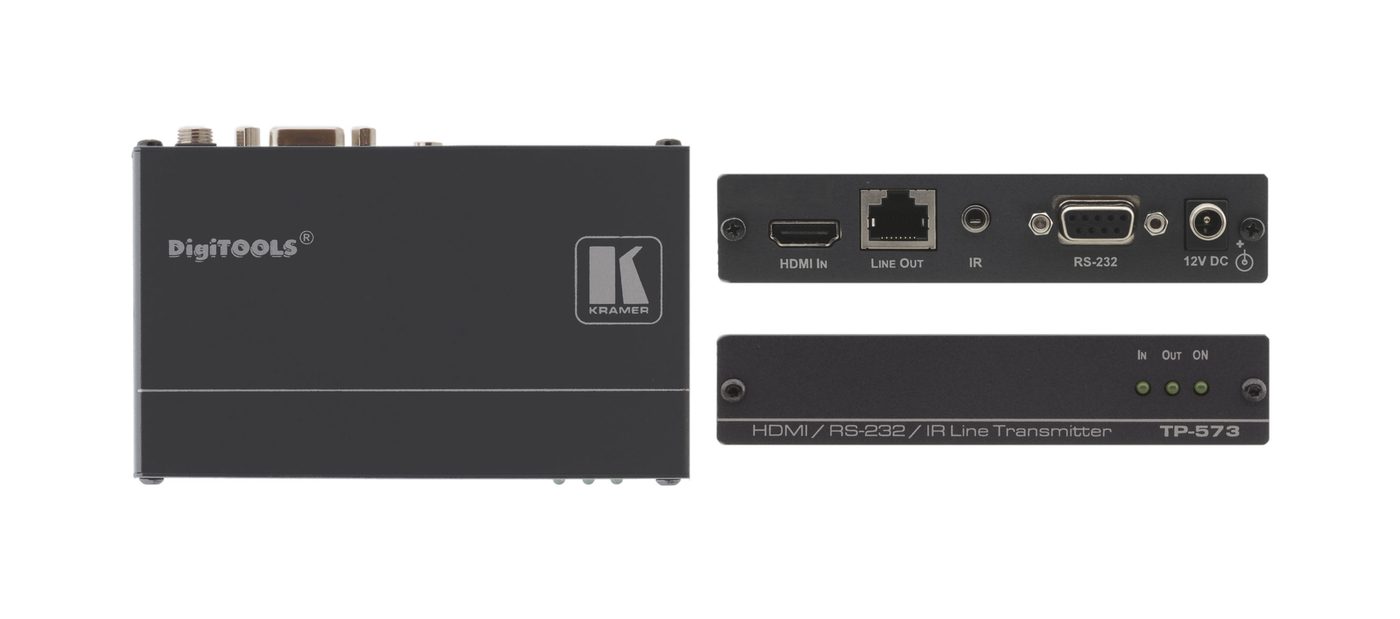

Kramer TP-573 HDMI, Bidirectional RS-232 & IR over Twisted Pair Transmitter

The Kramer TP-573 is a DGKat twisted pair transmitter for HDMI, bidirectional RS-232 and infrared signals. The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals.

Typical placements: Extending an HDMI source with bidirectional RS-232 and IR control to a display over long twisted-pair runs; Conference room and classroom installs where the source lives far from the display. Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat cables designed specifically for optimum performance. Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable; up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable.

INPUTS	1 HDMI connector, 1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-sub connector
OUTPUTS	1 CAT 5 OUT on an RJ-45 connector
BANDWIDTH	4.95Gbps (1.65Gbps per graphic channel)
COMPLIANCE	Supports HDMI and HDCP
POWER CONSUMPTION	12V DC, 510mA
DIMENSIONS	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H
WEIGHT	0.3kg (0.67lbs) approx.
INCLUDED ACCESSORIES	12V DC power supply
