Kramer RCP-1616 Remote Panel for 1616HD-3G

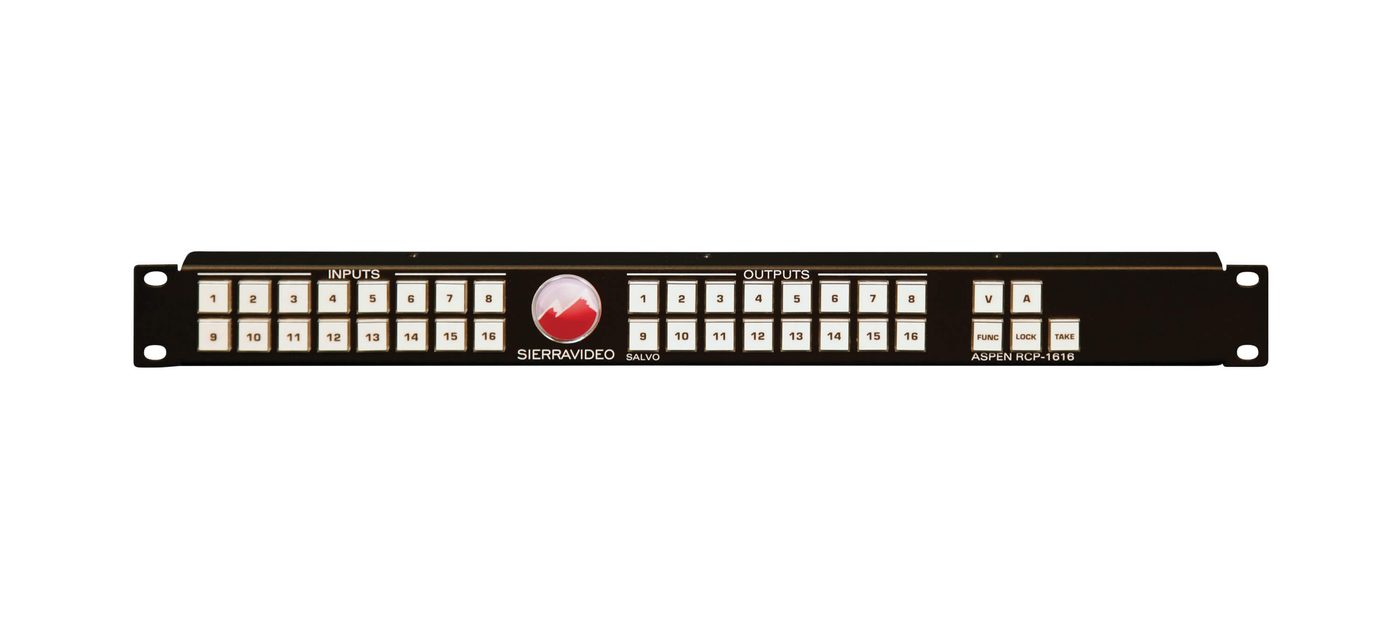

The Kramer RCP-1616 is a remote control panel that duplicates every button and function of the 1616HD-3G matrix switcher's front panel. It lets the matrix live in an equipment room while the operator routes 16 inputs to 16 outputs from a control position.
Its 37 back-lit, multi-color LED buttons cover 16 inputs, 16 outputs and 5 control functions. It connects directly to the switcher or over a network through 10/100 Base-T Ethernet, runs on 12 V DC, and fits a standard 19-inch rack in 1U. It draws 3.5 W maximum.
| Operating Temperature | 0-45C |
|---|---|
| Dimensions | 1.75" (44.5mm) x 19" (483mm) x 1.25" (32mm) |
| Weight | 1.4lbs (0.7kg) |
| AC Input Range | 100-240V, 50-60Hz |
| Max AC Power | 3.5W |
| Ethernet (1) | 10/100 Base-T (RJ-45) |
| Buttons | 37 back-lit multi-color LED (16 input, 16 output, 5 control) |
| Rack Size | 1U |
