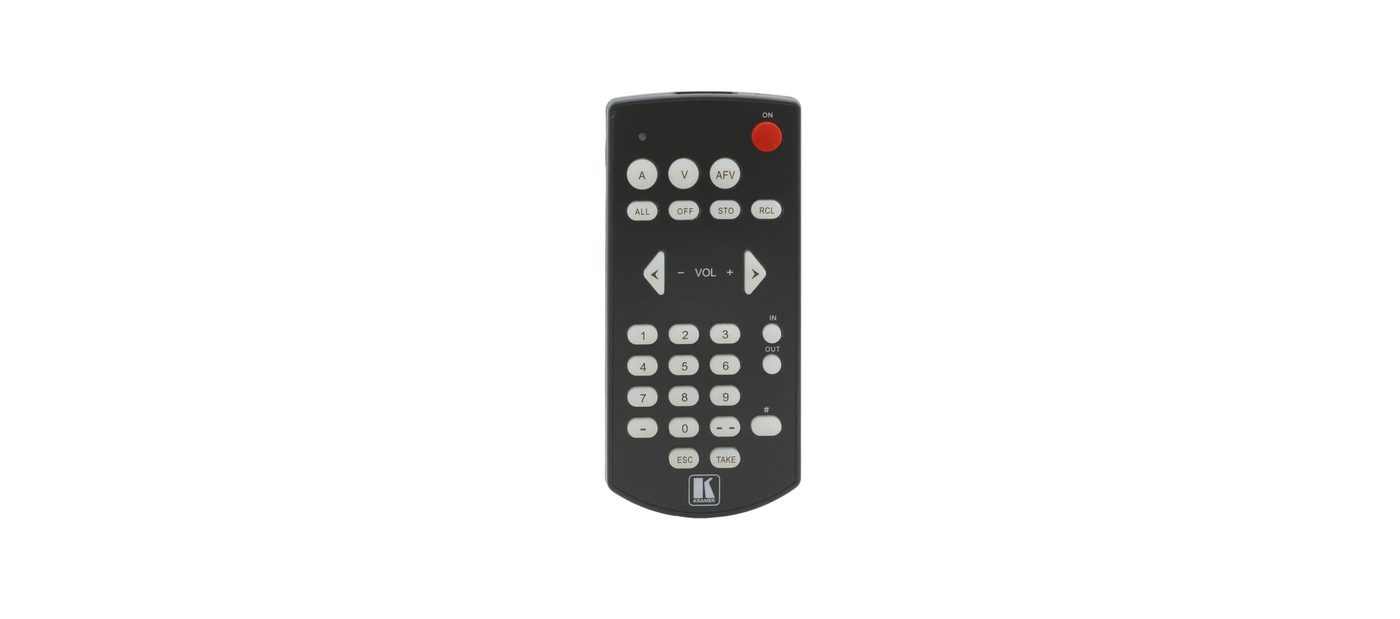

Kramer RC-IR3 Compact Infrared Remote Controller
The Kramer RC-IR3 is an infrared wireless remote control for Kramer's IR-controllable switchers, able to address up to 96 inputs and 96 outputs. Because it carries the protocols of the whole Kramer range and is programmable, one handset covers a rack of different machines.
Ninety-nine memory locations store multi-switch presets that can be recalled and executed as a unit, and the memory is non-volatile so the last setting survives a power interruption. Range is up to 15m (50ft) to a built-in receiver, or 60m (200ft) using the optional C-A35M/IRR-50 external IR receiver with three extension cables. It runs on two AAA alkaline cells at 10mA, and batteries are included.
| POWER CONSUMPTION | 2 AAA size regular 1.5V alkaline batteries, remote current: 10mA |
|---|---|
| INCLUDED ACCESSORIES | Batteries |
| Function | Infrared wireless remote for Kramer IR-controllable switchers |
| Switching Capacity | Up to 96 x 96 inputs and outputs |
| Memory Locations | Stores up to 99 multi-switch presets |
| Memory Type | Non-volatile, retains last setting after power loss |
| Range | Up to 15 m (50 ft), or 60 m (200 ft) with the optional C-A35M/IRR-50 external IR receiver and 3 extension cables |
| Programming | Universal, includes the protocols of all Kramer devices |
