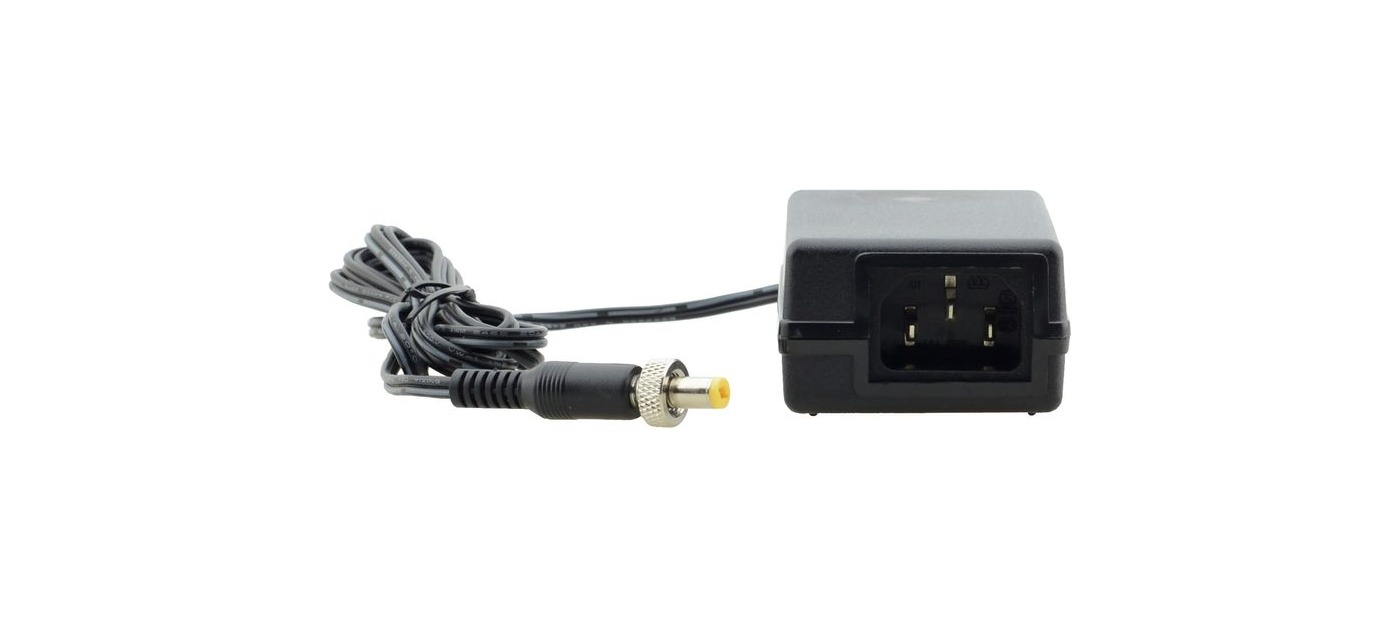

Kramer PS-1202 Desktop Power Supply, 12V DC/2A

The PS-1202 is Kramer's small desktop supply for any 12V DC/2A device in the catalog, built around the same 24W transformer and lockable output cable across three connector styles. The standard version ends in a 5.5mm/2.1mm barrel plug; the -4 swaps in a 1.7mm plug specifically for Kramer's KT-208 and KT-208WM touch panels; the -O is an open head with bare tinned leads for hardwiring into an enclosure or a third-party device.

All three share the same 100-240V AC universal input, a 6ft output cable, and the compact 9.6 x 5.3 x 3.26cm case, so the choice between them comes down to what connector the far end of the install actually needs.

Output	12V DC, 2A max (24W)
Input	100-240V AC
Standard Plug	5.5mm OD / 2.1mm ID DC barrel plug, lockable
Cable Length	6 ft (180cm)
Dimensions (W x D x H)	9.60 x 5.30 x 3.26 cm
Weight	0.2 kg (0.4 lbs) approx.
Operating Temperature	0 to 45 C (32 to 113 F)
Storage Temperature	-20 to 80 C (-4 to 176 F)
