Kramer KDOCK-6 USB-C Hub Adapter

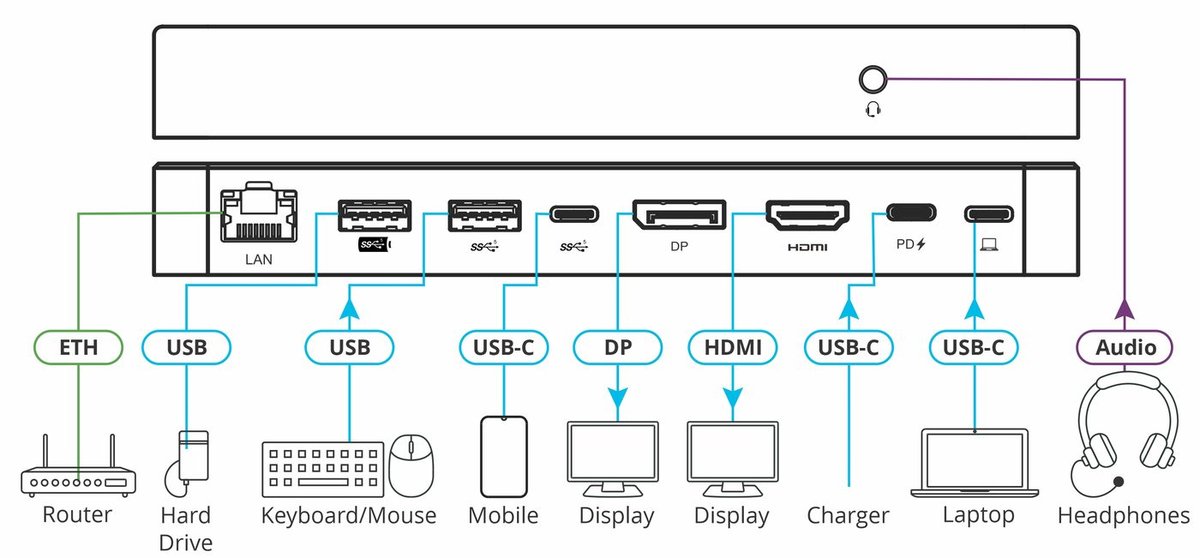

The Kramer KDOCK-6 is a USB-C docking hub built for a two-display desk setup off one cable. It breaks a single USB-C input out to an HDMI output, a DisplayPort output, USB 3.2 Type-A and Type-C data ports, a Gigabit Ethernet port, and a 3.5mm headset jack, so a laptop can drive two monitors and a wired network without a stack of separate dongles.
On Windows, MST mode runs a single display at 4K 60 Hz or two displays at 30 Hz each; on macOS, SST mode drives a single or dual display at 4K 60 Hz. The Ethernet port adds Wake-on-LAN and PXE boot for managed deployments, and 100W of USB-C power delivery keeps the host laptop charged while docked.
| Input | 1 USB-C (female) |
|---|---|
| Outputs | 1 HDMI (female), 1 DisplayPort (female) |
| Ports | USB 3.2 Gen 1 Type-A and Type-C data ports, 1 Gigabit Ethernet (RJ-45), 1 3.5mm headset jack |
| Windows MST Max Resolution | 3840 x 2160P @ 60 Hz (single display) or @ 30 Hz (two displays) |
| macOS SST Max Resolution | 3840 x 2160P @ 60 Hz (single or dual display) |
| Ethernet Extras | Wake-on-LAN (WoL), single MAC address, PXE boot |
| Power Delivery | 100W |
| Enclosure | Aluminum |
