Kramer KDOCK-5 USB-C Hub Adapter

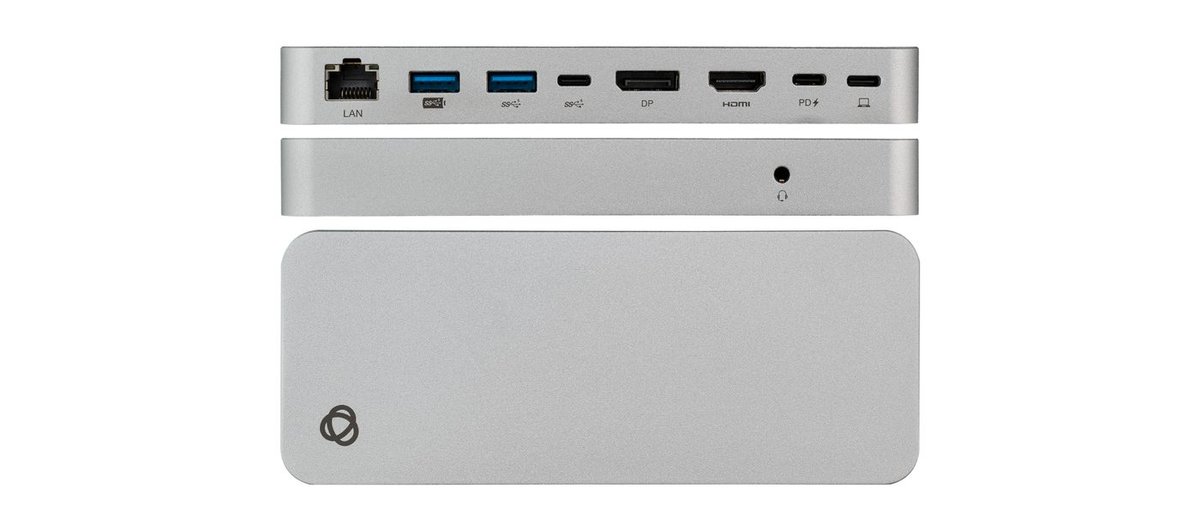

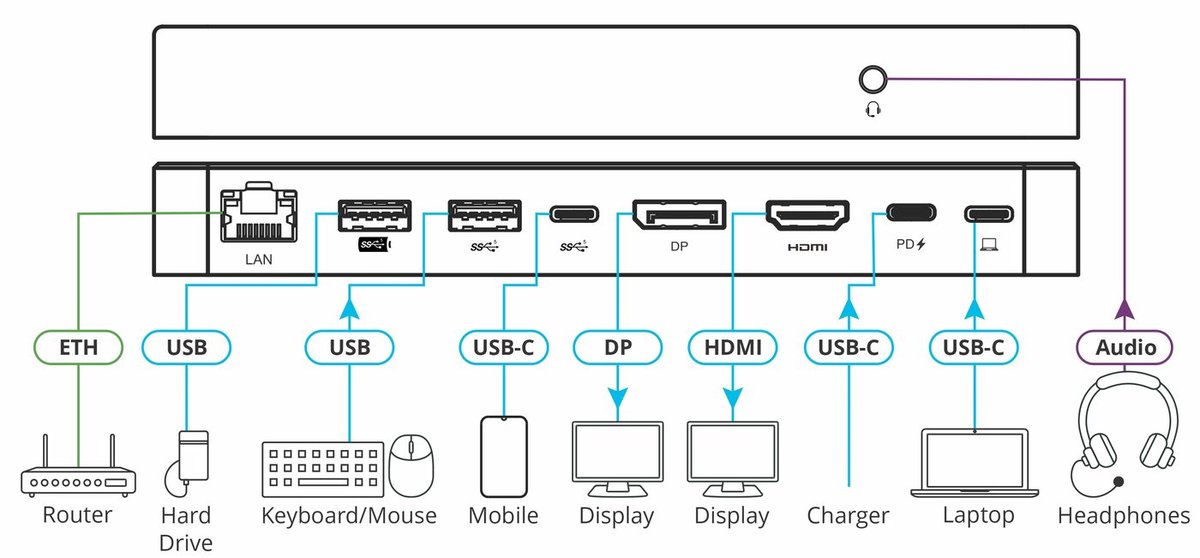

The Kramer KDOCK-5 is a USB-C docking hub for laptops driving two external displays at once. It breaks a single USB-C connection out to an HDMI output, a DisplayPort output, three USB 3.2 Type-A/C ports, a Gigabit Ethernet port, and a 3.5mm headset jack, covering the ports a desk setup needs without a tangle of separate dongles.
On Windows, MST mode drives a single 4K display at 60 Hz or two displays at 30 Hz each; on macOS, SST mode runs a single or dual display at 4K 60 Hz. A 100W USB-C power delivery port keeps the host laptop charged, and the Ethernet port carries Wake-on-LAN and PXE boot for managed-device deployments.
| Input | 1 USB-C (female) |
|---|---|
| Outputs | 1 HDMI (female), 1 DisplayPort (female) |
| Ports | 3 USB 3.2 Gen 1 (2 Type-A, 1 Type-C), 1 Gigabit Ethernet (RJ-45), 1 3.5mm headset jack |
| Windows MST Max Resolution | 3840 x 2160P @ 60 Hz (single display) or @ 30 Hz (two displays) |
| macOS SST Max Resolution | 3840 x 2160P @ 60 Hz (single or dual display) |
| Ethernet Extras | Wake-on-LAN (WoL), single MAC address, PXE boot |
| Power Delivery | 100W |
| Product Weight | 174 g / 0.38 lb approx. |
