Kramer K-CAM4K 4K PTZ Camera, 71-Degree Wide-Angle Lens & 12x Optical Zoom
Ultra-HD camera for premium-clarity video in large spaces. Put every meeting in sharp focus with crystal-clear, ultra-high-definition video capture and advanced, yet easy, control.4K resolution, high-power optical and digital zooms, smooth PTZ operation and multiple outputs, the K-Cam4K takes video conferencing to a new level.
- Sensor1/2.5 inch, CMOS, Max Effective Pixel: 8.51M
- Video FormatYUY2: max to 1080P@30fps
- Video FormatH.264 AVC/SVC: max to 2160P@30fps
- Video FormatMJPEG: max to 4K@30fps
- First Stream Resolution3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408

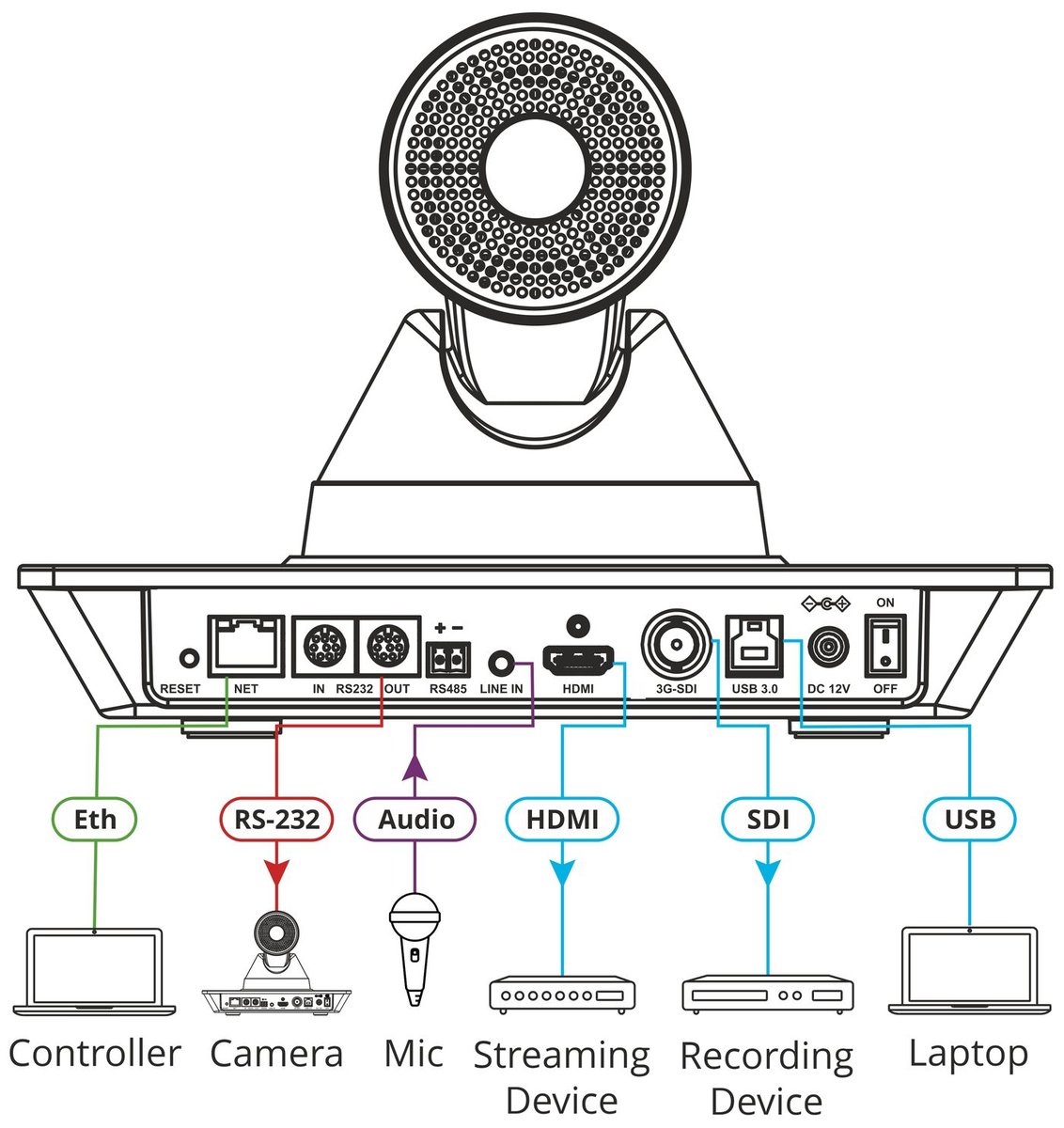

| USB 3.0 | On a USB type B connector Up to 4K@30fps compressed video and 1080P original video can be output |
|---|---|
| RS-232 IN | On an 8-pin Min DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P |
| RS-232 OUT | On an 8-pin Min DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P |
| RJ-45 | 10/100/1000M Adaptive Ethernet Port |
| RS-485 | On a 2-pin phoenix connector, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P |
| Audio Line In | On a 3.5mm mini jack |
| HDMI | On an connector; 3G-: On a BNC connector, 800mVp-p, 75Ω. Along to SMPTE 424M standard |
| Video System | HDMI: 1080P60, 1080P50, 1080I60, 1080I50, 1080P30, 1080P25, 720P60, 720P50, 1080P29.97, 1080I59.94, 1080P59.94, 720P59.94, 4KP29.97, 4KP25, 4KP30 |
| Video System | 3G-SDI: 1080P60, 1080P50, 1080I60, 1080P59.94, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 |
| Sensor | 1/2.5 inch, CMOS, Max Effective Pixel: 8.51M |
| Scanning Mode | Progressive |
| Lens | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| Video S/N | >=55dB |
| Horizontal Angle of View | 71° ~ 8.2° |
| Vertical Angle of View | 42.7° ~ 4.5° |
| Horizontal Rotation Range | ± 170° |
| Vertical Rotation Range | ± 30° |
| Pan Speed Range | 1.6°/s ~ 76°/s |
| Tilt Speed Range | 0.5°/s ~ 15°/s; H & V Flip: Support |
| Image Freeze | Support |
| Number of Presets | 255 |
| Preset Accuracy | 0.1° |
| Video Format | YUY2: max to 1080P@30fps |
| Video Format | H.264 AVC/SVC: max to 2160P@30fps |
| Video Format | MJPEG: max to 4K@30fps |
| Operating System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color System / Compression | YUY2 / MJPEG / H.264 / H.265 |
| USB Audio | Support |
| USB Video Communication Protocol | UVC 1.1~1.5 |
| UVC PTZ | Support |
| Video Compression | H.264/H.265/MJPEG |
| Video Stream | First Stream, Second Stream |
| First Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 |
| Second Stream Resolution | 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 |
| Video Bit Rate | H264: ~60Mbps MJPEG: ~200Mbps |
| Bit Rate Type | Variable Rate, Fixed Rate |
| Frame Rate | 50hz: 4K max to 30fps, 1080P max to 50fps |
| Frame Rate | 60hz: 4K max to 30fps, 1080P max to 60fps |
| Audio Compression | G711A, AAC |
| Audio Bit Rate | 96K, 128K |
| Protocols | TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| Controls | IR Remote Control Transmitter: OSD; Web Interface: Embedded webpages |
| Power | Source: 12V DC, 2A max; Consumption: 12W max |
| Environmental Conditions | Operating Temperature: -10° to +40°C (14° to 104°F); Storage Temperature: -40° to +60°C (-40° to 140°F); Humidity: 10% to 90%, RHL non-condensing; Altitude: Below 5000 meters |
| Regulatory Compliance (Standards Compliance) | Safety: CE, FCC; Environmental: RoHs, Reach |
| Enclosure | Type: Aluminum and plastic |
| General | Net Dimensions (W, D, H): 14.5cm x 9.8cm x 15cm (5.7" x 3.9" x 5.9"); Shipping Dimensions (W, D, H): 23cm x 23cm x 25cm (9" x 9" x 9.8"); Net Weight: 0.94kg (2.1lbs) approx; Shipping Weight: 2.6kg (5.7lbs) approx |
| Weight | 0.94kg (2.1lbs) approx. |
HDMIThe digital video and audio connector on cameras, monitors and computers. Cable runs are shorter than SDI.
SDISerial Digital Interface. The coaxial video connection used in broadcast. It carries uncompressed video and embedded audio over long cable runs.

- Power adapter and cord
- IR remote control transmitter
- USB 3.0 cable
- Wall bracket kit
- Lens cover
