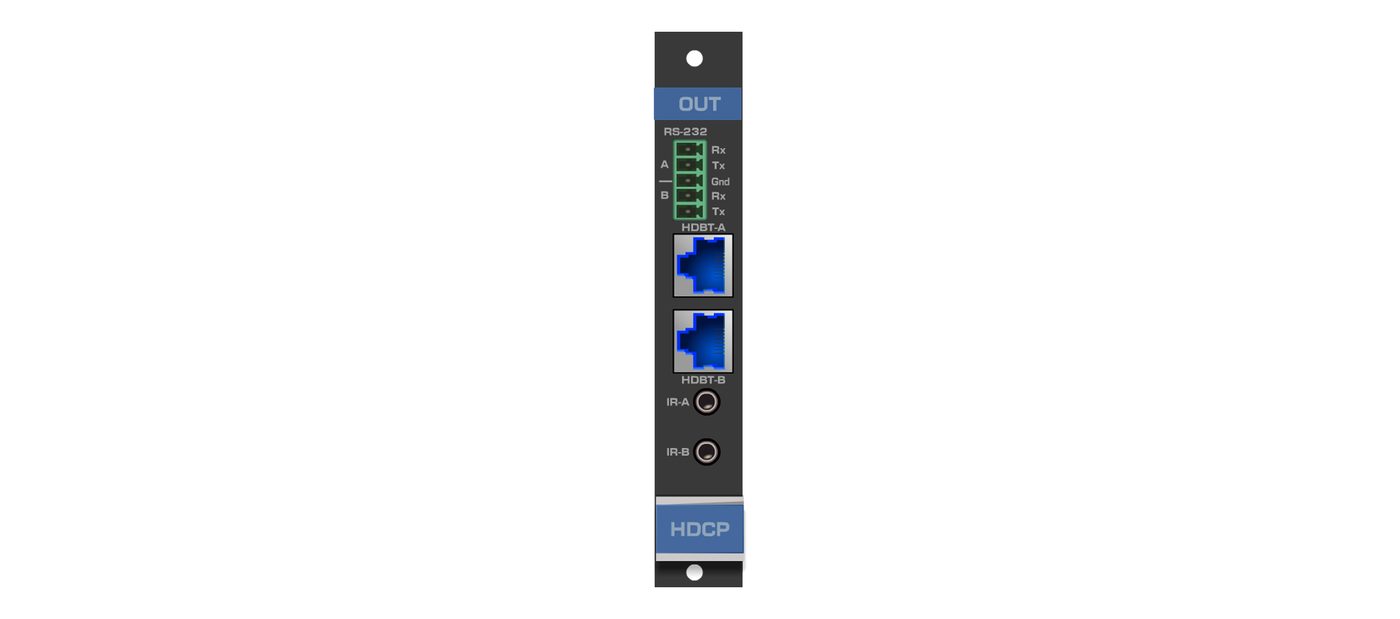

Kramer HDBT7-OUT2-F16 2-Channel 4K60 HDBaseT Output Card

The HDBT7-OUT2-F16 is a two-channel output card for Kramer's VS-1616 Series modular matrix switchers, sending two long-reach HDBaseT signals out to displays or receivers at up to 4K60 4:2:0. Each channel carries bidirectional RS-232 and IR alongside the video, so display and room control travel the same run as the picture.

Range scales with format the same as its input-card counterpart: up to 40m (130ft) at 4K60 4:2:0 or 4K30 4:4:4, extending to 70m (230ft) at 1080p with 12-bit deep color. Kramer's equalization and re-klocking technology hold signal integrity over that distance, and the card is HDTV compatible and HDCP compliant.
