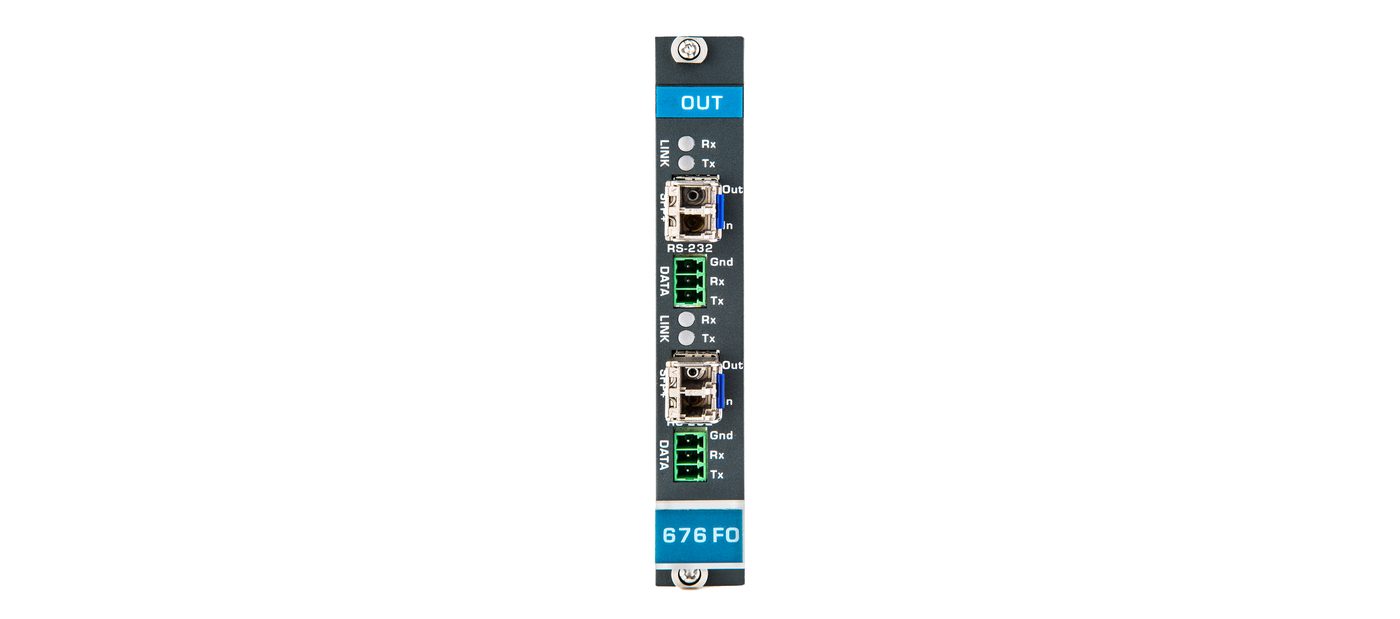

Kramer F676-OUT2-F16 4K60 4:2:0 HDMI over Ultra-Reach MM/SM Fiber Optic Output Card
The Kramer F676-OUT2-F16 is a fiber optic output card for the VS-1616DN-EM modular matrix. It converts routed HDMI and RS-232 into an optical signal and sends it over fiber to a compatible receiver, carrying 4K at 60 Hz (4:2:0) with HDCP 2.2 and 10.2 Gbps of bandwidth, plus LPCM 7.1, Dolby TrueHD and DTS-HD audio.
Optical splitters can send one output to several receivers for the same content on multiple displays, with no distribution amplifier. A multi-mode SFP+ transceiver is included and any Kramer-certified SFP+ fits. Reach is 3 km over OM3 multi-mode and 33 km over OS1 single-mode fiber. The card draws 9 W.
| Outputs | 2 Optical LC; 2 RS-232 |
|---|---|
| Video resolution | Up to 4K@60 (4:2:0) |
| Supports | Fiber Optic |
| Card Type | Fiber optic output card |
| Fiber Type | Multi-mode or single-mode |
| Reach | Up to 33 km ultra-reach extension |
| Control Extension | RS-232 |
| Max resolution | 4096x2160@60Hz 4K@60 (4:2:0) |
| Chassis | VS-1616DN-EM |
| Max Bandwidth | 10.2Gbps |
| Content Protection | HDCP 2.2 |
| Multi-mode Reach | 3km (1.8 miles), OM3 |
| Single-mode Reach | 33km (20.5 miles), OS1 |
