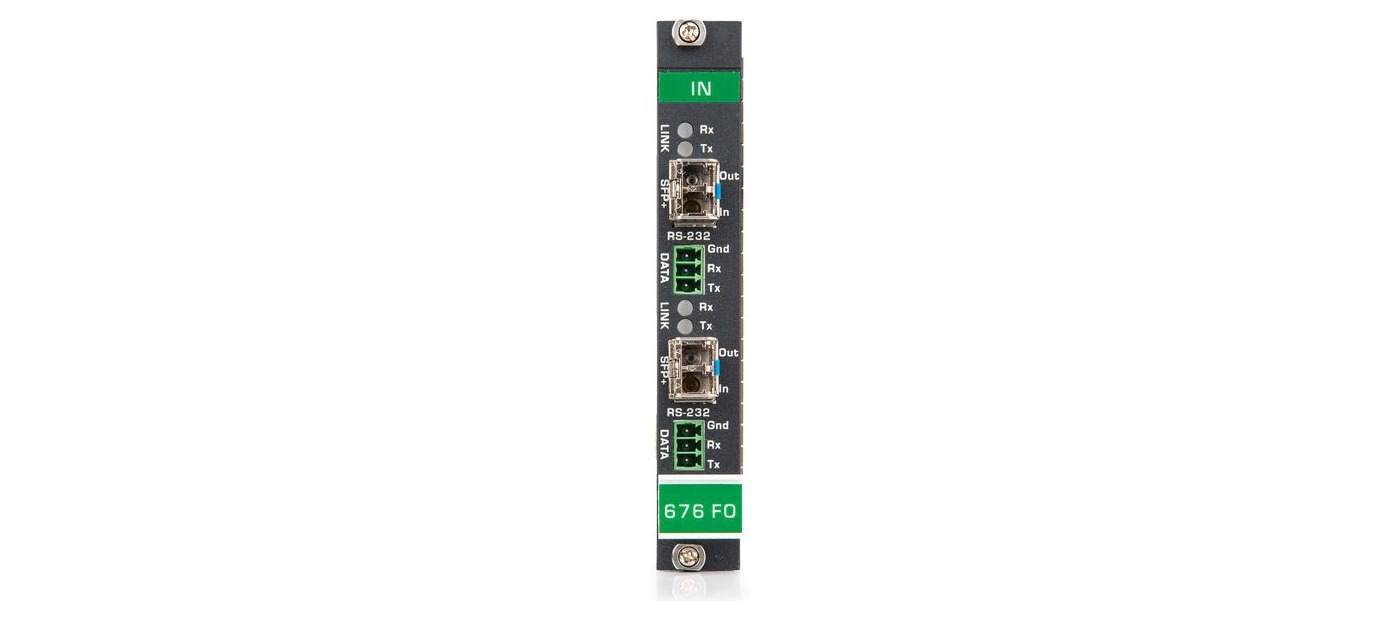

Kramer F676-IN2-F34 4K60 4:4:4 HDMI over Ultra-Reach MM/SM Fiber Optic Input Card
The Kramer F676-IN2-F34 is a fiber optic input card for the VS-34FD modular matrix, receiving 4K at 60 Hz (4:4:4) HDMI over ultra-reach fiber from a compatible transmitter and converting it back to HDMI and RS-232 inside the chassis. It is HDCP 2.2 compliant and supports 18 Gbps, with LPCM 7.1, Dolby TrueHD and DTS-HD audio.
It ships with two multi-mode SFP+ transceivers and accepts any Kramer-certified SFP+ module. Reach is up to 3 km over OM3 multi-mode fiber and 33 km over OS1 single-mode fiber. RS-232 runs at 300 to 115,200 baud, optical link LEDs show status, and the card draws 9 W.
| Inputs | 2 Optical LC; 2 Optical LC |
|---|---|
| Outputs | 2 RS-232; 2 RS-232 |
| Video resolution | Up to 4K@60 (4:4:4) |
| Supports | Fiber Optic |
| Card Type | Fiber optic input card |
| Fiber Type | Multi-mode or single-mode |
| Reach | Up to 33 km ultra-reach extension |
| Control Extension | RS-232 |
| Max resolution | 4K@60 (4:4:4) |
| Chassis | VS-34FD |
| Max Bandwidth | 18Gbps |
| Content Protection | HDCP 2.2 |
| Multi-mode Reach | 3km (1.8 miles), OM3 |
| Single-mode Reach | 33km (20.5 miles), OS1 |
| Included | 2 MM SFP+ transceivers |
