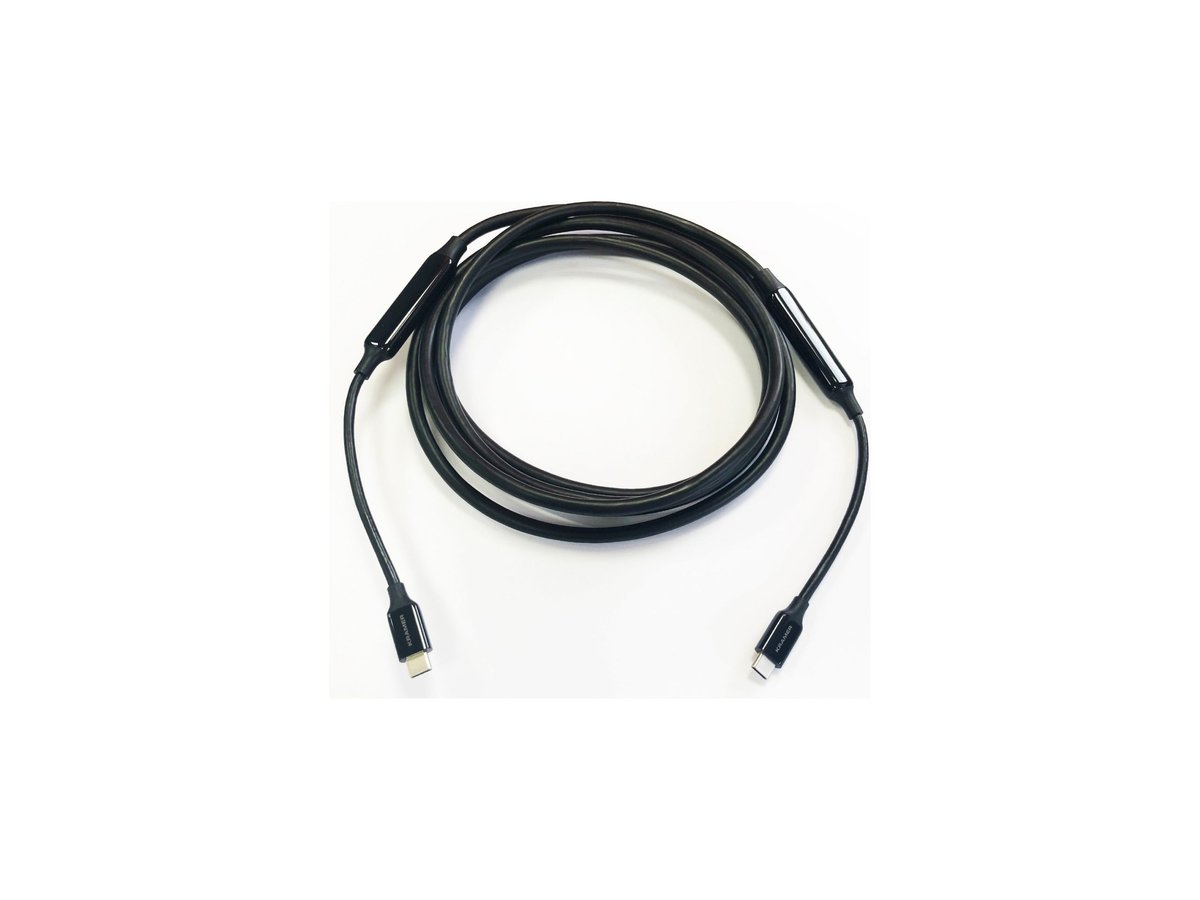

Kramer CA-USB31/CC USB 3.1 Gen 2 Active Extender Cable

A passive USB-C cable is reliable to about a meter; the CA-USB31/CC line builds active signal buffering into the cable itself so a full USB 3.1 Gen 2 link, 10Gbps of data plus 60W of Power Delivery, holds up to 4.7m (15ft). It draws its own operating power from the USB connection (under 2W), so there is nothing extra to plug in.

CC is a male-to-male cable for a straight run between a host and a device; CCE is the male-to-female extender version, for adding reach ahead of an existing USB-C cable rather than replacing it. Both pass DisplayPort Alt Mode video, USB 3.1 SuperSpeed Plus data, USB 2.0, and 60W charging over the same 6.2mm PVC-jacketed cable.

Max Data Rate10 Gbps (USB 3.1 Gen 2)
Power Delivery60W, ≤2W cable power consumption
Connector AUSB 3.1 Gen 2 Type-C male
Connector B (CC)USB 3.1 Gen 2 Type-C male
Connector B (CCE)USB 3.1 Gen 2 Type-C female (extender)
Signal SupportDisplayPort Alt Mode video, USB 3.1 SuperSpeed Plus, USB 2.0, 60W charging
JacketPVC, black, 6.2mm diameter
Cable Bending Radius65mm minimum
PoweringBus-powered, no external supply
