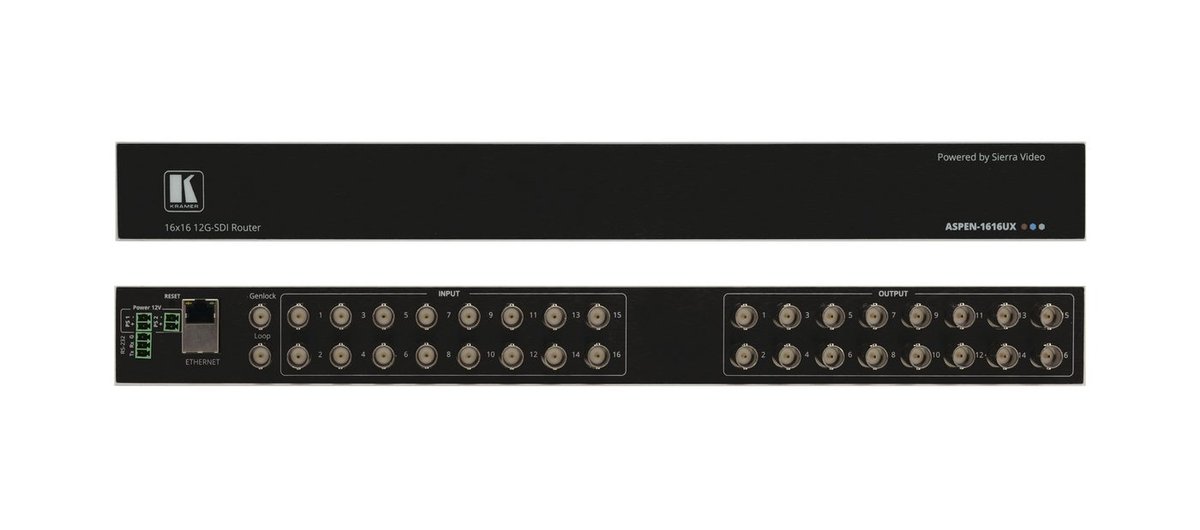

Kramer ASPEN-1616UX 16X16 12G SDI Matrix Switcher

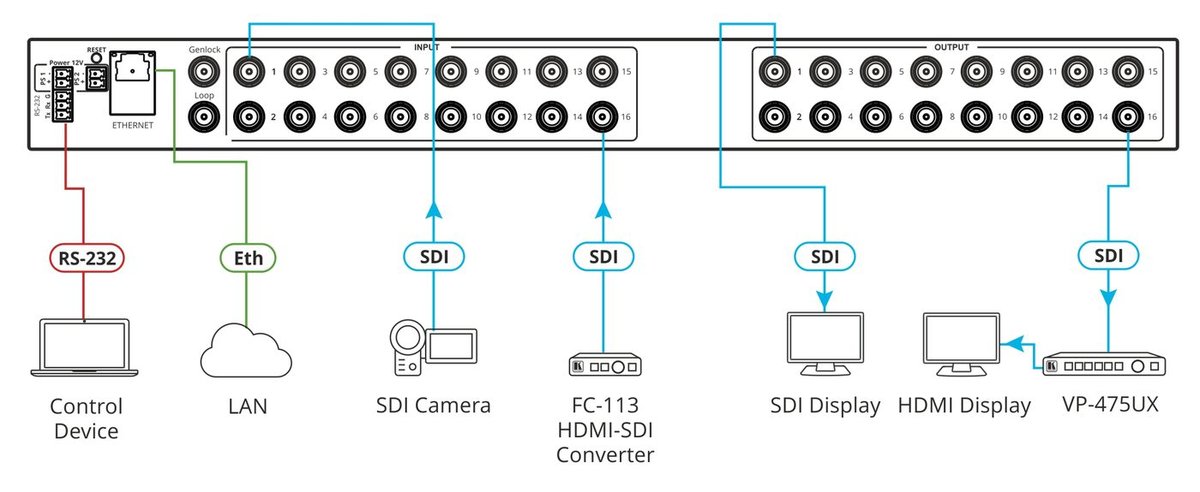

The Kramer ASPEN-1616UX is a 16 by 16 SDI matrix switcher that handles signals up to 12G, which covers 4K60 over a single link. Any of the 16 inputs can be routed to any or all of the 16 outputs.

It operates multi-standard across SDI, HD-SDI, 3G HD-SDI, 6G, and 12G SDI, so a facility running a mix of legacy and current cameras does not need separate routing for each. Genlock support gives clean switching on the reference rather than glitching on the cut. The chassis is only 4 inches deep, which matters in a shallow rack or a mobile unit.
