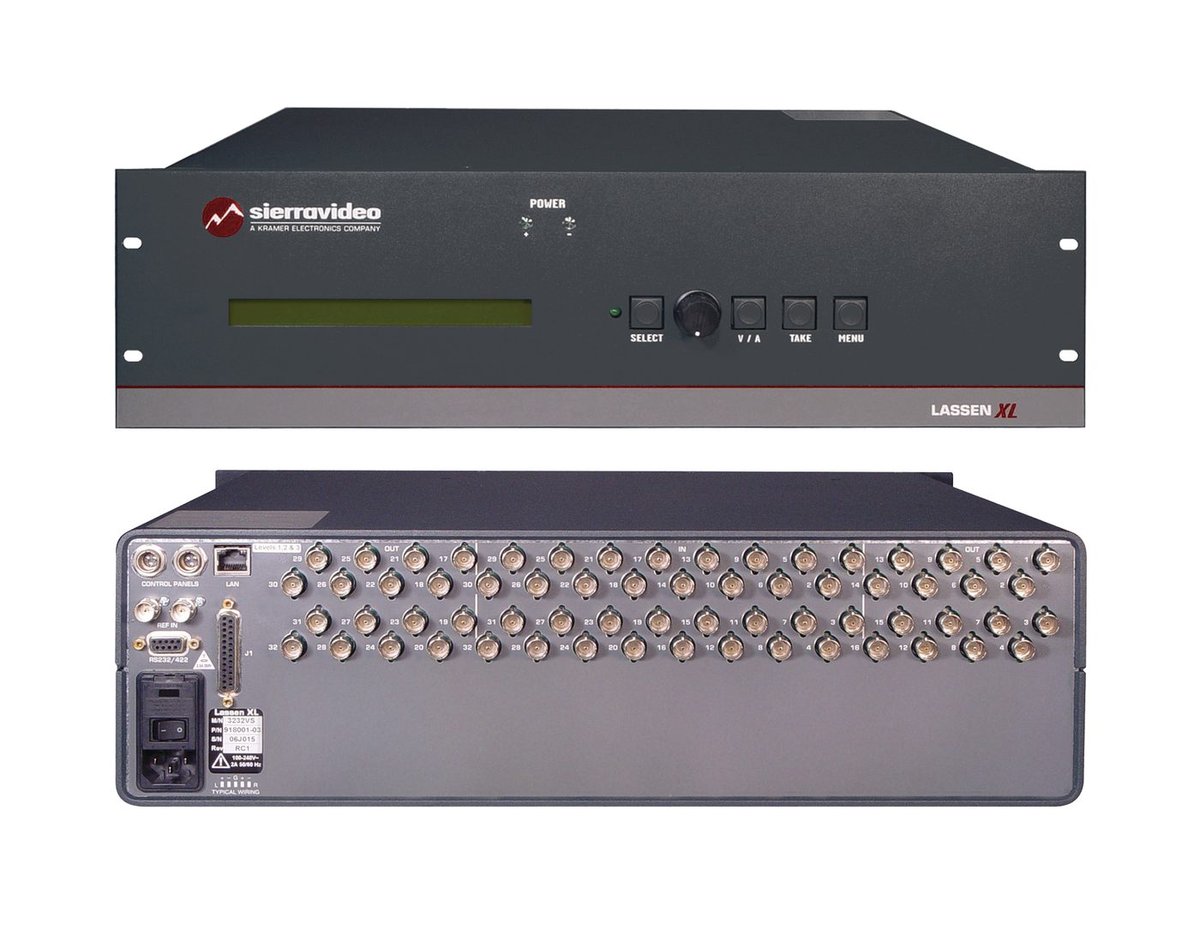

Kramer 3232V-XL 32x32 Composite Video Matrix Switcher (No Audio)

The Kramer 3232V-XL is a 32 by 32 composite video matrix switcher from the Lassen XL series, routing video only with no audio path. Any input can feed any or all outputs at the same time.

Bandwidth is 300MHz at -3dB, giving generous headroom over the composite video it carries. Control is over RS-232, RS-422, or Ethernet, so it can be driven from a room controller or across a network. The rear panel carries one sync connection and an AC power inlet. Specify the 3232VS-XL instead if the routing needs to carry audio alongside the video.
