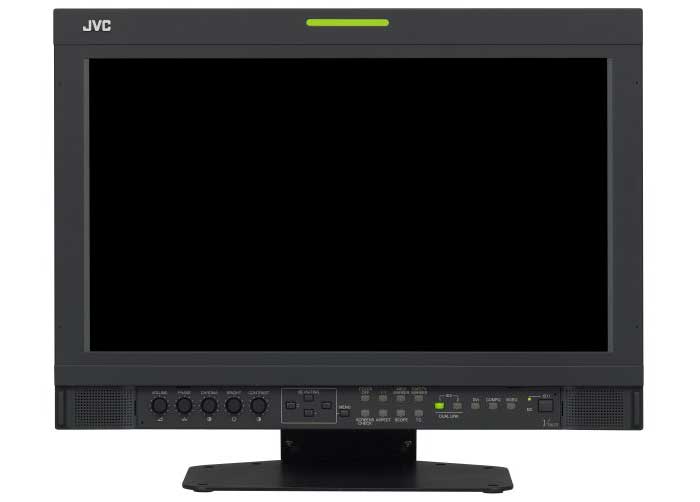

JVC DT-V17G1Z 17-Inch Pro Broadcast LCD Monitor

The DT-V17G1Z is a 17-inch professional broadcast monitor for studio, mobile, and field work, built on a wide-angle IPS panel (178 by 178 degrees) at 1366 x 768. JVC's 10-bit image-processing engine drives the picture for smooth gradation and accurate color when the monitor is used as a shading or confidence reference.

It takes 3G and dual-link HD-SDI signals under SMPTE 424M, 425M, and 372M, and gives the operator a waveform display with over-level warning, a vectorscope with selectable size and position, and an audio level meter for up to 12 channels. LTC and VITC timecode are supported, and the monitor runs from AC or DC for rack or field use.
