Juice Goose iP Series Web Based AC Power Control

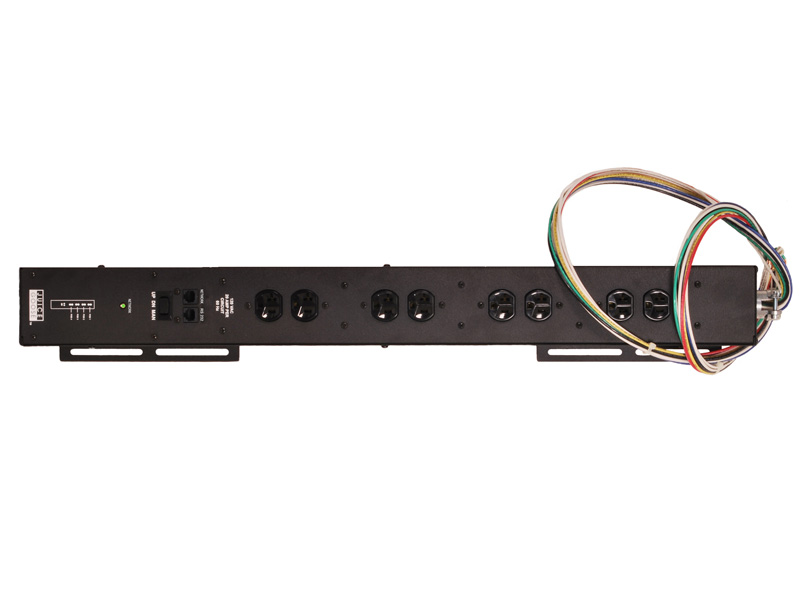

The iP Series is Juice Goose power distribution with an Ethernet port and a web GUI on the front of it. Outlets are grouped into PODs that can be switched and monitored individually, over the browser interface or by RS232, which is what turns a locked-up encoder or a frozen display in an unmanned room into a two minute fix. iP 1515 is the 15 amp rack version with three PODs; iP 1520 is the same panel at 20 amps.
iP 50 puts the same web control into a slim 1.75 inch high, 9.0 inch wide, 9.5 inch deep chassis for equipment closets and credenzas that have no rack to mount into, with replaceable protection. iP PD1-4 is the large end of the range: four separate 20 amp circuits, 80 amps total in one chassis, each independently monitored, with control over HTML, TCP and UDP alongside Ethernet and RS232.
| Type | Network controlled AC power distribution |
|---|---|
| Control | Web GUI over Ethernet, RS232 |
| iP 1515 | 1U rack, 15 A, 3 PODs |
| iP 1520 | 1U rack, 20 A, 3 PODs |
| iP 50 | Slim chassis 1.75 in H x 9.0 in W x 9.5 in D, Ethernet, replaceable protection |
| iP PD1-4 | 4 x 20 A circuits, 80 A total, individual circuit monitoring |
| iP PD1-4 Protocols | HTML, TCP, UDP, Ethernet, RS232 |
