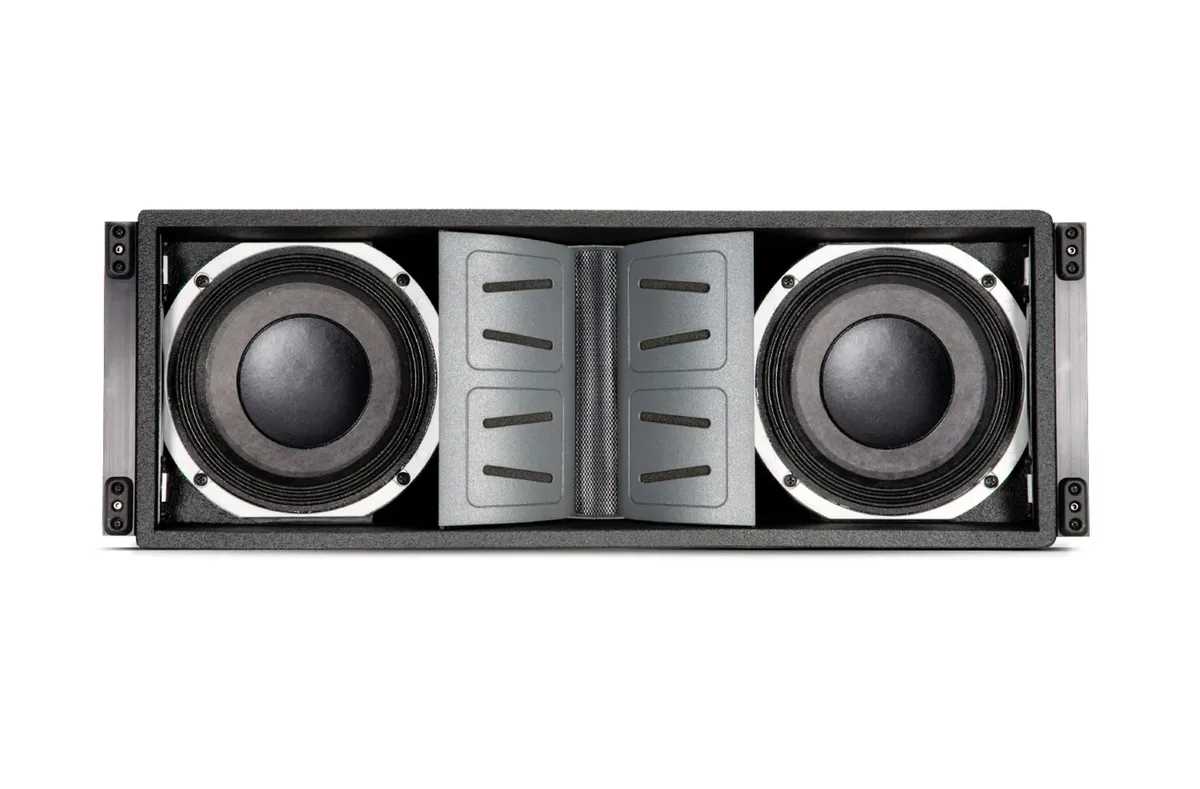

JBL VT4886 Subcompact Passive Three-Way High Directivity Line Array Element
The VT4886 is a subcompact passive three-way high directivity line array element, from the VerTec touring range. Frequency range is 65 Hz - 20 kHz (-10 dB). JBL rates it at 900W.
A true 3-way system, unique to the subcompact category. Highest component density in its class, highest SPL output in its class. Variable curvature vertical (0-15 degrees) or modular, constant curvature horizontal line array.
| Type | Subcompact Passive Three-Way High Directivity Line Array Element |
|---|---|
| Frequency Range | 65 Hz - 20 kHz (-10 dB) |
| Frequency Response | 75 Hz- 18 kHz (+/- 3 dB) |
| Continuous Power Rating | 900W |
| Horizontal Coverage Angle | 110 degrees nominal (averaged 250 Hz - 16 kHz) (-6 dB) |
| Manufacturer Part Number | VT4886 |
| Construction | Low frequency diffraction absorber eliminates cavity resonance and cabinet edge diffraction effects |
