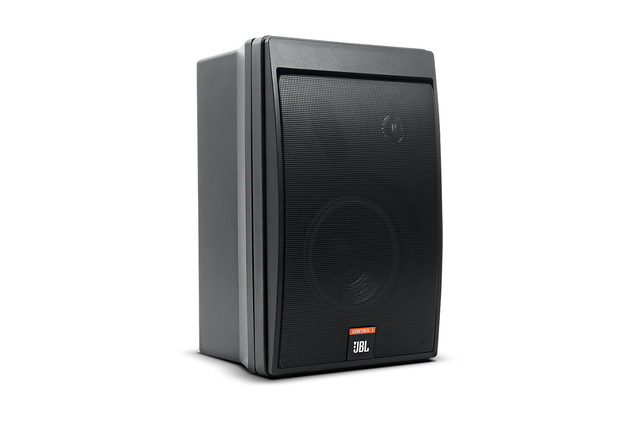

JBL Professional JBL Control 5 Two-way compact control monitor loudspeaker

The Control 5 is a compact wide-range monitor intended to be the main sound source in a small room. A 165 mm woofer and a 25 mm tweeter cross at 3 kHz in a moulded polypropylene structural-foam cabinet with a shielded magnet structure, so it can sit near a screen.

Power capacity is 175 W pink noise with an integral protection network, sensitivity 89 dB, and maximum output 111 dB continuous. Note it is a 4 ohm cabinet. Terminals are spring-loaded, the grille is zinc-plated steel, and there are quarter-inch-20 accessory attachment points on the rear - no bracket is supplied. An external amplifier is required.

Type	Two-way compact control monitor loudspeaker
Impedance	4 ohms
Power capacity	175 W pink noise with integral protection network
Maximum SPL (1 m)	111 dB continuous, 117 dB peak
Sensitivity	89 dB SPL, 1 W @ 1 m
Frequency response (+/-3 dB)	75 Hz - 20 kHz
Crossover frequency	3 kHz
Drivers	165 mm (6.5-inch) LF; 25 mm (1-inch) HF
Enclosure	Polypropylene structural foam, shielded magnet structure
Grille	Zinc-plated steel
Input connectors	Spring-loaded terminals

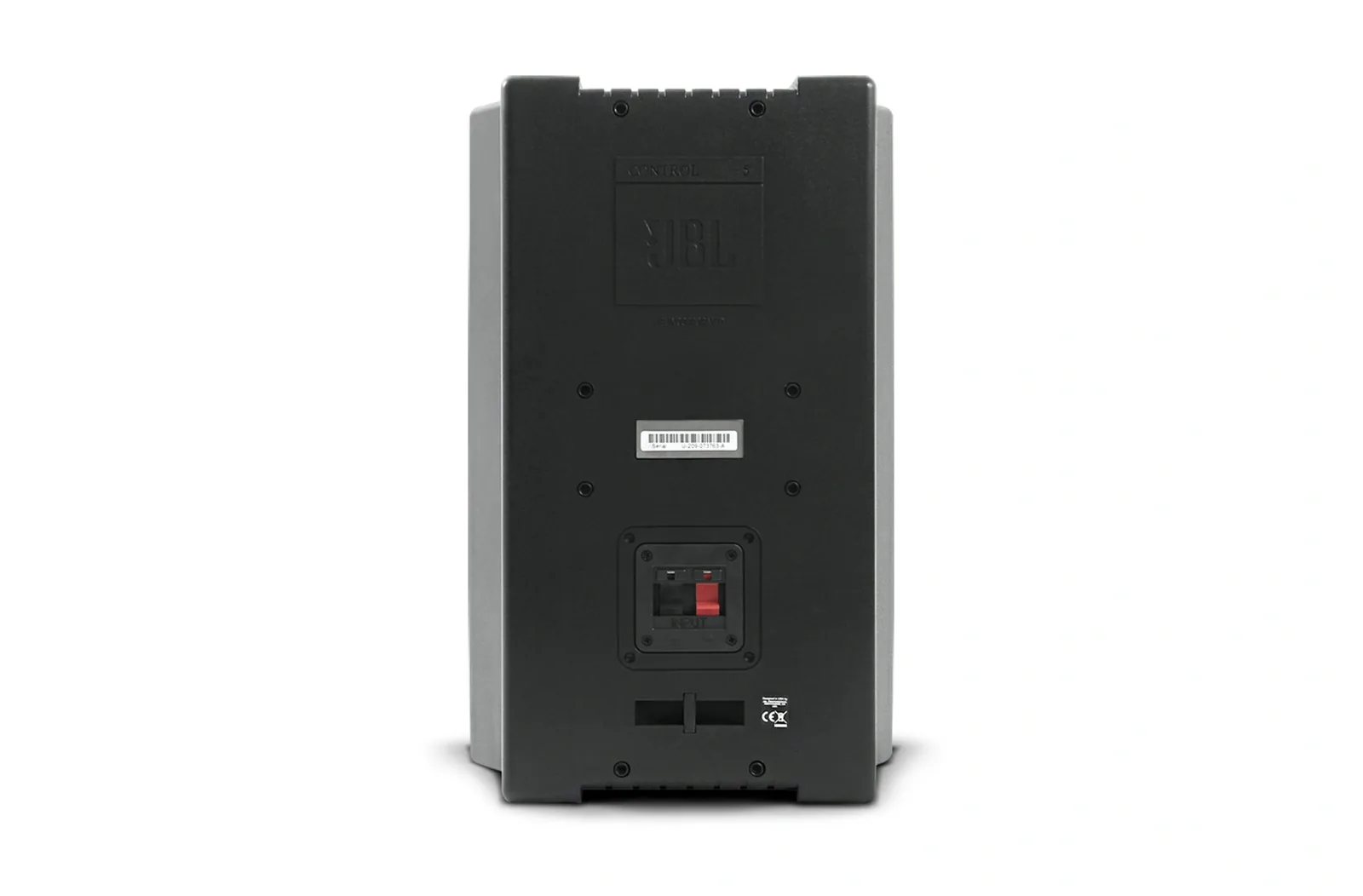

Mounting	Quarter-inch-20 attachment points on rear; no bracket included
Dimensions (H x W x D)	387 x 251 x 229 mm (15.25 x 9.875 x 9 in)
Net weight (each)	4.5 kg (10 lb)
