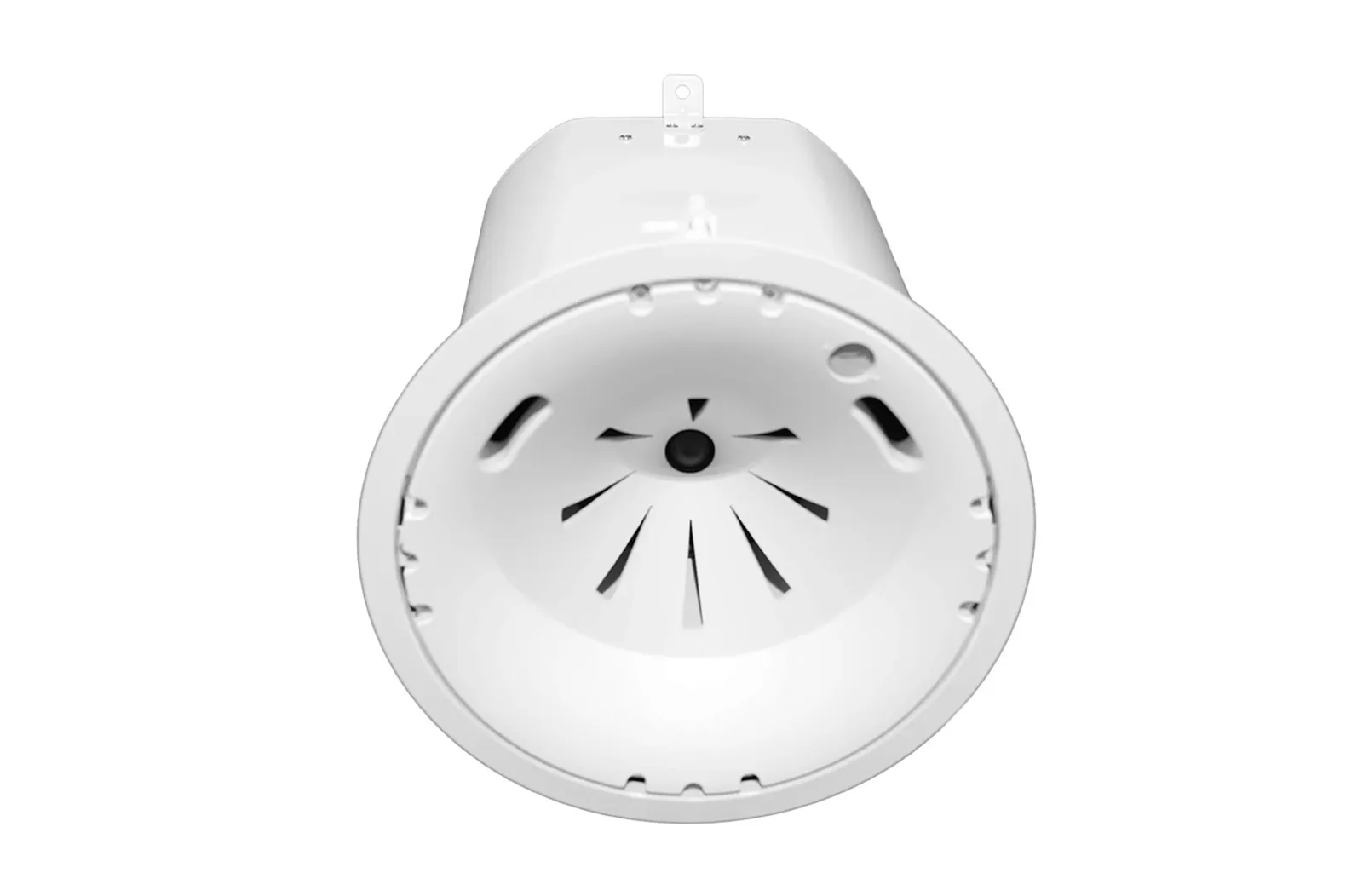

JBL Control 47HC High Ceiling Loudspeaker

The Control 47HC is a high ceiling loudspeaker, from the Control Contractor 400 Series. Transducers are LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in). Nominal coverage is 75 degrees conical, constant directivity. Frequency range is 55 Hz - 17 kHz. JBL rates it at IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs. Maximum SPL at 1 m is 112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap).

Transformer taps are 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass. Connections are Two removeable locking 2-pin connectors with screwdown terminals. In the box: C-rings, tile rails, paint shield, cutout template, Grille.
