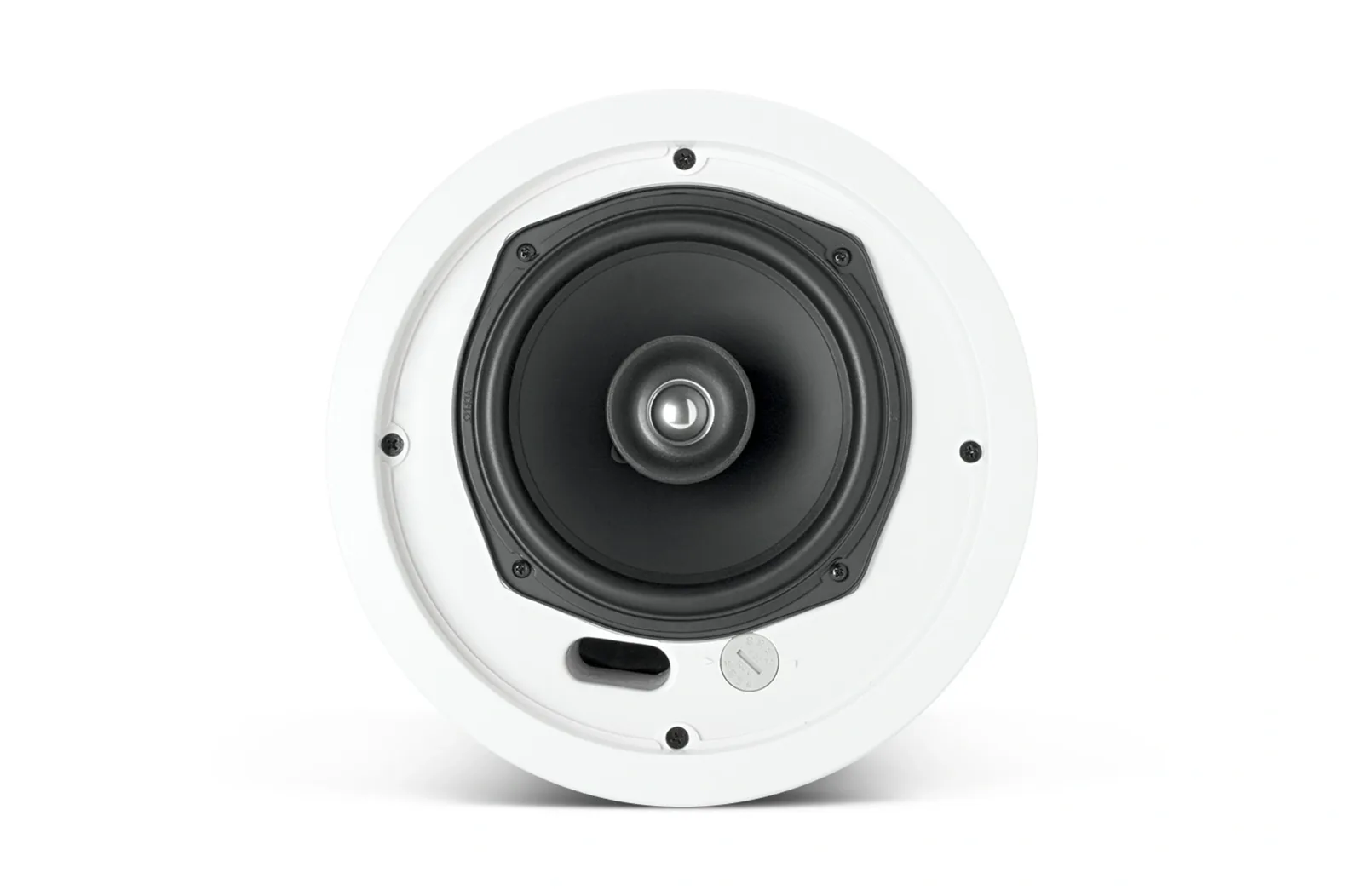

JBL Professional JBL Control 26C Coaxial in-ceiling loudspeaker

The Control 26C is the 6.5-inch in-ceiling model: a coaxially mounted woofer with a butyl rubber surround and a 19 mm titanium-coated diffraction-loaded tweeter, covering 110 degrees conical. It handles 150 W continuous program and makes 107 dB in low impedance, which is enough for music at a real level rather than background only.

A formed steel blind-mount backcan is included, so it is suitable for air-handling spaces per UL1480 and UL2043 out of the box. Ceiling cutout is 220 mm; a template, a C-shaped support backing plate and two tile support rails are supplied. Termination is a removable 4-pin locking connector. Price shown is per speaker.

Type	Coaxial in-ceiling loudspeaker
Impedance	16 ohms
Power rating	150 W continuous program; 75 W continuous pink noise (low-Z direct)
Maximum SPL (1 m)	107 dB low impedance (113 dB peak)
Sensitivity	89 dB, 1 m / 1 W
Frequency range	75 Hz - 20 kHz
Coverage angle	110 degrees conical
Drivers	165 mm (6.5-inch) LF; 19 mm (0.75-inch) titanium-coated HF
Input connectors	Removable 4-pin locking connector with screw-down terminals
Backcan	Formed steel blind-mount, included
Plenum use	Yes, backcan included; UL1480 / UL2043
Ceiling cutout	220 mm (8.75 in) diameter
Dimensions (H x diameter)	210 x 252 mm (8.3 x 9.9 in)
Net weight (each)	2.7 kg (6 lb)
