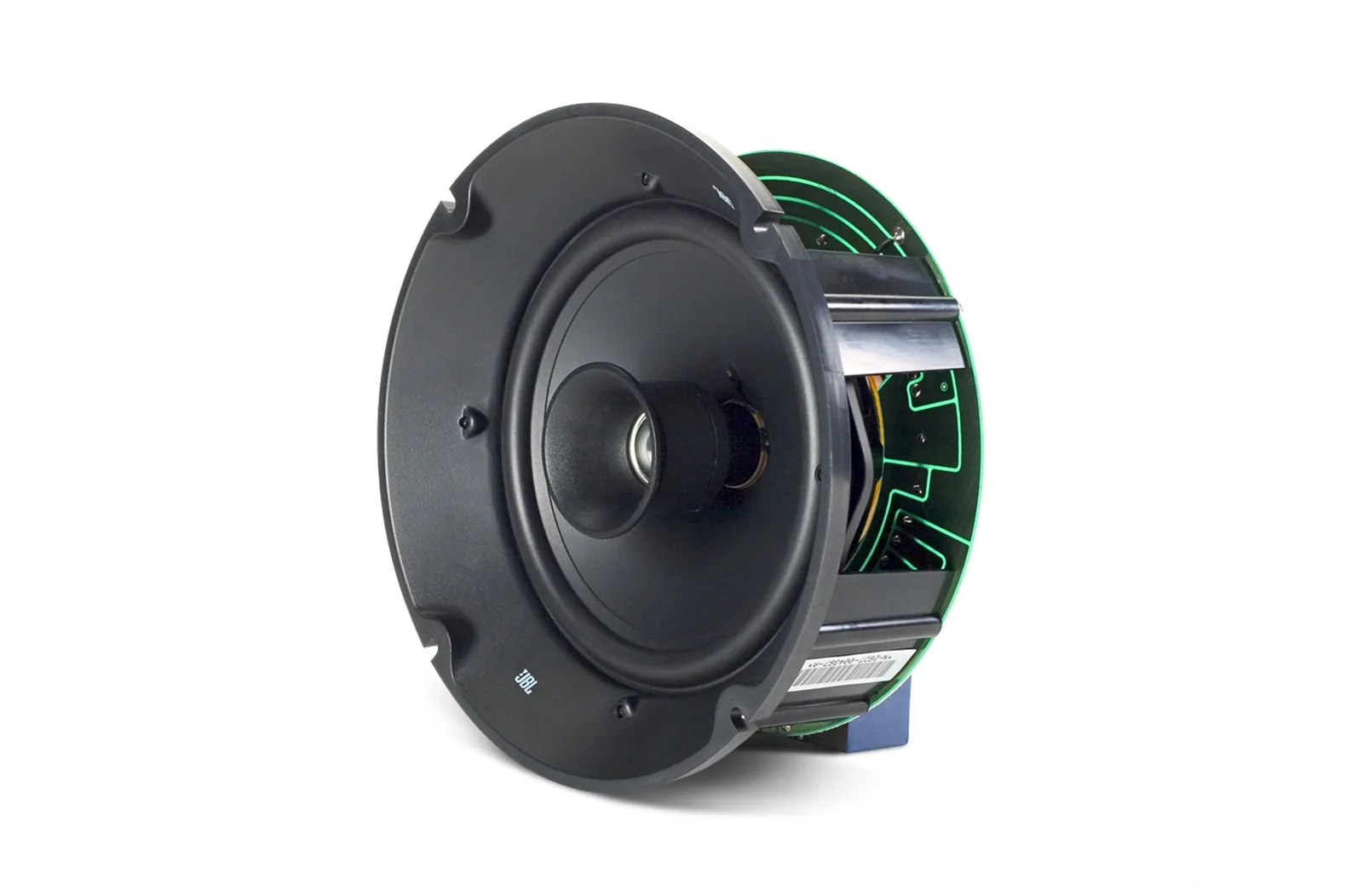

JBL Control 26-DT 6.5" Ceiling Loudspeaker Transducer Assembly

The Control 26-DT is a 6.5" ceiling loudspeaker transducer assembly, from the Control Contractor installed range. Transducers are LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (3/4 in). Nominal coverage is 90 degrees conical. Frequency range is 80 Hz - 20 kHz. JBL rates it at See transformer taps. Maximum SPL at 1 m is 106 dB (top 70V/100V tap).

Transformer taps are 60W, 30W, 15W (& 7.5W @ 70V). Connections are Screw locking barrier strip for bare wire. Net weight is 4.2 kg (10 lb).
