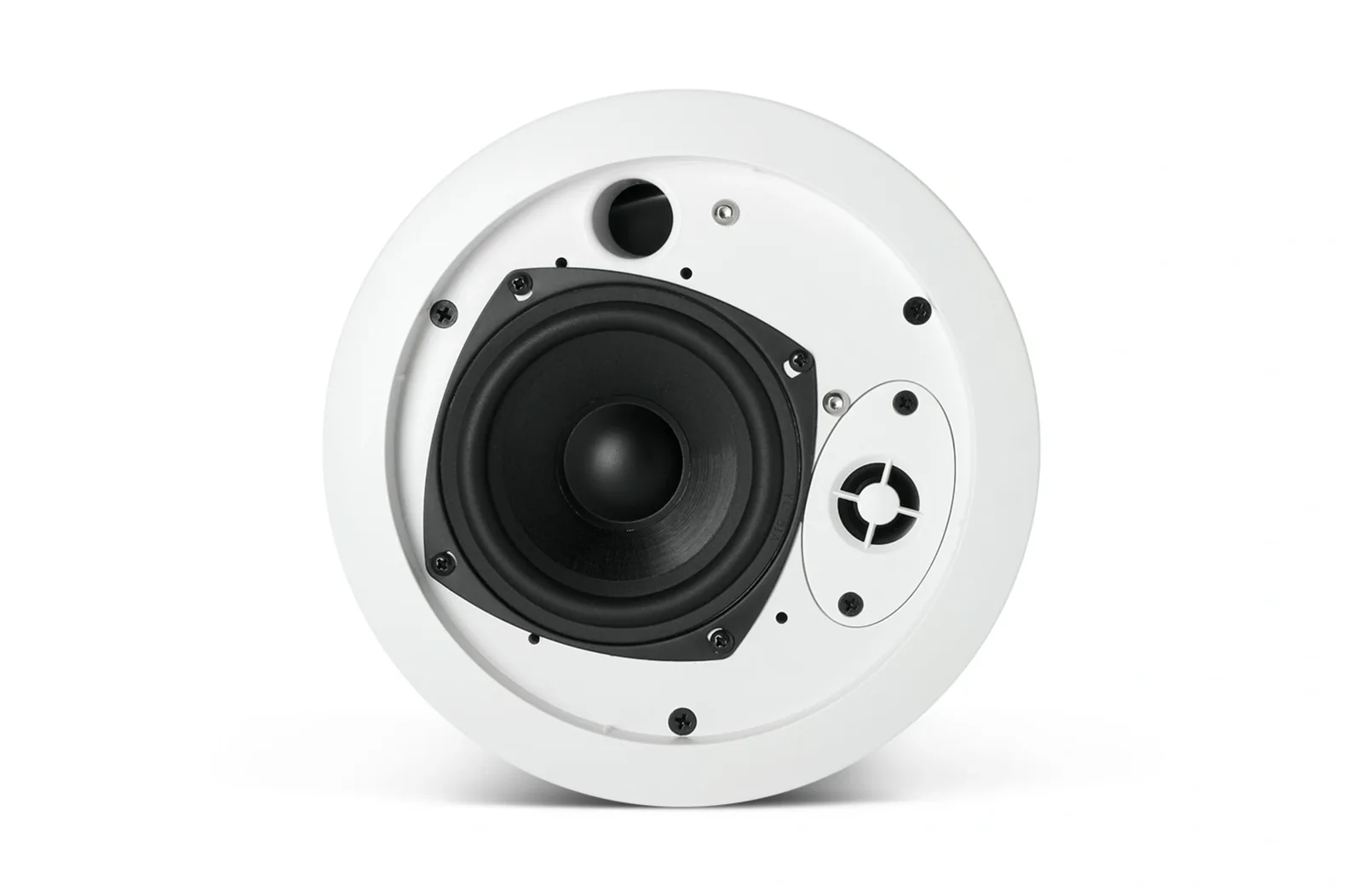

JBL Control 24CT Micro Background Music Ceiling Speaker

The Control 24CT Micro is a background music ceiling speaker, from the Control Contractor installed range. Transducers are LF Driver: 115 mm (4.5 in) HF Driver: 12 mm (0.5 in). Nominal coverage is 150 degrees conical. Frequency range is 85 Hz - 25 kHz. JBL rates it at See transformer taps. Maximum SPL at 1 m is 94 dB (top 70V/100V tap).

Transformer taps are 9W, 4W, 2W, 1W (& 0.5 W taps @ 70V). Connections are Screw-down terminals. In the box: C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard.
