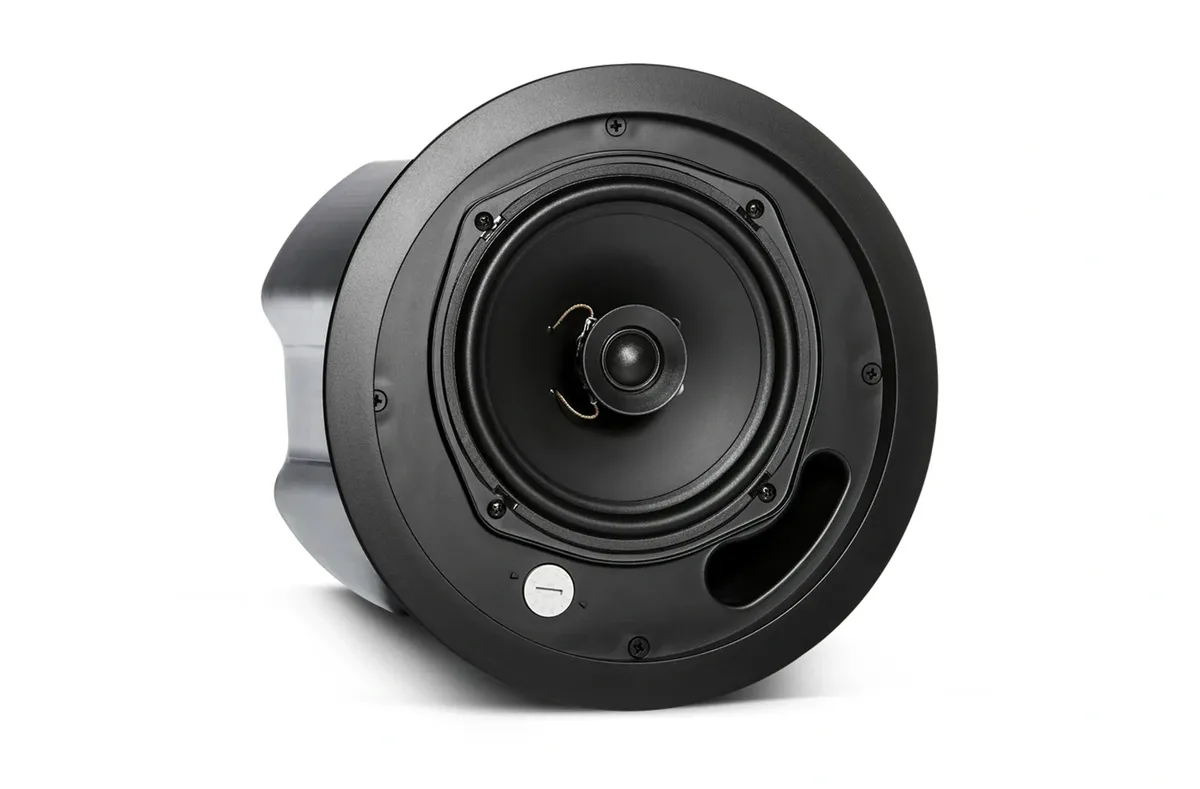

JBL Control 16C/T Two-Way 6.5" Coaxial Ceiling Loudspeaker

The Control 16C/T is a two-way 6.5" coaxial ceiling loudspeaker, from the Control Contractor installed range. Transducers are LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (3/4 in). Nominal coverage is 110 degrees conical. Frequency range is 62 Hz - 20 kHz. JBL rates it at IEC System Long-Term Ratings (low-Z direct): 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise (200W peak), 100 hr. Maximum SPL at 1 m is 108 dB (low-impedance, 116 dB peak) 106 dB (top 70V/100V tap).

Transformer taps are 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only). Connections are Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2). It measures 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth). Net weight is 3.4 kg (7.4 lbs, one speaker).
